Default Coolant bleed screw broken, new one wont fit. How to fix leak?

The bleed screw on the hose that goes over the radiator broke and I bought a new one only to find out that it does not screw in like it should. Its the right part from a land rover part dealer, i think the hose might be busted. Would a silicone adhesive work to keep the screw in place?

Also, the screw pretty much broke in half and I am pretty sure the other half is floating around some where in the coolant hoses. What potential damage could this do and how would I go about finding and removing this?
__________________

2001 Discovery II LE, 131K
Reply With Quote
  #2
Old 01-25-2012, 09:10 PM
Savannah Buzz's Avatar
Super Moderator

Join Date: Jan 2011
Location: Savannah Georgia
Posts: 16,290
Default

Here's a map of the cooling system. If it went back toward the engine, it may have settled by gravity to the top of the thermostat. Might stay on top, might get sucked inside during cold start up bypass operation. If carried forward to radiator, would fall to bottom on driver side, unlikely that it could pass through a tube side to side. So to get it out of the radiator, could remove radiator and invert it, draining out what is normally the top hose, while applying reverse flush water from the "lower outlet hose connection". This will also get out some scale and junk in the radiator.

Missing part could also find its way to the water pump maybe. The pump clearance is tight, so might scour or bind up pump. This is probably pretty far out on a limb, compared to other possibilities.

We had a post within the last two weeks with parts list and photos of how to fab your own bleeder T (motivated by same problem). Dirt cheap, compared to dealer price for the assembly.

RTV is a maybe for a temp repair, but it will be a bandaid.
Attached Thumbnails
Coolant bleed screw broken, new one wont fit. How to fix leak?-land%252520rover%252520thermostat%252520005-jpg   Coolant bleed screw broken, new one wont fit. How to fix leak?-p1030596-jpg
Attached Files
File Type: pdf d2 cooling layout.pdf (952.8 KB, 40 views)
__________________
Free download of RAVE and Rover shop & owner manuals (LR3 and older) in pdf: http://landroverforums.com/forum/gen...ing-lr3-57978/
Workshop/electrical/owners/overhaul/ECU for Discovery, Range Rover, Freelander, LR3, and older models


Cooling System Problems: http://landroverforums.com/forum/gen...verview-51034/

Last edited by Savannah Buzz; 01-25-2012 at 10:07 PM.
Reply With Quote
  #3
Old 01-25-2012, 10:06 PM
Savannah Buzz's Avatar
Super Moderator

Join Date: Jan 2011
Location: Savannah Georgia
Posts: 16,290
Default

See this post for a DIY write up with pix http://landroverforums.com/forum/dis...e2/#post293862
__________________
Free download of RAVE and Rover shop & owner manuals (LR3 and older) in pdf: http://landroverforums.com/forum/gen...ing-lr3-57978/
Workshop/electrical/owners/overhaul/ECU for Discovery, Range Rover, Freelander, LR3, and older models


Cooling System Problems: http://landroverforums.com/forum/gen...verview-51034/
Reply With Quote
  #4
Old 01-25-2012, 11:41 PM
Junior Member

Join Date: Jul 2011
Posts: 20
Default

well i attempted to glue the screw back on with silicon adhesive sealant, we'll see how well/long that works. I ordered the t-hose with the new design for the bleeder screw that supposedly doesn't fail as often. paid an arm and a leg with the expedited shipping.

I saw all the posts about how unreliable the bleeder screw is. I wonder if anyone has a piece of that still floating around in the system some where? I think i might just leave it be. I'm not even sure that it's in there.

By the way, what is that second picture of?
__________________

2001 Discovery II LE, 131K

Last edited by Evan5291; 01-25-2012 at 11:43 PM.
Reply With Quote
  #5
Old 01-26-2012, 05:09 AM
Savannah Buzz's Avatar
Super Moderator

Join Date: Jan 2011
Location: Savannah Georgia
Posts: 16,290
Default

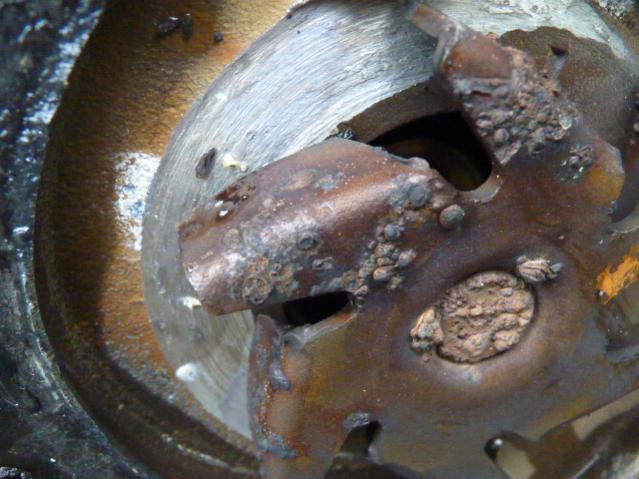

A scored water pump.
__________________
Free download of RAVE and Rover shop & owner manuals (LR3 and older) in pdf: http://landroverforums.com/forum/gen...ing-lr3-57978/
Workshop/electrical/owners/overhaul/ECU for Discovery, Range Rover, Freelander, LR3, and older models


Cooling System Problems: http://landroverforums.com/forum/gen...verview-51034/
Reply With Quote
  #6
Old 01-26-2012, 09:12 AM
Disco Mike's Avatar
Administrator

Join Date: Apr 2006
Location: Denver, Colorado
Posts: 25,512
Send a message via Skype™ to Disco Mike
Default

Where is your bleed screw located, on a black plastic tee or molded onto the hose?
Last I checked, Rover does not sell a replacement screw so I am questioning if the screw you bought is the correct one. BMW sells the correct screw, just need to reuse your old o-ring and you can get the replacement in plastic or brass.
__________________
Mike
Retired service manager. Member of the Solihull Society, NCLR club, SCLR and Santa Barbara 4 Wheelers.

99 D2, 3" lift, CDL with a Detroit and T.T. lockers, H.D. axles, 4:11 gears, Custom front and rear bumpers, sliders, Warn winch, and 5 HID's.

To Download the RAVE Manual, follow this link http://www.landroverresource.com/

Rover Radio issues or IPOD Adapters http://home.valornet.com/splacket/index.htm



Need Parts?
paulgrant@mac.com, or 203-770-1699
willtillery@roverguy.com, or 434-251-9331
Paul PTSchram 260-804-0458
PM Marty(Drillbit)[url]http://www.landroversonly.com/forums...o=newpm&u=5940
British Parts of Utah, http://www.bputah.com/
Lucky8, http://lucky8llc.com/
Reply With Quote
  #7
Old 01-26-2012, 09:56 AM
Junior Member

Join Date: Jan 2012
Location: Amarillo, TEXAS
Posts: 23
YourAmarilloRealtor
Default

Same problem on my D2! I ordered the full assembly and new hose for both sides! Paid about $180 total installed!
__________________

2004 D2
TerraFirma HD 3" Springs and Shocks
285/75r16 GOODYEAR MTR's
TerraFirma front and rear Heavy Duty Bumpers
Full length Safety Devices roof rack
(4) Swivel Recovery Eyes
Black PlastiDip wheels
Reply With Quote
  #8
Old 01-27-2012, 06:46 AM
Junior Member

Join Date: Jul 2011
Posts: 20
Default

they sell a replacement bleed screw on Rovers North.

I have the hose where the bleed screw is molded into the center of the hose right above the radiator. I just ordered the hose where it is in the plastic joint at the top of the T. apparently the one I have has a high fail rate so they redesigned it.
__________________

2001 Discovery II LE, 131K
Reply With Quote
  #9
Old 01-27-2012, 09:41 AM
Disco Mike's Avatar
Administrator

Join Date: Apr 2006
Location: Denver, Colorado
Posts: 25,512
Send a message via Skype™ to Disco Mike
Default

Get rid of that hose, "TODAY", that hose has such a huge failure rate, Rover came out with a up-graded replacement hose 7 years ago to prevent people from over heating and loosing their engine when that hose fails and they all do.
New replacement hose is about $78 and you should replace the t/stat along with flushing out the Dexcool and switching to something like Peak to help your engine.
__________________
Mike
Retired service manager. Member of the Solihull Society, NCLR club, SCLR and Santa Barbara 4 Wheelers.

99 D2, 3" lift, CDL with a Detroit and T.T. lockers, H.D. axles, 4:11 gears, Custom front and rear bumpers, sliders, Warn winch, and 5 HID's.

To Download the RAVE Manual, follow this link http://www.landroverresource.com/

Rover Radio issues or IPOD Adapters http://home.valornet.com/splacket/index.htm



Need Parts?
paulgrant@mac.com, or 203-770-1699
willtillery@roverguy.com, or 434-251-9331
Paul PTSchram 260-804-0458
PM Marty(Drillbit)[url]http://www.landroversonly.com/forums...o=newpm&u=5940
British Parts of Utah, http://www.bputah.com/
Lucky8, http://lucky8llc.com/
Reply With Quote
  #10
Old 10-19-2013, 12:57 PM
Junior Member

Join Date: Aug 2013
Location: New York, NY
Posts: 4
Jeffrey Bruno Jeffrey Bruno
Default

This just happened to me as well. Does anyone know the thread size of the coolant bleeder screw on the plastic molded T type ? Thanks !
