Default Head Gasket Question

I'm leaking coolant out of the back side of the p/s head looks to be precisely between the head and the block. No smoke, but it leaks pretty good. I have to fill the reservoir up once every other day, and I only drive about 20 miles round trip. It's a constant drip while the engine is running and at operating temperature.

I'm assuming it's the head gasket, but I've never seen one blow out where it doesn't leak into the oil or the cylinder. I'm assuming that this is possible, though? are there any other possible solutions?
Reply With Quote
  #2
Old 01-23-2012, 08:59 AM
Junior Member

Join Date: Aug 2011
Posts: 20
Default

I had the same problem with my car and i did whole head gasket job. It was really leaking from head gasket and also if it is closer to the driver's side, it might be water pump seal. In my case those two were constantly leaking and all the time there were drops under the car and I had to add at least half of the bottle every 3-4 days.
__________________


Land Rover Discovery II 2001, Color - blue, Interior - tan, Mileage - 85K, Name - Blue Stallion
Reply With Quote
  #3
Old 01-23-2012, 09:16 AM
Disco Mike's Avatar
Administrator

Join Date: Apr 2006
Location: Denver, Colorado
Posts: 21,602
Send a message via Skype™ to Disco Mike
Default

There are many ways a head gasket can fail,
coolant leak to outside of the engine
coolant leak into the crank case
oil leak to the outside of the engine
exhaust leak to the outside of the engine
exhaust leak into the coolant system
Plus any other combination, in other word you don't need to have coolant to have a failed head gasket.
__________________
Mike
Retired service manager. Member of the Solihull Society, NCLR club, SCLR and Santa Barbara 4 Wheelers.

99 D2, 3" lift, CDL with a Detroit and T.T. lockers, H.D. axles, 4:11 gears, Custom front and rear bumpers, sliders, Warn winch, and 5 HID's.

To Download the RAVE Manual, follow this link http://www.landroverresource.com/

Rover Radio issues or IPOD Adapters http://home.valornet.com/splacket/index.htm



Need Parts?
paulgrant@mac.com, or 203-770-1699
willtillery@roverguy.com, or 434-251-9331
Paul PTSchram 260-804-0458
PM Marty(Drillbit)[url]http://www.landroversonly.com/forums...o=newpm&u=5940
British Parts of Utah, http://www.bputah.com/
Lucky8, http://lucky8llc.com/
Reply With Quote
  #4
Old 01-23-2012, 09:21 AM
Member

Join Date: Oct 2011
Location: Chicago
Posts: 62
Default

Quote:
Originally Posted by Disco Mike View Post
There are many ways a head gasket can fail,
coolant leak to outside of the engine
coolant leak into the crank case
oil leak to the outside of the engine
exhaust leak to the outside of the engine
exhaust leak into the coolant system
Plus any other combination, in other word you don't need to have coolant to have a failed head gasket.
Thanks, Mike.

Looks like I'm replacing a head gasket!

Good thing I parked it last week then. It's amazing....68k on the clock and a blown head gasket....gotta love discos!
Reply With Quote
  #5
Old 01-23-2012, 09:30 AM
Disco Mike's Avatar
Administrator

Join Date: Apr 2006
Location: Denver, Colorado
Posts: 21,602
Send a message via Skype™ to Disco Mike
Default

That is about the normal time for them to first fail, along with plug wires and the front drive shaft.
__________________
Mike
Retired service manager. Member of the Solihull Society, NCLR club, SCLR and Santa Barbara 4 Wheelers.

99 D2, 3" lift, CDL with a Detroit and T.T. lockers, H.D. axles, 4:11 gears, Custom front and rear bumpers, sliders, Warn winch, and 5 HID's.

To Download the RAVE Manual, follow this link http://www.landroverresource.com/

Rover Radio issues or IPOD Adapters http://home.valornet.com/splacket/index.htm



Need Parts?
paulgrant@mac.com, or 203-770-1699
willtillery@roverguy.com, or 434-251-9331
Paul PTSchram 260-804-0458
PM Marty(Drillbit)[url]http://www.landroversonly.com/forums...o=newpm&u=5940
British Parts of Utah, http://www.bputah.com/
Lucky8, http://lucky8llc.com/
Reply With Quote
  #6
Old 01-23-2012, 06:14 PM
Senior Member

Join Date: Nov 2011
Posts: 246
Default

Quote:
Originally Posted by Disco Mike View Post
That is about the normal time for them to first fail, along with plug wires and the front drive shaft.
It seems that between 70-90k miles everything except the seats needs to be rebuilt or replaced.
__________________
2004 Discovery SE - TerraFirma 3" Lift w/ TF Steering stabilizer, TF rock slider w/ trees, TF diff guards, TF wheel spacers, Nitto Trail Grappler MT 285-65-18 LT tires, BajaRack w/OEM ladder, Tactical Rovers front winch bumper w/ Engo 9000S

**Awaiting install: Fox 2.0 Resivoir Adj shocks, RTE adj Panhard, TF HD Steering rods, Columbia Overland 1" spacers

Addiction fed by: Justin @ Lucky 8 LLC & Eric @ Tactical Rovers

Tampa, Florida
Reply With Quote
  #7
Old 01-23-2012, 06:59 PM
Savannah Buzz's Avatar
Senior Member

Join Date: Jan 2011
Location: Savannah Georgia
Posts: 7,398
Default

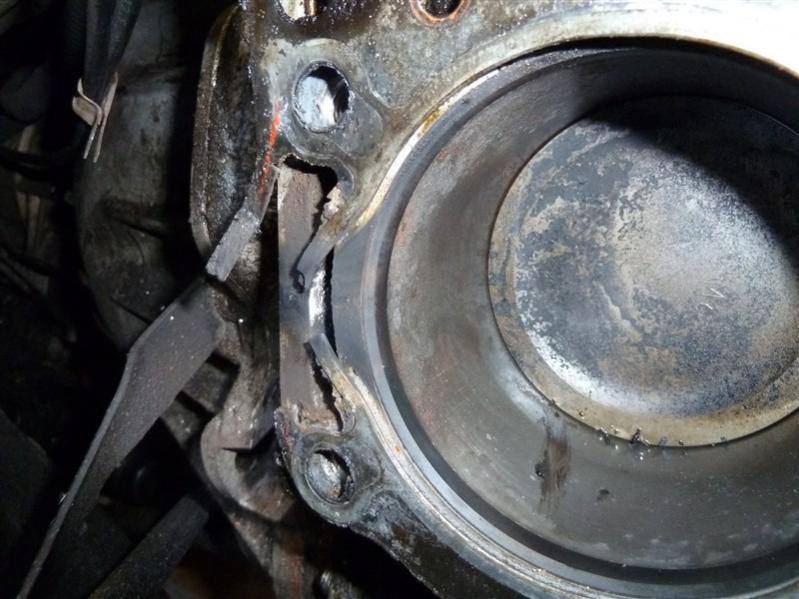

here's a pix of the back of head leak
Attached Images
File Type: jpg hg rear 2.jpg (68.8 KB, 13 views)
__________________
RAVE tech manuals available at http://www.landroverresource.com/ (download) or http://macassemble.com/lrm/ (view on line)

D1 GEMS ECU manuals http://landroverforums.com/forum/dis...-manual-47986/

D2 Bosch ECU manuals http://landroverforums.com/forum/dis...manuals-48009/


97 Disco 1 178K "Frankenstien" brought back to life with parts from the dead ones

Shade Tree Mechanic Second Class -
Reply With Quote
  #8
Old 01-23-2012, 08:08 PM
G Reeves's Avatar
Senior Member

Join Date: Sep 2011
Location: Baltimore MD
Posts: 101
Default

Quote:
Originally Posted by Disco Mike View Post
That is about the normal time for them to first fail, along with plug wires and the front drive shaft.
My cylinder HG went at 55K
__________________
new PWR St pump, KN panel filter, magnaflow back box, coil conversion, 90k service, HG done at 55k, Okib' pads front and rear

Member of North Wales Land Rover Club
LR Scrutineer

90k + ticking mile

2003 Disco 2 SE
2002 Volvo V70XC... SWMBO
