Yesterday my friend (who owns a transmission shop and is a LR specialist) and I did the transmission service. JLR (as well as most other manufacturers) claim the transmission is filled for life. ZF recommends the fluid to be changed every 50k-75k miles. I personally think the ZF-recommended intervals are what should be followed over what JLR recommends. Also, this procedure is is applicable to any vehicle that has a ZF 8HP transmission, not just the Defender. I have documented the process, and hopefully this thread will help anyone who wants to tackle this on their own. It is pretty straightforward, and anyone with basic mechanical knowledge will be able to do this service no problem.

I bought the OEM ZF 8HP service kit from FCP Euro for $250.00. It comes with the pan/filter assembly, 7L of ZF Lifeguard 8 ATF, new bolts, and a new fill plug.

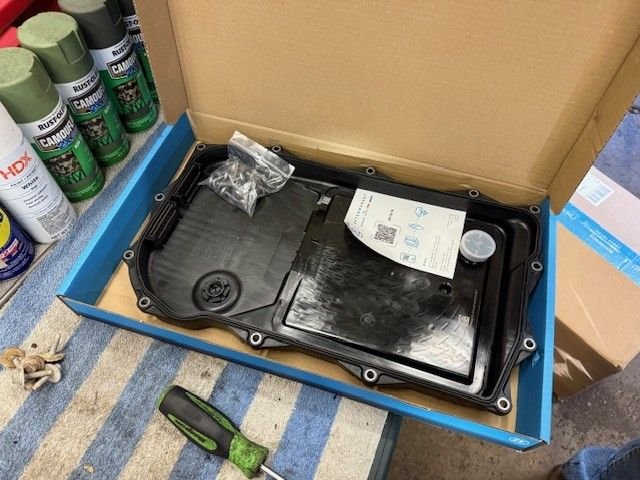

OEM ZF 8HP pan/filter assembly. Includes new bolts and fill plug.



7L of ZF Lifeguard 8 ATF. You will only use around 4.5L-5L after the second fill.


Getting to the transmission is pretty straightforward, however having access to a lift will make things a thousand times easier. You need to remove the skid plates as well as some of the sound deadening panels.



Original transmission pan


Once everything is removed, you'll have access to the transmission. The first thing you'll want to do is loosen (not remove) the fill plug with an 8mm Allen key. The fill plug is on the passenger side of the transmission. This will allow the fluid to drain faster.

Next, you will remove the drain plug with a 10mm Allen key and let it drain out. Once it is drained, you can remove the pan/filter assembly. You will need a Torx T40 to remove the bolts. There is one bolt behind the transmission mount on the aft of the transmission that is hard to get to. We were able to use a large screwdriver to move the transmission mount a few mm to fit the wrench through. Once removed, let the ATF drip from the mechatronics until it stops. We then cleaned up around where the gasket seals to the transmission with brake clean, just to ensure the new pan will seal properly.

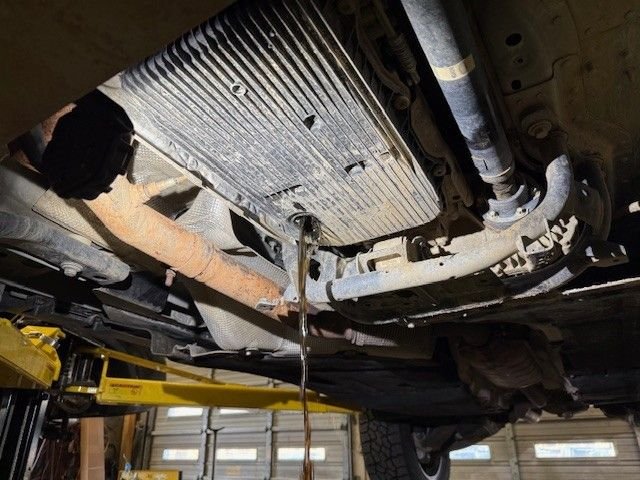

Letting the ATF drain. Color looked good, and the ATF was clean after 50k miles.

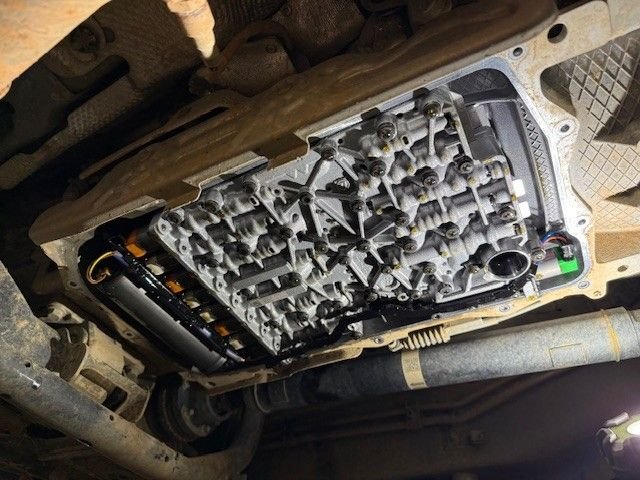

The mechatronics/valve body after all of the ATF has dripped off.

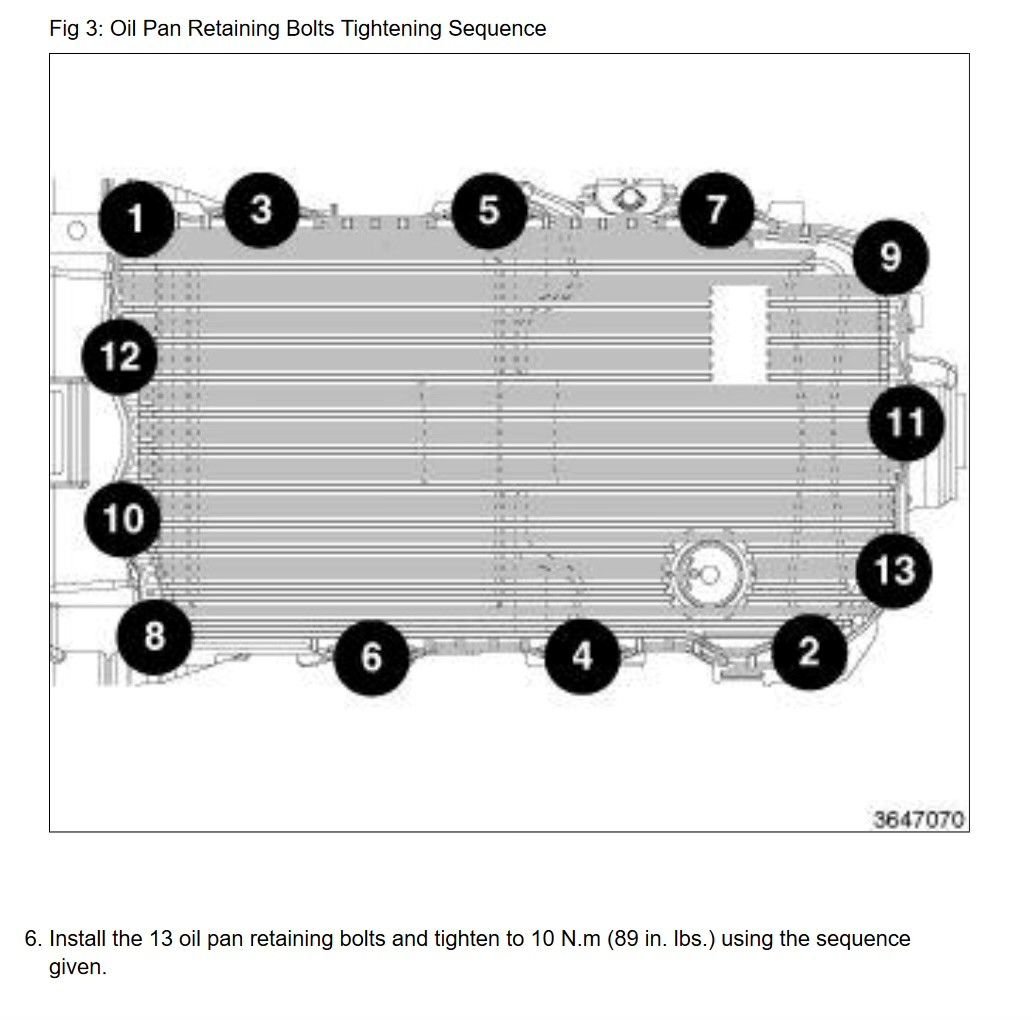

Before installing the new pan, lubricate the filter O-ring with fresh ATF. Then you will install the new pan and bolt it down in order using the diagram below:




Now that the pan/filter assembly is properly torqued down, you will fill it until it starts to leak from the fill plug. You will add around 4L in this initial fill. Once it is filled, install the fill plug, but don't torque it down.

Next, you'll want to start the car and get the transmission up to temperature and let the fluid circulate. The 8HP retains heat, so if the car was driven right before the service, it won't take much time at all to get to operating temperature. After a few minutes, the transmission will get up to temperature. You will then remove the fill plug with the engine still running and fill the transmission until it starts leaking. Then install the drain plug and torque it down.

There was some metal shavings on the magnets in the original pan. That is to be expected, and nothing looked out of the ordinary. I am sending the old ATF to Blackstone Labs for analysis, and will update this thread once I get the results.

On the drive home the transmission was shifting perfectly. It felt a little smoother than it did before the service, but nothing major.



Metal shavings on the magnets in the original pan.

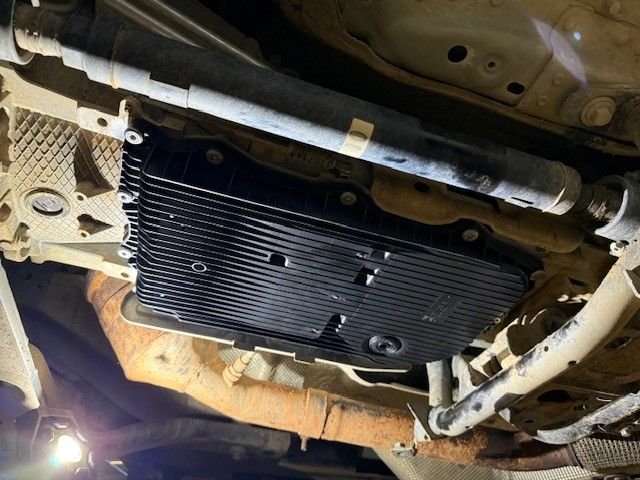

New pan installed.


I also had my rear differential fluid replaced. I had this done at 34k miles back in June of 2024. We mixed the OEM locking differential fluid with Ford Motorcraft XL3 friction modifier. This is an additive that is formulated for clutch-type LSDs. We mixed this in with the OEM fluid at the last differential service. Purchased two quarts of the OEM locking diff fluid and drain plug from my dealer's parts department. The fluid was quite dark after 16k miles. But no glitter in the fluid. After the fluid refill, the clunking is less noticeable, but still there. As I've said in other posts, rear differential clunking is normal on all LRs that have it. I still think the fluid change intervals should be every 20k-30k miles instead of the recommended 63k.



Rear e-diff fluid was quite dark after 16k miles. No glitter in the fluid, but the intervals should really be halved.


In all, I think this is something everyone should be doing on their Defender (and any vehicle with the ZF 8HP transmission). We all know the 8HP is pretty much bulletproof, but I'd rather spend $250.00 and a couple hours of my time every 50k miles to keep my transmission in the best shape than to ignore it and potentially have issues down the road.



Schedule of service for the L663 has the transmission at 105,000 miles or 10 years. ZF schedule is what I'm following. ~80,000 miles or earlier.

Just did my rear e-diff again at 79,000. First one about 50,000.

Transmission is up next.

One more reason to own a GAP tool. Need to know the transmission oil temps for the service.

Cool pics. Giving me the kick up the **** I need to get it done. Parts are in my garage.



Super helpful post with great pictures. Thank you, @CincyRovers !



One more reason to opt for the P300 over the P400

I aborted effort at my transmission on P400 today. Will come back to it tomorrow.

I need some low profile Torx T40 to gain access to three of the bolts for the pan. They are obscured by the transmission cross member.

LR instructions are to remove this and support the transmission with a jack. I’m not wanting to do that so am shopping for a low profile Torx set.

The special tool LR recommend for the fill plug is not needed on the P400. It’s easily accessible. A special tool for the awkward bolts on the pan would have been better advice

Also, the angle of the transmission in the P400 means either adjusting the final fill by 350ml (if the car is on a horizontal lift) or getting the pan level in a slightly sloped vehicle.

I’m doing the latter.


The awkward bolts under the cross member P400


Also be sure to shake the ATF before filling. Very important.



The transmission cross member on the P400 is the same as it is on the P300. We were able to get screws 9 and 13 in the diagram out with no issues. There was just enough flex in the cross member that were able to use a very large screwdriver to pry it a couple mm in order to get the socket through to remove screw 11. The cross member went back to where it was once we were done with prying it out of the way.

We didn’t use a GAP tool, but the scanner (which was a $10k scan tool) my friend had worked. Pretty much anything that isn’t the most basic scan tool will do the trick.



I assume you’re correct on the same cross member. The position of the transmission differs slightly. It’s angled on the P400. The instructions are different.

either way. I can’t fathom removing that behemoth. Can’t visualize it bending. I got a low profile wrench in there. Worked great.



Does the Defender require any sort of system reset when changing the transmission fluid? I haven't needed to change on my Defender yet, but just changed on an older BMW X1 with a ZF transmission that I just bought and they call for a system reset of the software adaptations for transmission fluid change and also for transfer case fluid change. But BMW classifies those as "lifetime fluids" so maybe different as they're not figuring consumers will service it?



No, it doesn’t need to have an adaptation reset.



I applaud you guys. It's so nice to see DIY mechanics working on these cars. I do too. And IMO there is no reason not to!



Got the results back from Blackstone Labs for the original Lifeguard 8 ATF. Overall everything looked good, other than the insolubles, which were right at the 0.1% mark. Based on my results, I'd recommend to have this serviced between 50k-60k instead of the ZF-recommended 50k-75k miles.
