1996 Disco security system? What is this wire
#1
1996 Disco security system? What is this wire
I have been trying to track what I am almost certain a security system issue. I have the entire car and dash dismantled in order too reach all electrical systems and wiring. I have a Rave workshop manual with no wiring diagrams that i have found. I also have a 98 LE with basically the same equipment to refer visually.
What I know at this point.
The car will run fine briefly(2-3 minutes tops) and other times it will shut off and/or not crank or start. A security system relay is heard clicking under the dash during all times of the malfunction. As soon as it stops it will crank and start.
My drivers side door locks but the sill button does not move when using the two button control. All of the doors will lock if the sill button is depressed manually.
I hear relay click under the driver seat when I press the switch on the drivers door but not the other doors or Bonnet switch.

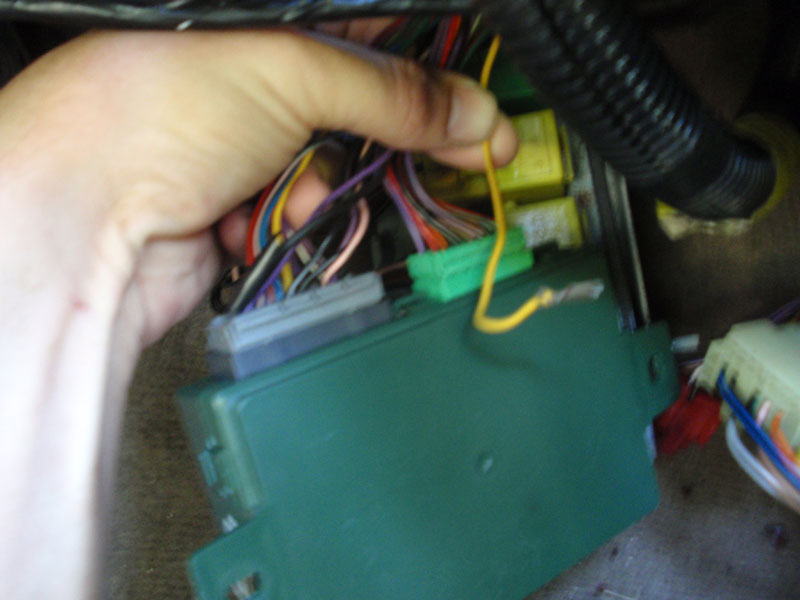

Before I start testing door switches and such I need to identify an extra yellow wire that is bundled with the other wiring that is routed through the AMR 4885 ECU. It has a pin connection attached to it that looks as though it would fit in one of the two wire connectors on the ECU but I do not see a wire that corresponds to it on the 98 to know where it goes.
If anyone knows of a good color coded wiring diagram in existence that would be of great appreciation.
If I need to go to the stealer-ship to have the system reset I want to make sure all of my connections are good first.
What I know at this point.
The car will run fine briefly(2-3 minutes tops) and other times it will shut off and/or not crank or start. A security system relay is heard clicking under the dash during all times of the malfunction. As soon as it stops it will crank and start.
My drivers side door locks but the sill button does not move when using the two button control. All of the doors will lock if the sill button is depressed manually.
I hear relay click under the driver seat when I press the switch on the drivers door but not the other doors or Bonnet switch.
Before I start testing door switches and such I need to identify an extra yellow wire that is bundled with the other wiring that is routed through the AMR 4885 ECU. It has a pin connection attached to it that looks as though it would fit in one of the two wire connectors on the ECU but I do not see a wire that corresponds to it on the 98 to know where it goes.
If anyone knows of a good color coded wiring diagram in existence that would be of great appreciation.
If I need to go to the stealer-ship to have the system reset I want to make sure all of my connections are good first.
Last edited by primesuspect; 10-09-2010 at 04:09 PM.
#3
I think I remember once before we determined the yellow antenna wire just hangs there looking out of place.
#5
There is one yellow wire still connected on both the 96 and the 98. This is a second larger gauge than the antenna. No matter I have decided to pull the engine and put it in the 98. I will soon have a 96 with a 4" lift going to the crusher if no one wants it.
Will
1/2 96 SE
1/2 98 LE soon to be resurected
Will
1/2 96 SE
1/2 98 LE soon to be resurected
#6
#7
#8
#10
Well, Brandon is a little closer than me, but I have a car hauler and 24 hours to spare...
Maybe I could get it and stop through Dallas to see my in-laws on the way home..might swap you the suspension for some gas $$. That is, if the OP is serious about letting it go. I will make the drive to keep it from the crusher.. Plus with no engine, I might see what I can fit in there... Heard talk of a turbo 300D going in nicely...
Maybe I could get it and stop through Dallas to see my in-laws on the way home..might swap you the suspension for some gas $$. That is, if the OP is serious about letting it go. I will make the drive to keep it from the crusher.. Plus with no engine, I might see what I can fit in there... Heard talk of a turbo 300D going in nicely...
