Just installed a relocation kit today. Not completely yet. The other side fender is in the sun and its too hot to jump in the bay. Kingsborne Wire installed with bright yellow color which is now dirty. I did an installation video and will post tomorrow.
I did the last Ultraguage reading before installation.
Here is how the bright yellow cable looks like.
Cheers!
I did the last Ultraguage reading before installation.
Here is how the bright yellow cable looks like.
Cheers!
#2
Looking sharp gerry
Just installed a relocation kit today. Not completely yet. The other side fender is in the sun and its too hot to jump in the bay. Kingsborne Wire installed with bright yellow color which is now dirty. I did an installation video and will post tomorrow.
I did the last Ultraguage reading before installation.
Here is how the bright yellow cable looks like.
Cheers!
I did the last Ultraguage reading before installation.
Here is how the bright yellow cable looks like.
Cheers!
#5
#6
Follow up about Misfire Codes

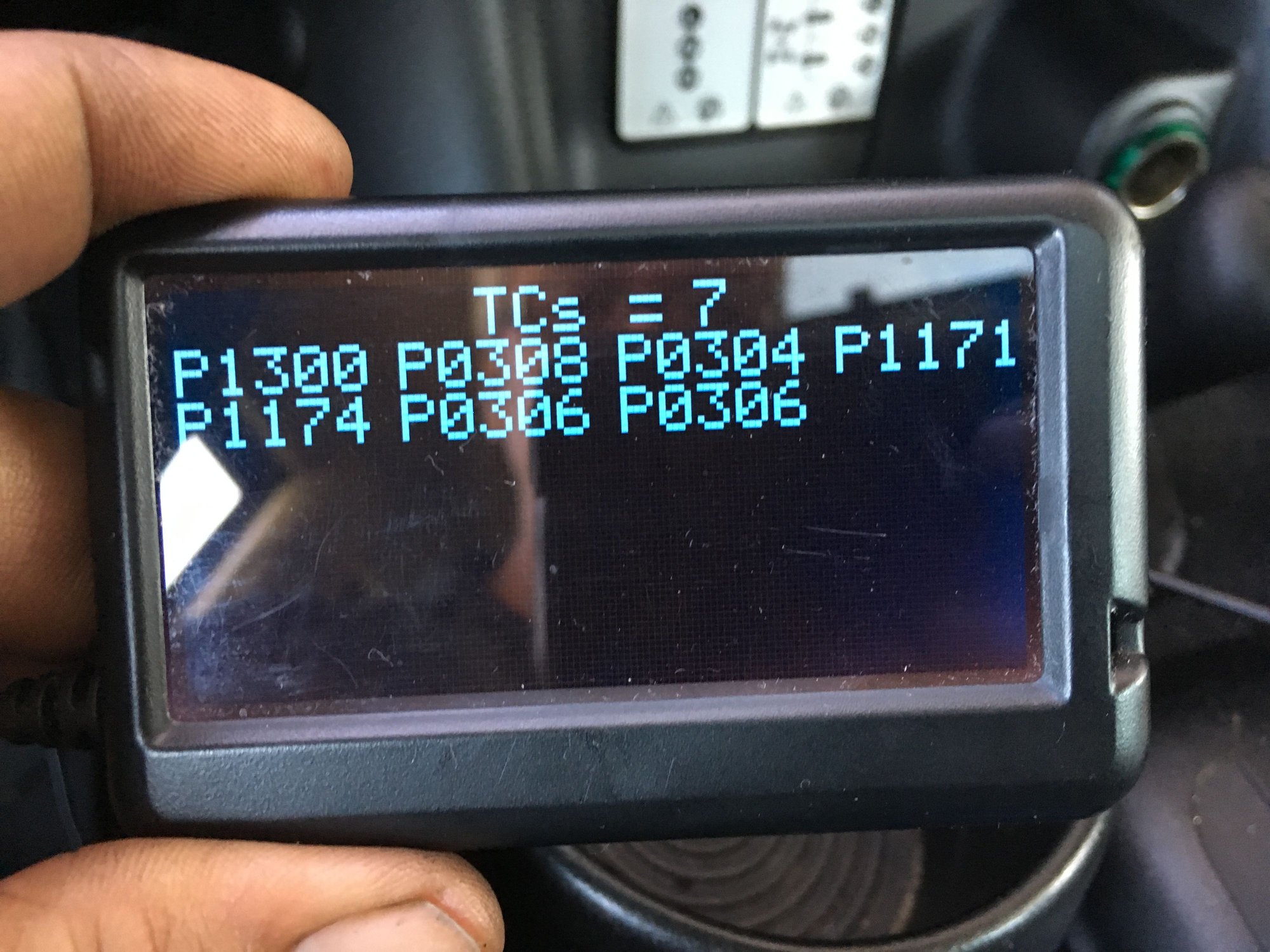

So, did the relocation yesterday and having consistent codes pictured above for 2 weeks. Yesterday and today I totaled 117 miles driven, many stops along the way and here are the codes that was left (pictures below) Now I only have to deal with 2 persistent codes. Could be injectors or MAF. The ones left have different opinions and mostly unsolved in the forums. Please share your experience with these twin codes P1174 and P1171. thanks
#8
#9
Gerry's kit is available now. You get the 8mm wires separately from Kingsborne: Gerry convinced them to make a set specifically for this application.
I just installed it yesterday. So far, so good.
Other than the fact that the numbering of the wires doesn't match the cylinders (I cut off the numbers as they were confusing me), the install is excellent. Here are pictures of my relocation using blue wires.
My only feedback to Gerry would be to ask Kingsborne to make the wires for cylinders 1,3 and 5 about an inch or so longer to allow for a little slack and otherwise make the routing around the compressor/throttle area a little easier/cleaner. (the wire for cylinder 7 had plenty of slack, as did the all 4 wires on the near side of the coil pack bracket for cylinders 2,4,6,8).
BTW, once the coils were relocated, it was a breeze to swap out the "new" coils I had purchased from Lucky 8 (aka LRParts on eBay) and go back to the original 13 year old Bosch coils I had replaced a few months earlier while I had the upper and lower intake off doing a valley gasket replacement.
Once the coils were relocated, it took all of 10 minutes to perform a coil swap out -- compared to the hours and lost skin it would take to remove them from the factory firewall location -- and it fixed the misfires my son had been having since installing the "new" coils. Why a swap-out of new coils? It turned out the "new" coils from Lucky 8 were apparently defective. So far, Lucky 8 hasn't responded to me much less offered me a refund, so, even though I got 90% of my complete engine rebuild parts from them, my advice would be to get your coils from someone else lest you go thru all the frustration I have -- who would have thought not just one but two new coil packs would be bad.
I just installed it yesterday. So far, so good.

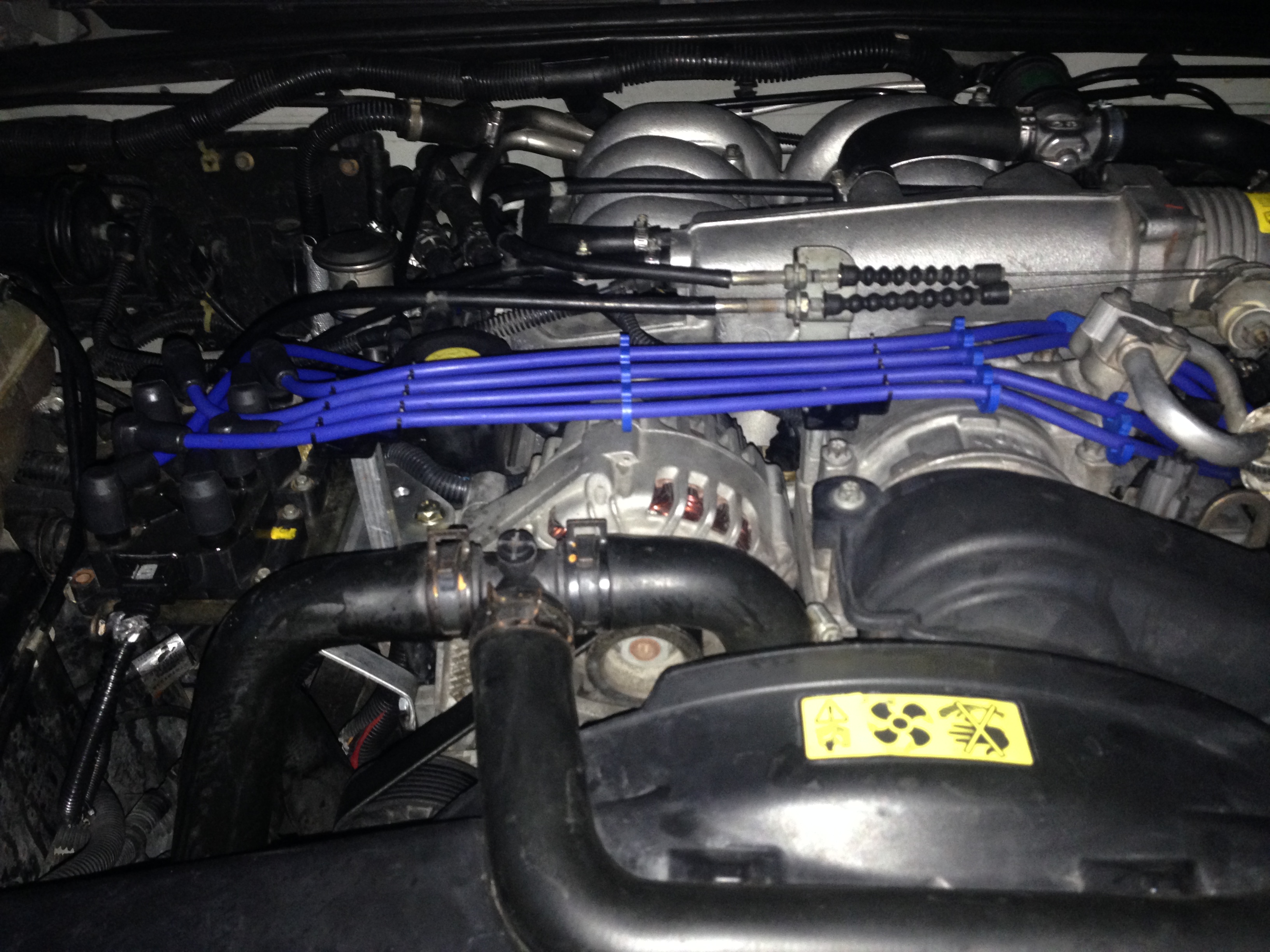

Other than the fact that the numbering of the wires doesn't match the cylinders (I cut off the numbers as they were confusing me), the install is excellent. Here are pictures of my relocation using blue wires.
My only feedback to Gerry would be to ask Kingsborne to make the wires for cylinders 1,3 and 5 about an inch or so longer to allow for a little slack and otherwise make the routing around the compressor/throttle area a little easier/cleaner. (the wire for cylinder 7 had plenty of slack, as did the all 4 wires on the near side of the coil pack bracket for cylinders 2,4,6,8).
BTW, once the coils were relocated, it was a breeze to swap out the "new" coils I had purchased from Lucky 8 (aka LRParts on eBay) and go back to the original 13 year old Bosch coils I had replaced a few months earlier while I had the upper and lower intake off doing a valley gasket replacement.
Once the coils were relocated, it took all of 10 minutes to perform a coil swap out -- compared to the hours and lost skin it would take to remove them from the factory firewall location -- and it fixed the misfires my son had been having since installing the "new" coils. Why a swap-out of new coils? It turned out the "new" coils from Lucky 8 were apparently defective. So far, Lucky 8 hasn't responded to me much less offered me a refund, so, even though I got 90% of my complete engine rebuild parts from them, my advice would be to get your coils from someone else lest you go thru all the frustration I have -- who would have thought not just one but two new coil packs would be bad.
Last edited by austinlandroverbill; 07-25-2017 at 08:45 AM.
#10
BTW Gerry, to your question about P1171 and P1174 -- I was so busy gushing about your coil relocation kit that I forgot to weigh in on that -- I think I've had those same codes and corrected it with either a new "Hyundai" purge valve or by fixing a vacuum leak at the valley gasket.
If you need to make a "smoke tester" I can give you instructions on how to build one for less than $20. It was invaluable in identifying the valley gasket leak right away.
If you need to make a "smoke tester" I can give you instructions on how to build one for less than $20. It was invaluable in identifying the valley gasket leak right away.
Last edited by austinlandroverbill; 07-25-2017 at 08:34 AM.
