Ok I’m bad at reading auto wiring diagrams
can anyone tell me how and where the oil pressure wire is run ? Mine got pinched during cdl install by a shop and instead of trying to find where the wire is bad I would be easier to run a new one

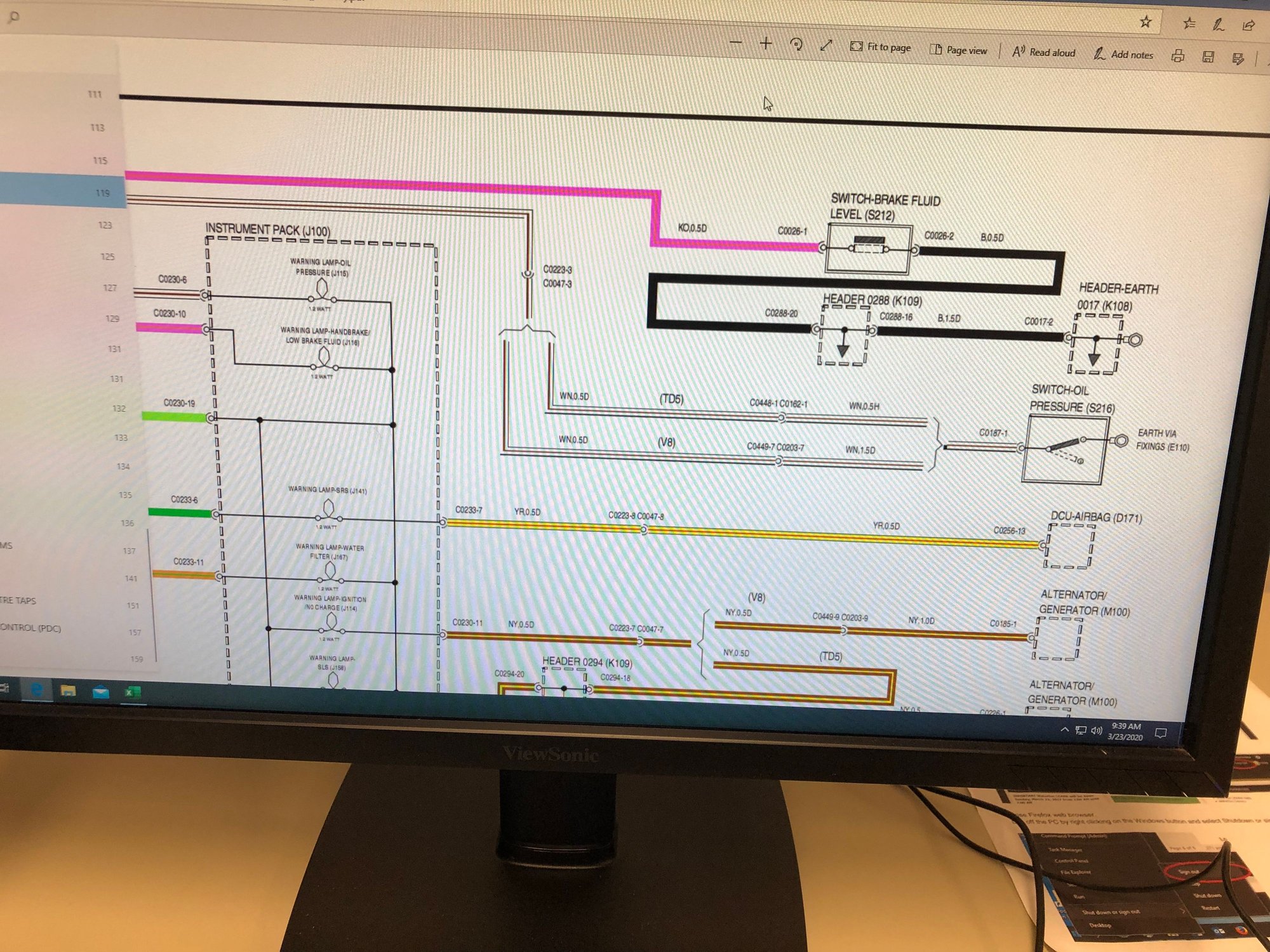

looking at this diagram does the ground wire go from the instrument pack oil light directly to the switch ? Looks like ground wire C0230-6 WN 0.5D ?
C0230-6 is a connector and pin ID, not a wire identifier. WN is the colour of the wire (White/browN), in this case.
The D2 electrical library confirms that "the oil pressure warning lamp is connected to the instrument pack from pin C0230-6 on a WN wire to the oil pressure warning switch" (p.4.136).

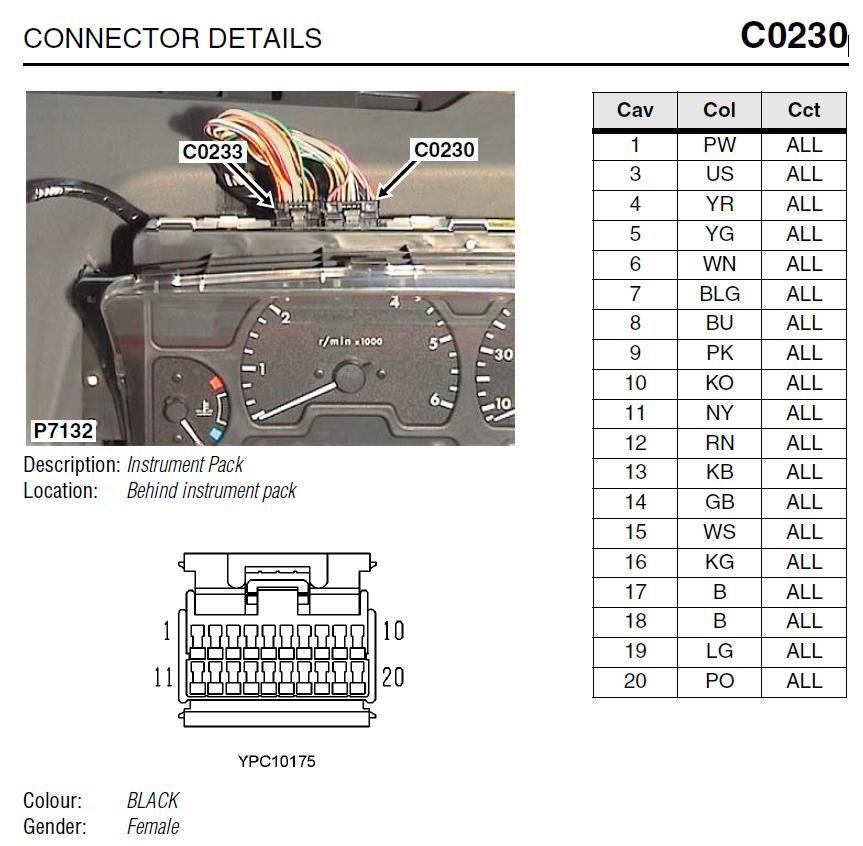

C0230 is on the instrument pack itself.
Additional information for those interested, comes from some LR3/D3 documentation but should be correct for D2 also...
Wire Insulation Colours for Land Rover
BK or B Black
BN or N Brown
BU or U Blue
GN or G Green
GY or S Grey/Slate
OG or O Orange
PK or K Pink
RD or R Red
VT or P Violet/Purple
WH or W White
YE or Y Yellow
The insulation colour is indicated on the wiring diagram followed by the wiring conductor diameter in mm, that is; RU, 0.5D is Red (dominant colour) with a Blue tracer and the wire is 0.5mm in diameter. Also LGB, 0.5D, 700 means Light Green with Black tracer, 0.5 mm conductor diameter, 700 mm in length. Hope this helps someone...
Last edited by enb54; Mar 23, 2020 at 12:30 PM.
Reason: Add LG and length info
C0230-6 is a connector and pin ID, not a wire identifier. WN is the colour of the wire (White/browN), in this case.
The D2 electrical library confirms that "the oil pressure warning lamp is connected to the instrument pack from pin C0230-6 on a WN wire to the oil pressure warning switch" (p.4.136).
C0230 is on the instrument pack itself.
C0230-6 is a connector and pin ID, not a wire identifier. WN is the colour of the wire (White/browN), in this case.
The D2 electrical library confirms that "the oil pressure warning lamp is connected to the instrument pack from pin C0230-6 on a WN wire to the oil pressure warning switch" (p.4.136).
C0230 is on the instrument pack itself.

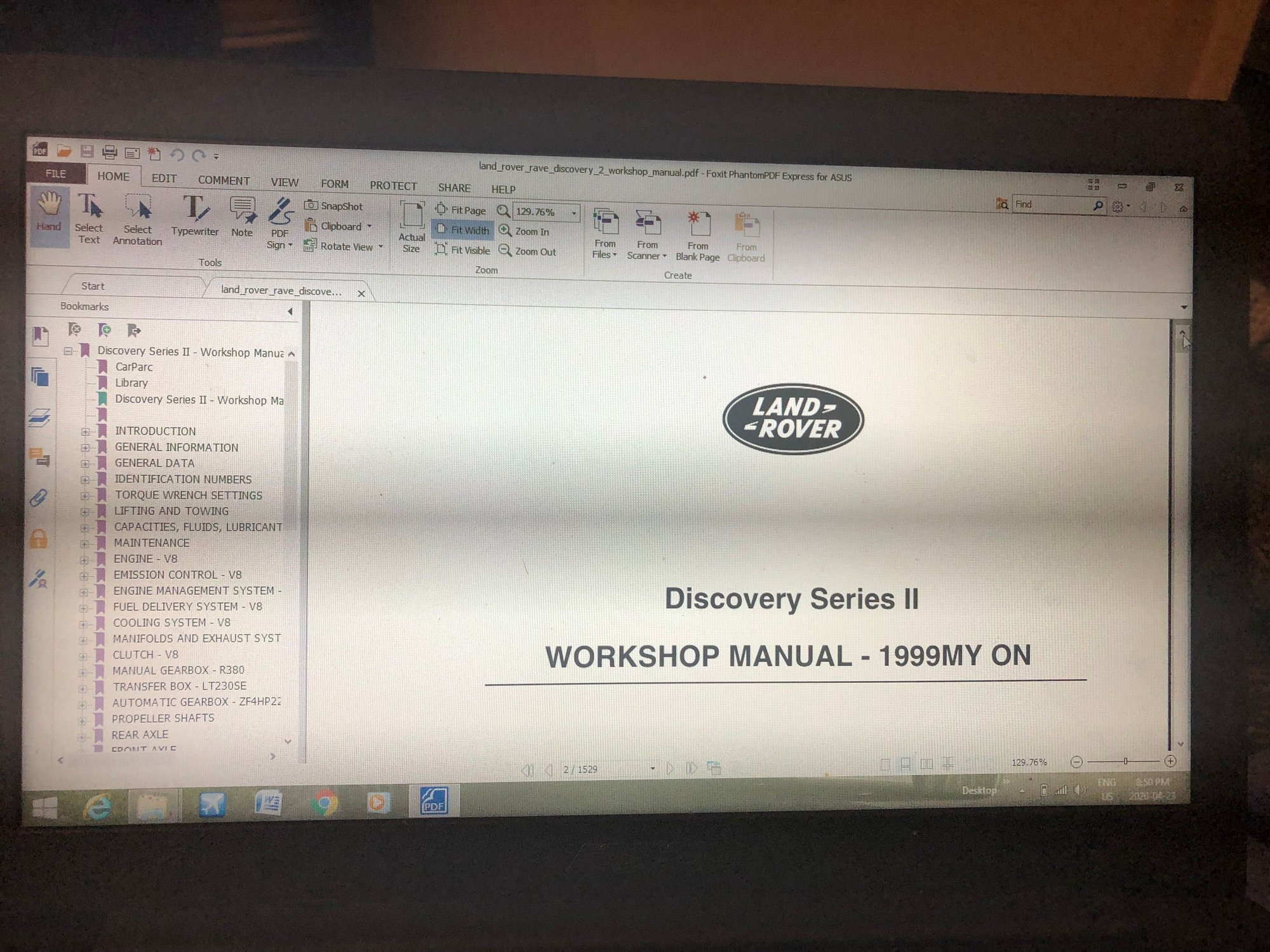

im trying to get more familiar with the rave and electrical section. I cannot find this pic above not even sure if there is different sections of race.
Where exactly is this picture ???
