Is there a wiring diagram hidden in the rave. I cant seem to find one. Im looking for a wiring diagram associated with the fuel guage



It’s a separate manual. Electronic Troubleshooting Manual IIRC. If you search WaltNYC (forum member), I think you’ll find a link to it in his signature.



The Electical Manual for a D2 is here.

https://drive.google.com/file/d/0Byt...JKz8RM4PQKjJ1Q



Page 173
"Fuel gauge
The fuel gauge is connected from pin C230-14 of the instrument pack to the fuel tank unit
on a GB wire. The fuel tank unit sends an earth input on a KB wire to pin C0230-13 on the
instrument pack. The fuel tank unit sender is of the variable resistance type and the fuel
gauge displays a value according to the input sent from the fuel tank unit sender."

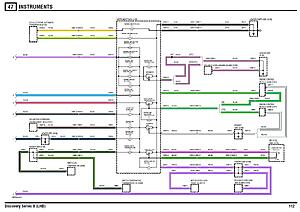

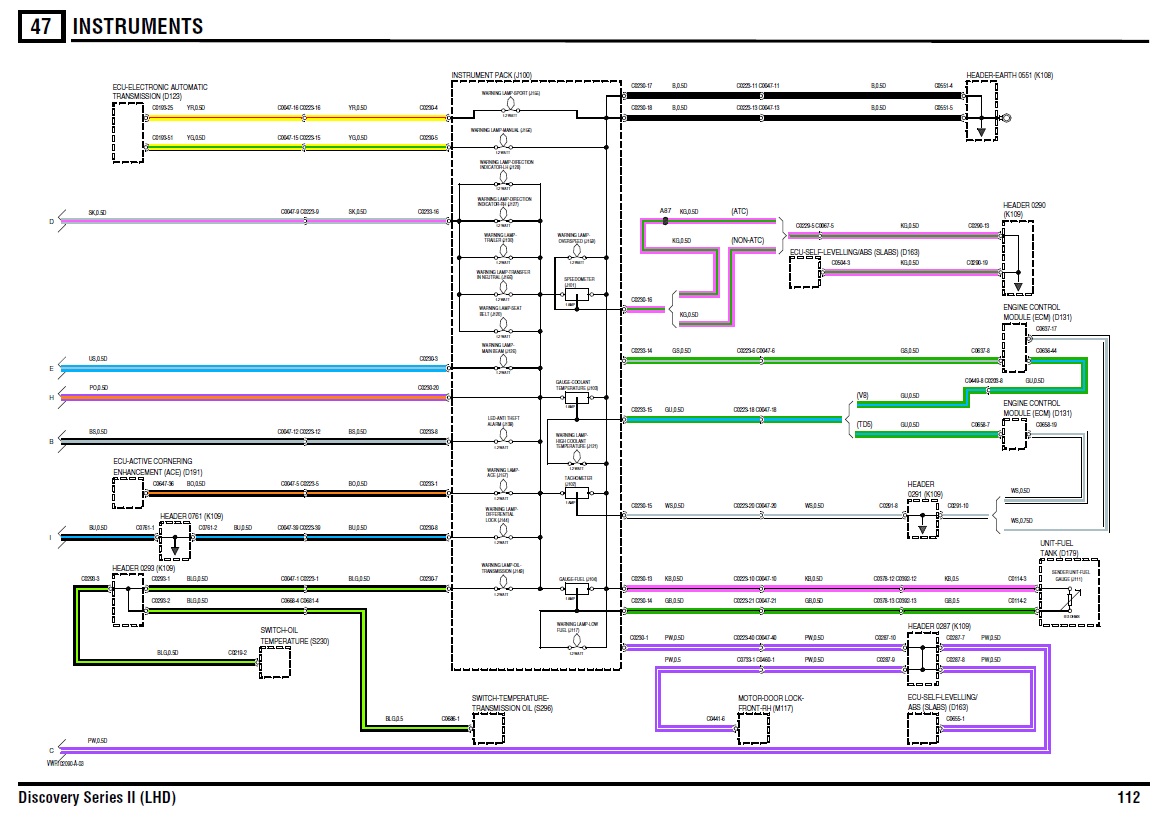

The diagrams for late models is here:
https://drive.google.com/file/d/0Byt...BZtDlQuuS4-PGA

Page 113 of the pdf



The full monty is in my signature



Here is a link to download the DII Electrical Circuit Diagrams (2000 model year).
https://discoii.files.wordpress.com/...grams_2000.pdf

And here is a link to the Electrical Library.
https://discoii.files.wordpress.com/...al-library.pdf



That sir, is EXACTLY what i needed. Many blessings and happiness to you.



fixed it. Your info was invaluable! Thank you again. I had to replace the kb wire. Now it works,



Great!
