LR2 battery drain issue resolved: Finally!
I've been dealing with an intermittent battery drain issue on my 2010 LR2 ever since I've owned it. It can go a full week without issues, or the truck can drain the battery (from fully charged to completely flat) within a couple of hours.
I've been dealing with this for 10 years, addressing the following potential culprits: new battery x 3, alternator, trunk latch solenoid, wiring to the cooling fan showing corrosion, Bluetooth antenna. Each of these fixed the problem for a few weeks, but the battery drain kept coming back.
After major arguments with Land Rover Canada, I was about to sell the truck. But then I decided to change the rules of the game, and hit the annoying mosquito with a hammer.
I installed a remote controlled battery cut-off switch, in such a way that I'd kill the battery after locking the truck. It's an extreme measure, but that was my last resort.
Here's how I went about it....
Remote kill switch
This switch fits in series with the ground cable, which conveniently bolts to the car chassis right behind the battery.
Step 1: Remove only the front clip holding the plastic cowl trim, so you can lift the cowl and gain access to the ground bolt.
The next step was for me to flip the battery 180 degrees to facilitate the wiring process. The Positive lead is now where the negative was, and vice versa.
Here's roughly where I decided to fit the relay.

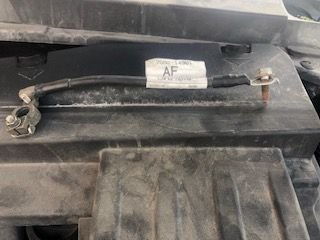

I got a 1-Gauge ground wire that would go from the relay, to the OEM bolt that holds down the ground to the chassis.

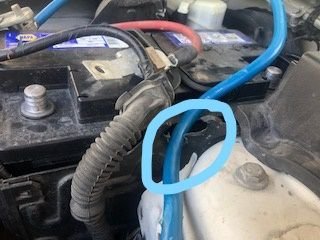

Then I trimmed the plastic where the positive cable exits the battery box to route the new cable.
And bolted down the new negative cable where the OEM negative was.
The battery kill-switch didn't seem to be fused, so I wired this in-line fuse to the positive lead.

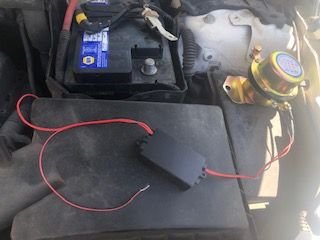

Here's what the kill-switch looks like when it's ready to be installed. Notice I also soldered some proper loop terminals on the positive and ground wires going to the battery.
I used this stock bracket to mount the relay, added a 90-degree metal bracket and a metal rail to mount everything. Use your creativity here, there's no right or wrong way to do it.
Everything in place, and I put the 2 small lead wires in a plastic loom and passed them right under the new blue negative cable.

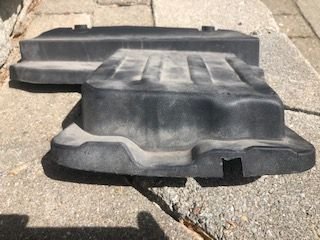

One final trim in the plastic battery cover to accommodate the new cable, and everything was ready to be reassembled.
Final verdict: This is how I decided to stop fiddling with these multiple and random power draws. So far, I've seen no disadvantages from applying this solution. The alarm will obviously be deactivated when you kill the switch, but 1) it was going off randomly anyways, so that's an added benefit, and 2) nobody will be able to steal your truck with the battery cut-off.
So now I hit the "unlock" button on the kill-switch to activate the battery, unlock the truck using the factory remote, and I'm on my way. When I park the truck, I lock it using the factory remote, then hit "lock" on the kill-switch which deactivates the battery.
So far, I've had no issues other than the obvious: the clock is always faulty! lol
I've been dealing with this for 10 years, addressing the following potential culprits: new battery x 3, alternator, trunk latch solenoid, wiring to the cooling fan showing corrosion, Bluetooth antenna. Each of these fixed the problem for a few weeks, but the battery drain kept coming back.
After major arguments with Land Rover Canada, I was about to sell the truck. But then I decided to change the rules of the game, and hit the annoying mosquito with a hammer.
I installed a remote controlled battery cut-off switch, in such a way that I'd kill the battery after locking the truck. It's an extreme measure, but that was my last resort.
Here's how I went about it....
Remote kill switch
This switch fits in series with the ground cable, which conveniently bolts to the car chassis right behind the battery.
Step 1: Remove only the front clip holding the plastic cowl trim, so you can lift the cowl and gain access to the ground bolt.
The next step was for me to flip the battery 180 degrees to facilitate the wiring process. The Positive lead is now where the negative was, and vice versa.
Here's roughly where I decided to fit the relay.
I got a 1-Gauge ground wire that would go from the relay, to the OEM bolt that holds down the ground to the chassis.
Then I trimmed the plastic where the positive cable exits the battery box to route the new cable.
And bolted down the new negative cable where the OEM negative was.
The battery kill-switch didn't seem to be fused, so I wired this in-line fuse to the positive lead.
Here's what the kill-switch looks like when it's ready to be installed. Notice I also soldered some proper loop terminals on the positive and ground wires going to the battery.
I used this stock bracket to mount the relay, added a 90-degree metal bracket and a metal rail to mount everything. Use your creativity here, there's no right or wrong way to do it.
Everything in place, and I put the 2 small lead wires in a plastic loom and passed them right under the new blue negative cable.
One final trim in the plastic battery cover to accommodate the new cable, and everything was ready to be reassembled.
Final verdict: This is how I decided to stop fiddling with these multiple and random power draws. So far, I've seen no disadvantages from applying this solution. The alarm will obviously be deactivated when you kill the switch, but 1) it was going off randomly anyways, so that's an added benefit, and 2) nobody will be able to steal your truck with the battery cut-off.
So now I hit the "unlock" button on the kill-switch to activate the battery, unlock the truck using the factory remote, and I'm on my way. When I park the truck, I lock it using the factory remote, then hit "lock" on the kill-switch which deactivates the battery.
So far, I've had no issues other than the obvious: the clock is always faulty! lol
