2006 LR3 lower brake lights out
Thread Starter
|
1st Gear
Joined: Oct 2013
Posts: 1
Likes: 1
2006 LR3 lower brake lights out
We have our lower (hatch) left and right brake lights not working on our 06 LR3 with no dash warning light. The top brake light is working fine. Running lights and signal lights are also working fine.
I have already changed the filament bulbs (the bulbs were not burnt out) on both sides with OEM replacements and changed the #15 brake light/brake switch fuse (which has not burned out).
Several months ago the brake switch went bad (with the brake warning light reading yellow), and the dealer replaced that part for us. When the brake switch went out all three brake lights were not working versus just left and right as of now.
Not sure what to look at and/or try now.
Thanks in advance
I have already changed the filament bulbs (the bulbs were not burnt out) on both sides with OEM replacements and changed the #15 brake light/brake switch fuse (which has not burned out).
Several months ago the brake switch went bad (with the brake warning light reading yellow), and the dealer replaced that part for us. When the brake switch went out all three brake lights were not working versus just left and right as of now.
Not sure what to look at and/or try now.
Thanks in advance
Recovery Vehicle
Joined: Sep 2013
Posts: 831
Likes: 146
From: Herndon, VA
Yes. Simple fix. Don't do anything.
That's the way the lights are supposed to work. You do not actually have "lower" brake lights. Yes, dual filament bulbs are used in those locations, but they are not brake lights and as far as I am aware, the second filament is never used.
As long as the lower bulbs light up as running/parking lights, then you are fine.
That's the way the lights are supposed to work. You do not actually have "lower" brake lights. Yes, dual filament bulbs are used in those locations, but they are not brake lights and as far as I am aware, the second filament is never used.
As long as the lower bulbs light up as running/parking lights, then you are fine.
Pro Wrench
Joined: Sep 2008
Posts: 1,673
Likes: 153
From: Edmonton Alberta Canada
correct, only two plus one
You may wish to look at the link below and then call up the wiring pdf, print it off and study it at your convenience. The brake light circuit can cause lots of problems, hence the more you know of it, the better.
Yes, per the post above, only the upper bulb in each tail light illuminates, plus the high mount red LED unit located in the centre top of the upper hatch.
As to why the unused filament in the bulb under, I suspect it has something to do with the Euro tail light setup.
DISCO3.CO.UK Photo Gallery - Brake Light Switch Replacement
Yes, per the post above, only the upper bulb in each tail light illuminates, plus the high mount red LED unit located in the centre top of the upper hatch.
As to why the unused filament in the bulb under, I suspect it has something to do with the Euro tail light setup.
DISCO3.CO.UK Photo Gallery - Brake Light Switch Replacement
Pro Wrench
Joined: Sep 2008
Posts: 1,673
Likes: 153
From: Edmonton Alberta Canada

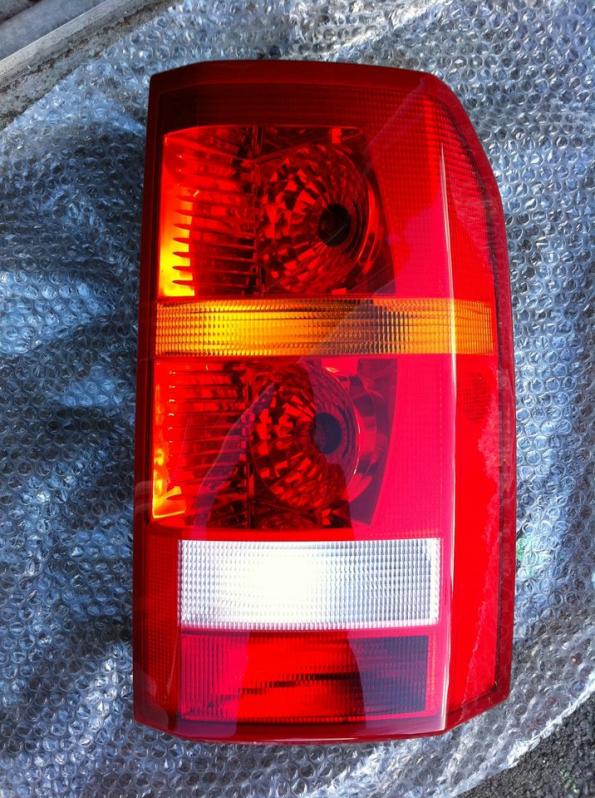

LR3 tail light bulbs
Brake plus Tail lights: Red lens, P21/5 bayonet, clear, LR #264590
Signal Lights, rear: Yellow lens, rear P21 bayonet, clear, LR #264591
Signal Lights, front: P27/7 (now 3157, previous 3457) wedge, clear, LR #XZQ 500050.
Tail lights only: Red lens; brake light filament exists but does not illuminate ever; P21/5 bayonet, clear, LR #264590
Reverse lights: White lens, P21 bayonet, clear, LR #264591
Rear Fog Guard Lamps: Red lens, P21 bayonet, clear, LR #264591
Side Marker lights: Yellow lens front, Red lens rear: W3W wedge, clear, LR #573289
License Plate lights: White lens, W5W wedge, clear, LR #AFU4481
Signal Lights, rear: Yellow lens, rear P21 bayonet, clear, LR #264591
Signal Lights, front: P27/7 (now 3157, previous 3457) wedge, clear, LR #XZQ 500050.
Tail lights only: Red lens; brake light filament exists but does not illuminate ever; P21/5 bayonet, clear, LR #264590
Reverse lights: White lens, P21 bayonet, clear, LR #264591
Rear Fog Guard Lamps: Red lens, P21 bayonet, clear, LR #264591
Side Marker lights: Yellow lens front, Red lens rear: W3W wedge, clear, LR #573289
License Plate lights: White lens, W5W wedge, clear, LR #AFU4481
Last edited by bbyer; Jun 5, 2014 at 09:54 AM. Reason: signal lights front description revised
The 1st photo shows the truck with basic running lights on.
The 2nd photo shows the truck with running lights and brakes applied.
The 3rd photo shows the truck with running lights and rear fog lights on.
The 4th photo shows the truck with running lights, rear for lights, and brakes applied.
Hope this clears up some confusion.
-Erik @ Lucky 8
The 2nd photo shows the truck with running lights and brakes applied.
The 3rd photo shows the truck with running lights and rear fog lights on.
The 4th photo shows the truck with running lights, rear for lights, and brakes applied.
Hope this clears up some confusion.
-Erik @ Lucky 8
6th Gear
Joined: Oct 2016
Posts: 6
Likes: 1
Tail brake lights
Hi there
will you please let me know how did you fix that. Because I have same problem on my LR3 2006
Thank you in advance
Max
will you please let me know how did you fix that. Because I have same problem on my LR3 2006
Thank you in advance
Max
We have our lower (hatch) left and right brake lights not working on our 06 LR3 with no dash warning light. The top brake light is working fine. Running lights and signal lights are also working fine.
I have already changed the filament bulbs (the bulbs were not burnt out) on both sides with OEM replacements and changed the #15 brake light/brake switch fuse (which has not burned out).
Several months ago the brake switch went bad (with the brake warning light reading yellow), and the dealer replaced that part for us. When the brake switch went out all three brake lights were not working versus just left and right as of now.
Not sure what to look at and/or try now.
Thanks in advance
I have already changed the filament bulbs (the bulbs were not burnt out) on both sides with OEM replacements and changed the #15 brake light/brake switch fuse (which has not burned out).
Several months ago the brake switch went bad (with the brake warning light reading yellow), and the dealer replaced that part for us. When the brake switch went out all three brake lights were not working versus just left and right as of now.
Not sure what to look at and/or try now.
Thanks in advance
Rock Crawling
Joined: Jan 2011
Posts: 351
Likes: 22
From: Pacific Northwest
It's normal. Read above.
Overlanding
Joined: Oct 2014
Posts: 18
Likes: 1
Help
It is not normal to have 1 brake light working and the 2 lower brake lights not working. The Running lights work fine. Did any one ever get an answer to this. I am leaning to a bad switch or fuse.
Last edited by manatee2000@gmail.com; Jul 18, 2017 at 04:46 AM.
