2007 LR3 air suspension issue
#1

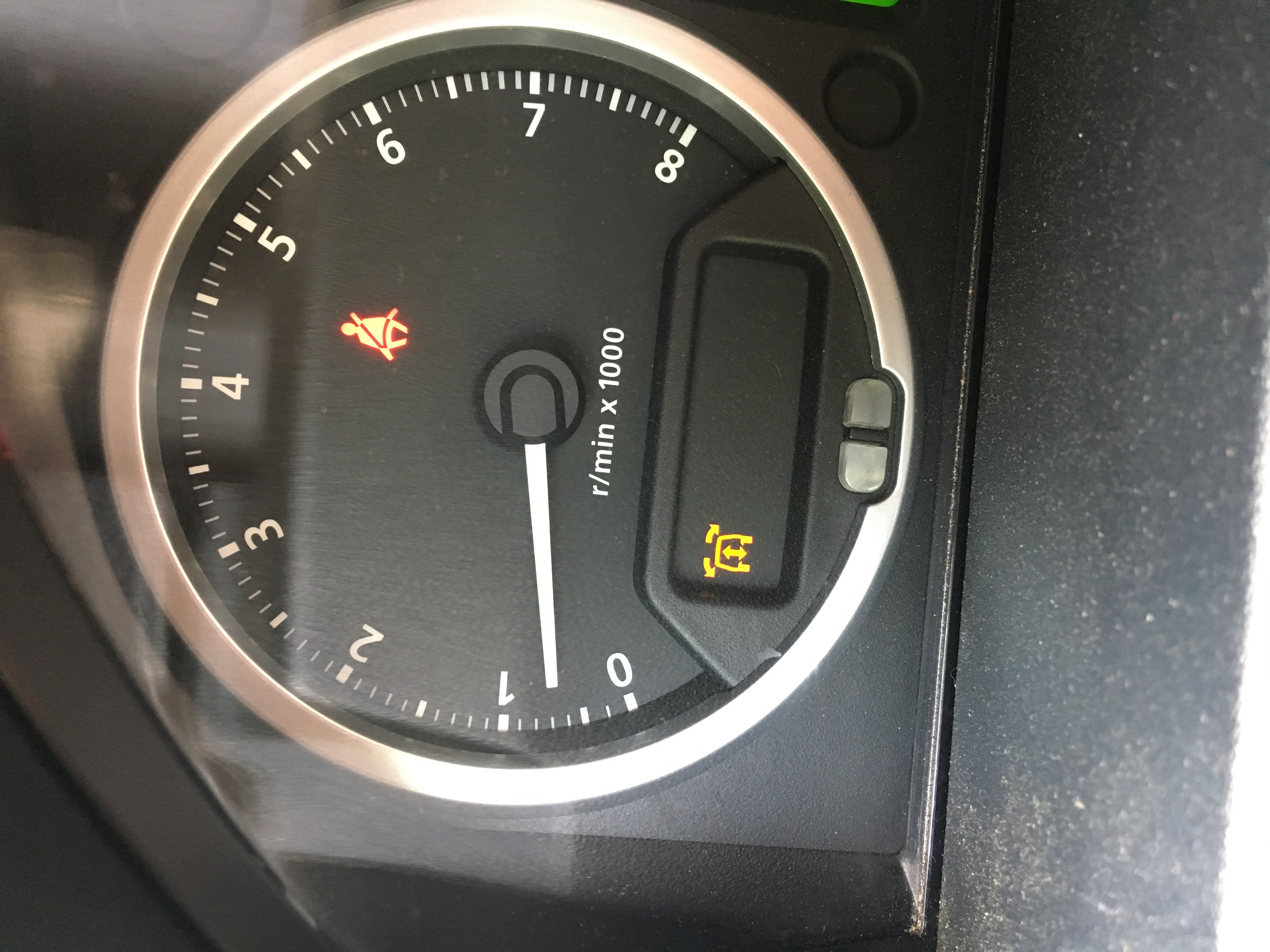

*NOW WITH WARNING LIGHT* 2007 LR3 air suspension issue
When I shut off my LR3, it's not lowering itself back down to access height. I can raise and lower the vehicle using the manuals controls, but it's not doing it automatically anymore.
What's the problem? Ok to continue to drive it while this issue exists?
Thanks and Semper Fi!
What's the problem? Ok to continue to drive it while this issue exists?
Thanks and Semper Fi!
Last edited by cmshoot; 07-21-2017 at 06:42 PM.
#2
I could be wrong, but I don't think automatically changing heights was a feature of the system. The only way to change the height not using the manual controls in the vehicle are if you program the keyfob to do it (which only works while your hazards are on, primarily for hitching up a trailer).
After shutting down and closing all doors, after a couple seconds it does often release some pressure in the system and lower slightly, but not all the way down to access height.
If you have an air leak, it will settle far beyond access height, but over a long period of time (depending how bad the leak is).
After shutting down and closing all doors, after a couple seconds it does often release some pressure in the system and lower slightly, but not all the way down to access height.
If you have an air leak, it will settle far beyond access height, but over a long period of time (depending how bad the leak is).
#4
#5
#6
Had dealer change it (Long ago) because soon as you opened door it halted anyways.
How old is your battery? Original alternator?
#7
Since I can't find anything on an "auto access height" setting for the LR3, let's assume you were mistaking the release of pressure after shutting down and getting out for settling to access height.
When you get out, the excess pressure in the system used to hold up the truck plus your weight is released. If it isn't doing it anymore, you might have something wrong with your height sensors, but I would expect this would trigger a fault. You haven't changed the air suspension mode from tight tolerance mode using an IID tool or similar, or had an alignment done recently, have you? If it was accidentally left in tight tolerance mode (used for alignments) and then recently you had one done and they correctly switched it back when they were done, maybe that would be enough to change the behavior. Leaving it in tight tolerance isn't recommended as it will wear out the system much faster. Grasping at straws here though.
If you don't have any faults or warnings, I would say you can probably ignore it.
When you get out, the excess pressure in the system used to hold up the truck plus your weight is released. If it isn't doing it anymore, you might have something wrong with your height sensors, but I would expect this would trigger a fault. You haven't changed the air suspension mode from tight tolerance mode using an IID tool or similar, or had an alignment done recently, have you? If it was accidentally left in tight tolerance mode (used for alignments) and then recently you had one done and they correctly switched it back when they were done, maybe that would be enough to change the behavior. Leaving it in tight tolerance isn't recommended as it will wear out the system much faster. Grasping at straws here though.
If you don't have any faults or warnings, I would say you can probably ignore it.
