LR3 + AMK and an ill-fitting box
#1
LR3 + AMK and an ill-fitting box
I just replaced my Hitachi compressor with an AMK. The overall install wasn't bad... (the top mounting bolt is a giant pain, but slotting the bracket allows you to pre-thread the bolt and then hang the bracket like a coat hanger)
The suspension is working again, with no dash lights!
But I'm having a hell of a time getting the cover to fit right...
Has anyone done this replacement before with the kit and gotten the cover to line up properly? I know it's supposed to clip in over/behind the valve block mount... Any tips?
(It's an '08 LR3 SE 4.4L with 145k. I also have the Rear A/C which might have some pipes in the way...)
The suspension is working again, with no dash lights!
But I'm having a hell of a time getting the cover to fit right...
Has anyone done this replacement before with the kit and gotten the cover to line up properly? I know it's supposed to clip in over/behind the valve block mount... Any tips?
(It's an '08 LR3 SE 4.4L with 145k. I also have the Rear A/C which might have some pipes in the way...)
#4
I personally found the AMK compressor and cover to much easier to install vs. the hell it was to get the old Hitachi down (top bolt). My cover doesn't seem as tight of a fit, and while I didn't measure it, it seems to sit just a little lower.
Also, did you modify the one line that required some modification (if memory serves) as shown in the directions? I could see that causing a problem.
Also, did you modify the one line that required some modification (if memory serves) as shown in the directions? I could see that causing a problem.
Last edited by COSPILOT; 02-23-2018 at 05:18 PM.
#5
Hmmmm... Do you remember if you set the cover up in place before screwing down the bracket? The top cover has a bunch of squishy outcroppings that would seem to make it more difficult to fit flush against the frame... Maybe one of those outcroppings is supposed to be pinched between the bracket and the frame...?
#6
Hmmmm... Do you remember if you set the cover up in place before screwing down the bracket? The top cover has a bunch of squishy outcroppings that would seem to make it more difficult to fit flush against the frame... Maybe one of those outcroppings is supposed to be pinched between the bracket and the frame...?
On a side note, I thought my tank was fine, but the new compressor was still running a lot, and after looking harder, there was some rust where the tank is very close to the frame rail. Wasn't visible, but spraying some leak detector on it I could some bubbles.
#7
#8
The cover with my Hitachi>AMK conversion didn't fit very well either. The piece that goes behind the valve block didn't fit well and one of the front clips was a pain to snap in. Hope I don't have too much water and gunk getting in there.
I can't believe the job only took me one go and I have no leaks. The top bolt was as described - a PITA.
I can't believe the job only took me one go and I have no leaks. The top bolt was as described - a PITA.
#9
Well, it's "done". I got the box on and closed... I had to squeeze it closed and push up on the bottom to get the clips to connect. Just in time for a powder ski day yesterday!
And I definitely had to modify the cover. There was too much foam keeping the cover away from the frame and making it difficult to fit. The wiring harness runs through the box and in front of the valve block. I probably could have tried to route this better, because closing the front end of it was difficult. Also, I needed to trim where the wiring harness entered the box from above, I marked it with the circle in the picture.
I, fortunately, had two of the top covers so I could compare it with the original before I took the compressor back off (more on that later). Here's a comparison shot of the new and old covers and where I trimmed the cover and foam.

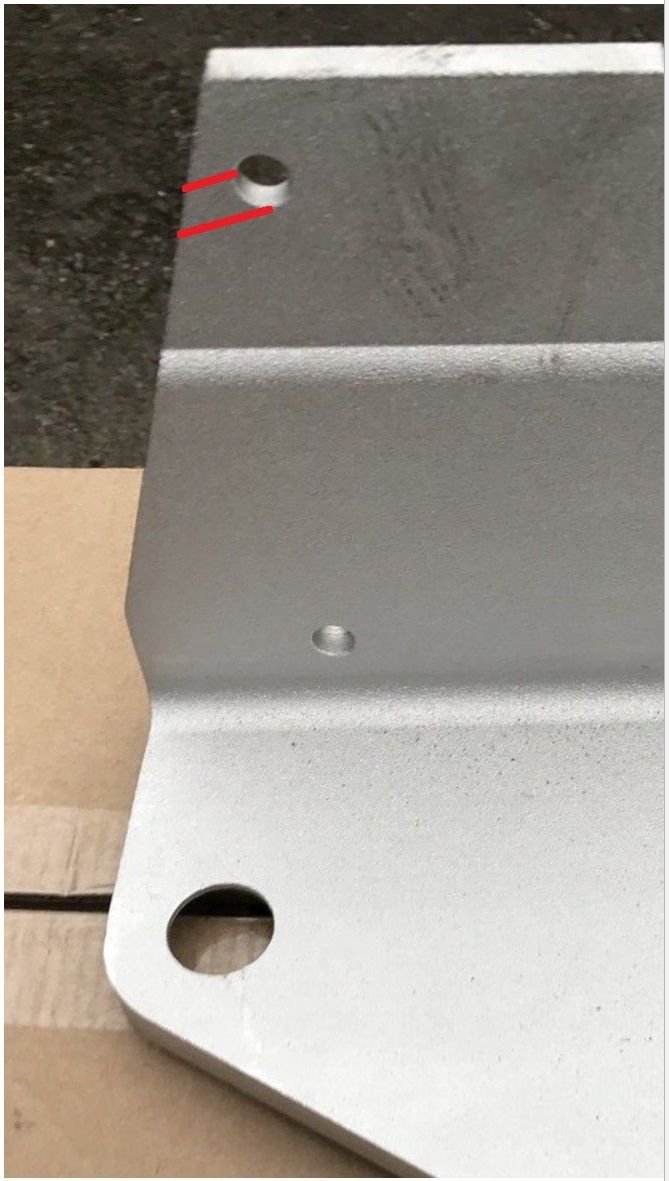

I mentioned this before, but I took a hacksaw to the bracket and it made the install MUCH easier. It lets you thread the top screw in a bit first, and then hang the bracket over it. I cut along both of the red lines so it leaves a bolt-sized channel. I cut it at a downward angle from the hole so it wouldn't slip out.
How I cut the compressor mounting bracket to make it easier to install
And I definitely had to modify the cover. There was too much foam keeping the cover away from the frame and making it difficult to fit. The wiring harness runs through the box and in front of the valve block. I probably could have tried to route this better, because closing the front end of it was difficult. Also, I needed to trim where the wiring harness entered the box from above, I marked it with the circle in the picture.
I, fortunately, had two of the top covers so I could compare it with the original before I took the compressor back off (more on that later). Here's a comparison shot of the new and old covers and where I trimmed the cover and foam.
I mentioned this before, but I took a hacksaw to the bracket and it made the install MUCH easier. It lets you thread the top screw in a bit first, and then hang the bracket over it. I cut along both of the red lines so it leaves a bolt-sized channel. I cut it at a downward angle from the hole so it wouldn't slip out.
How I cut the compressor mounting bracket to make it easier to install
