While replacing the shift linkage today on my 05 lr3 the upper bolt that goes into the transmission snapped !!!!!

is there even a way to fix this ????

if so some guidance would be greatly appreciated



Easy-out and new bolt is all I can think of.



That sucks! Trying to do some preventive maintenance and that happens!

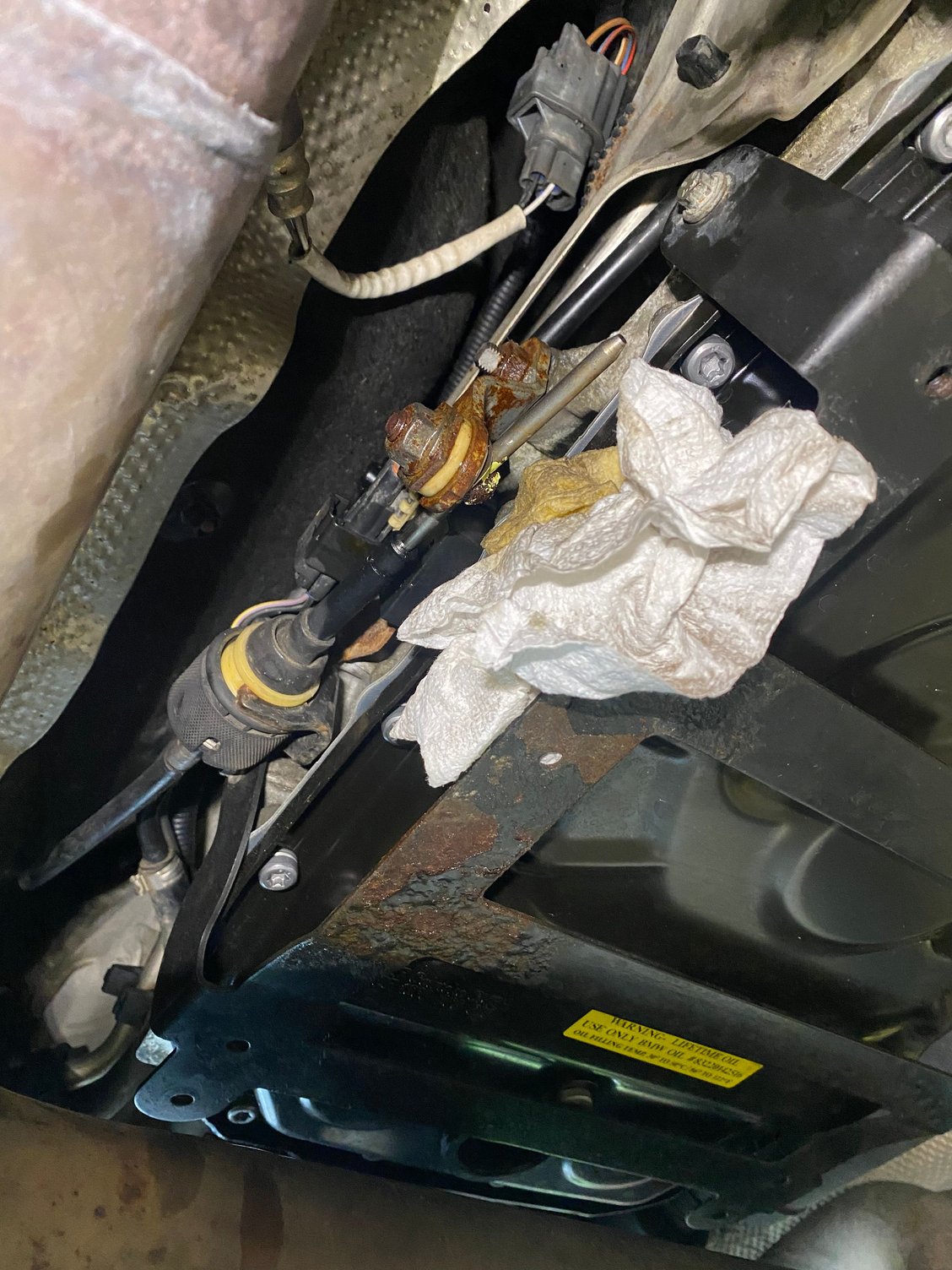

Here's the breakdown. It looks to me like the transmission would need come out as that selector shaft won't clear the frame. Maybe a good welder? Anybody else have actual experience with this?

I received the parts a few days ago to do mine. I'm going to learn from your experience here and spend a few days with some PB Blaster before trying to remove the nut.



I’m under my LR3 this morning replacing the alternator and soaking the transmission linkage with PB Blaster.

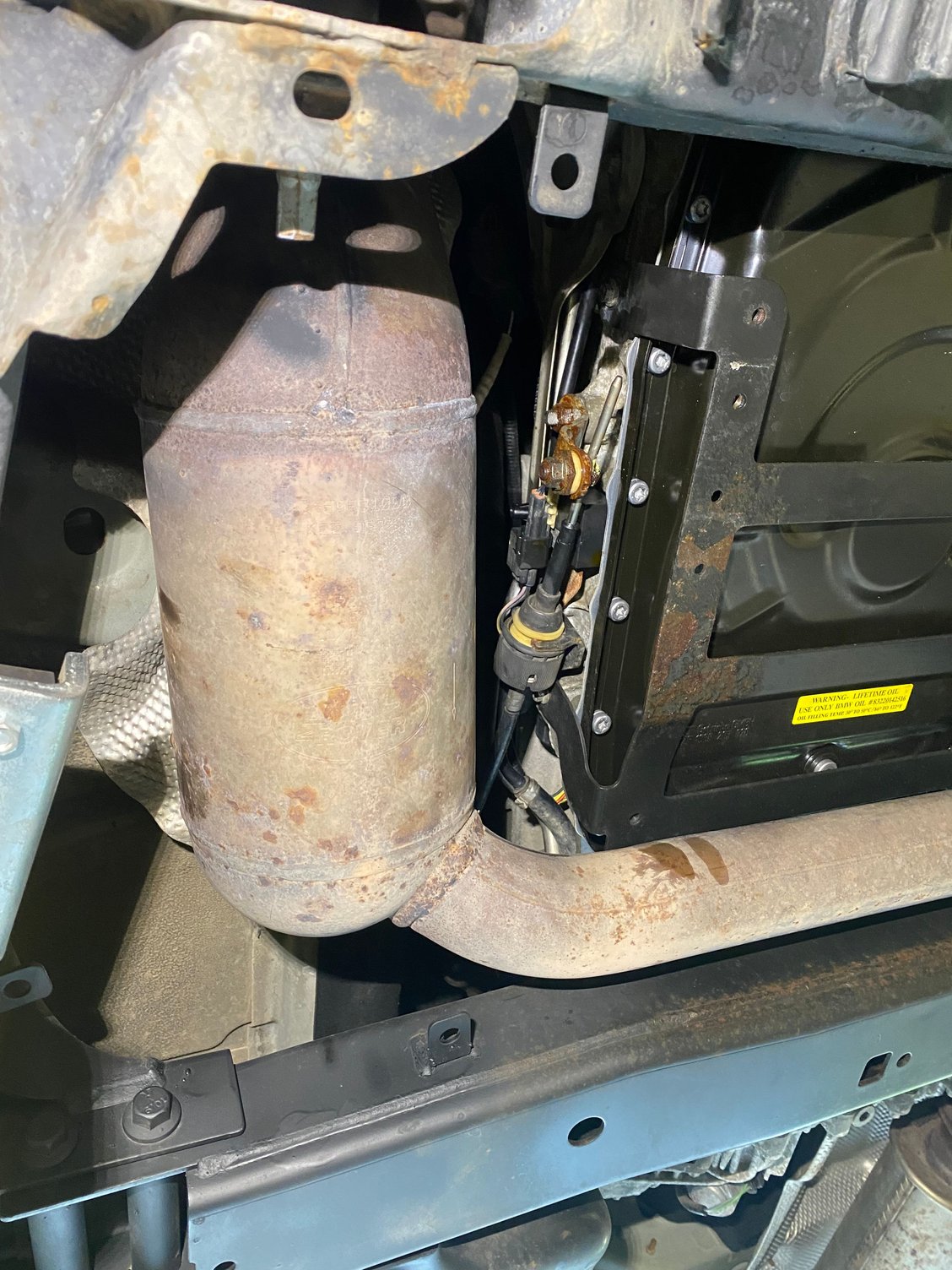

The shaft appears to be about 13 inches long and passes all the way through the transmission housing. There’s about 10 inches clearance to the frame. However, it looks like it can slide out right over the cat and next to the O2 sensor. Then, there’s a space between the frame and body that just might be the perfect spot to slide it all the way out.

I pieced together 3/8” drive extensions to 14 inches long. Then I placed it at the shaft end and through the frame… I think it might actually work!

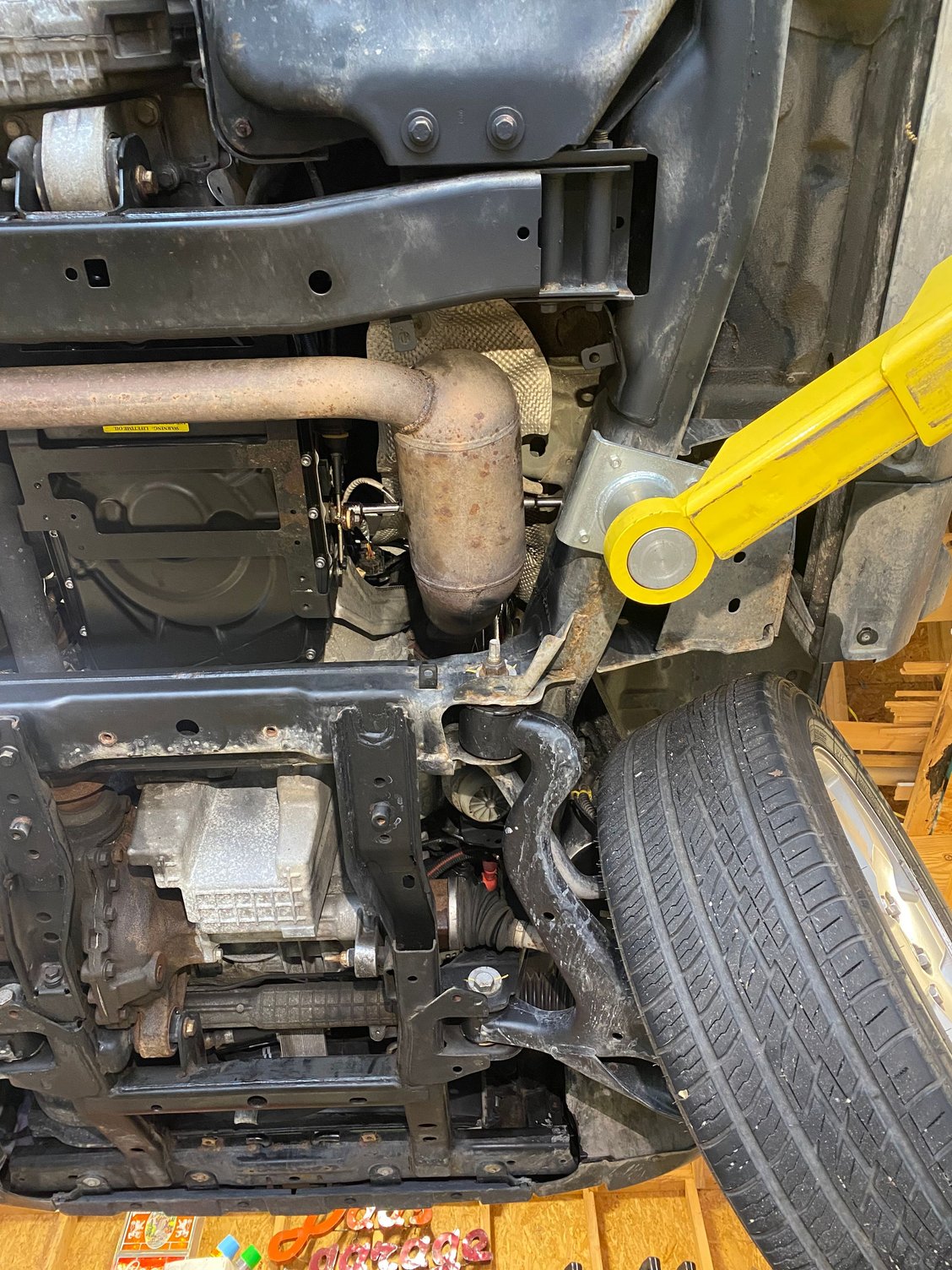

Shaft extending all the way through transmission.

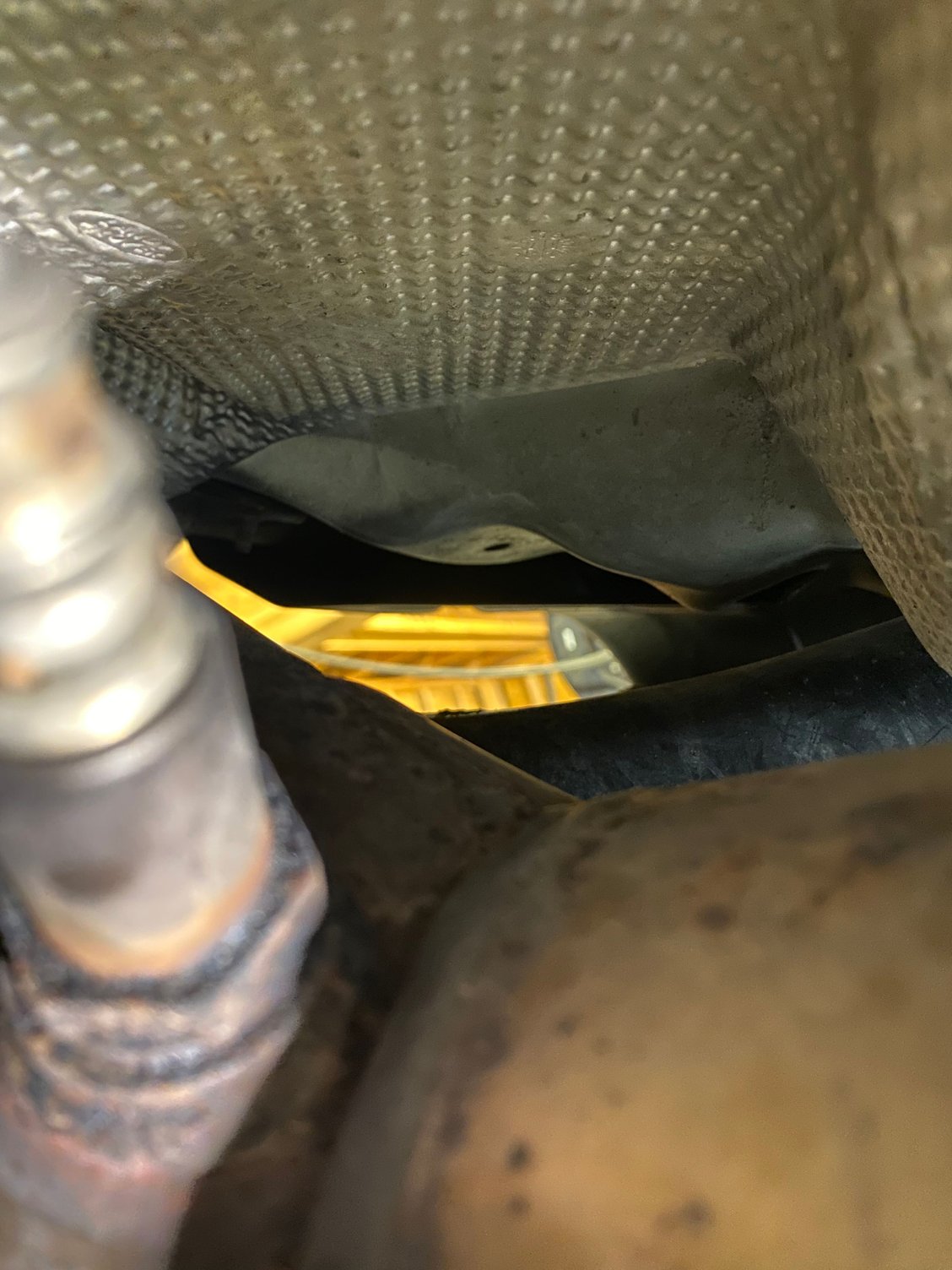

Camera at the end of shaft facing out.

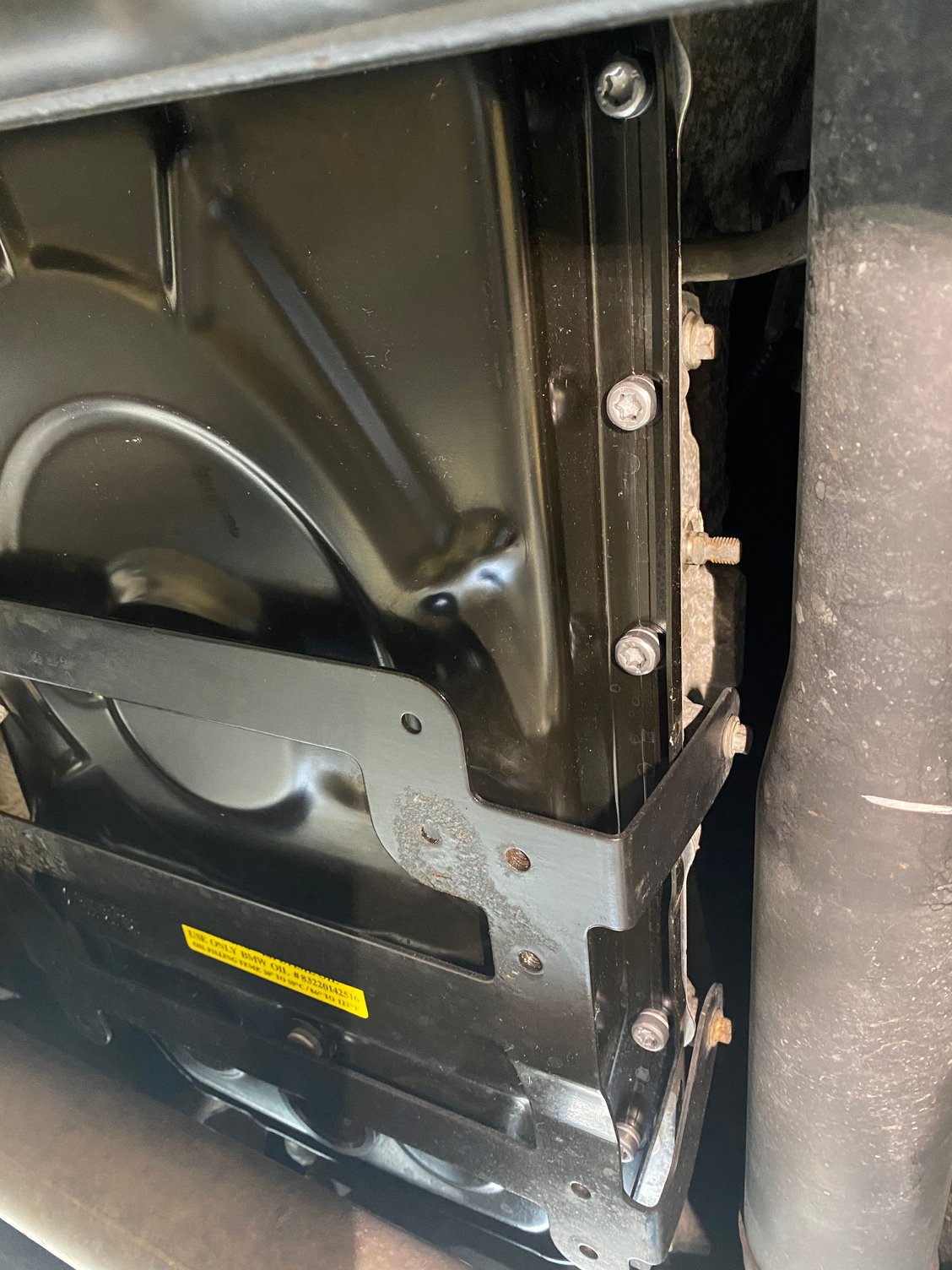

Extensions passing through openings to the shaft.



I am confused... first that is the shift selector shaft so it will not come out. Second, what you do you mean it snapped? In the pics it looks okay, externally? Or did it break internally?



OwlRover’s snapped, not mine. The pan and valve body would need to be removed as well. Point being it might be able to come out without removing transmission.



Ah, explains that. Yeah, the pan and valve body must be removed to re-pin the shaft into the rotating lever.



Happened to mine as well a month ago. I used jb weld and it held for a month. I wonder if I could tack weld it on, also p-bod where do I purchase a new selector rod? Been looking all over the web and no luck. Also I found this link to help with inserting the new rod. Good for reference. https://xoutpost.com/bmw-sav-forums/...-teardown.html



Oh ****, I see now....it's the entire shaft part that the linkage threads onto. Yikes.

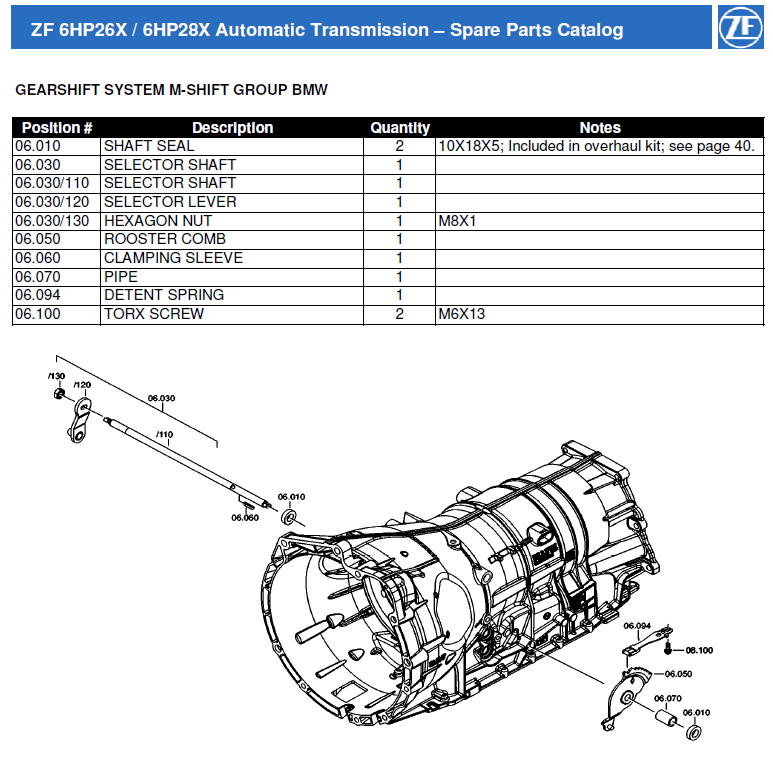

That is an excellent thread on xoutpost.com! I did a quick web search for the rod the other day and got the same result as you. It might take some phone calls to some of the ZF parts distributors to find the actual part number—the ZF book just gives you a location code. Maybe a junkyard...there's got to be some of these shafts laying around somewhere. I have no clue if you can weld to this metal or not. It would be worth a shot. I have pretty much zero welding skills.
