There’s A LOT going on here so I added detailed descriptions to each picture. The entire rear 3/4 of the truck was gutted and only the upper trim panels were retained. It’s just my wife, dog and myself so I built this to fit our needs. The cargo cage is mounted to the body, and can swing open and latch to the ceiling should I need to fit something large, or escape out the back. The rear drawers are 24” deep on 100lb rated full extension slides. There are multiple cubbies, and power ports throughout the rear area. The cargo area width was determined by fitting a slide out refrigerator on the drivers side and large Pelican cases stacked on the passenger.
The alpine racks are designed for storing soft goods like extra cloths, towels, etc. Drivers side bin holds bottle jack, tools, and extra parts/fluids. Passenger side houses electrical sub panel, and other misc goods. Tops of the bins are sized to have tent, and sleeping pads strapped to them. Drawers store propane stove, kitchen items, food, etc.

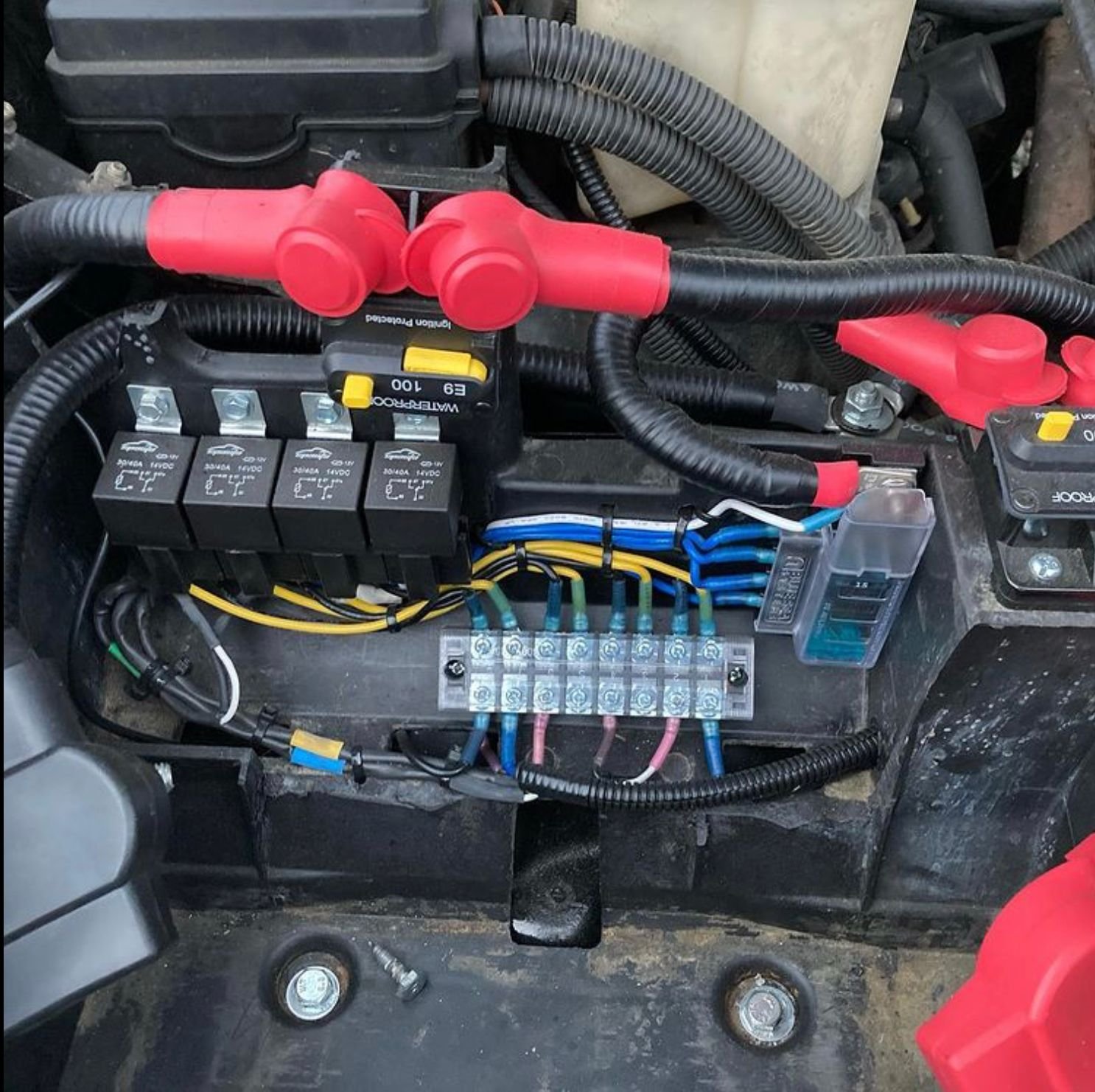

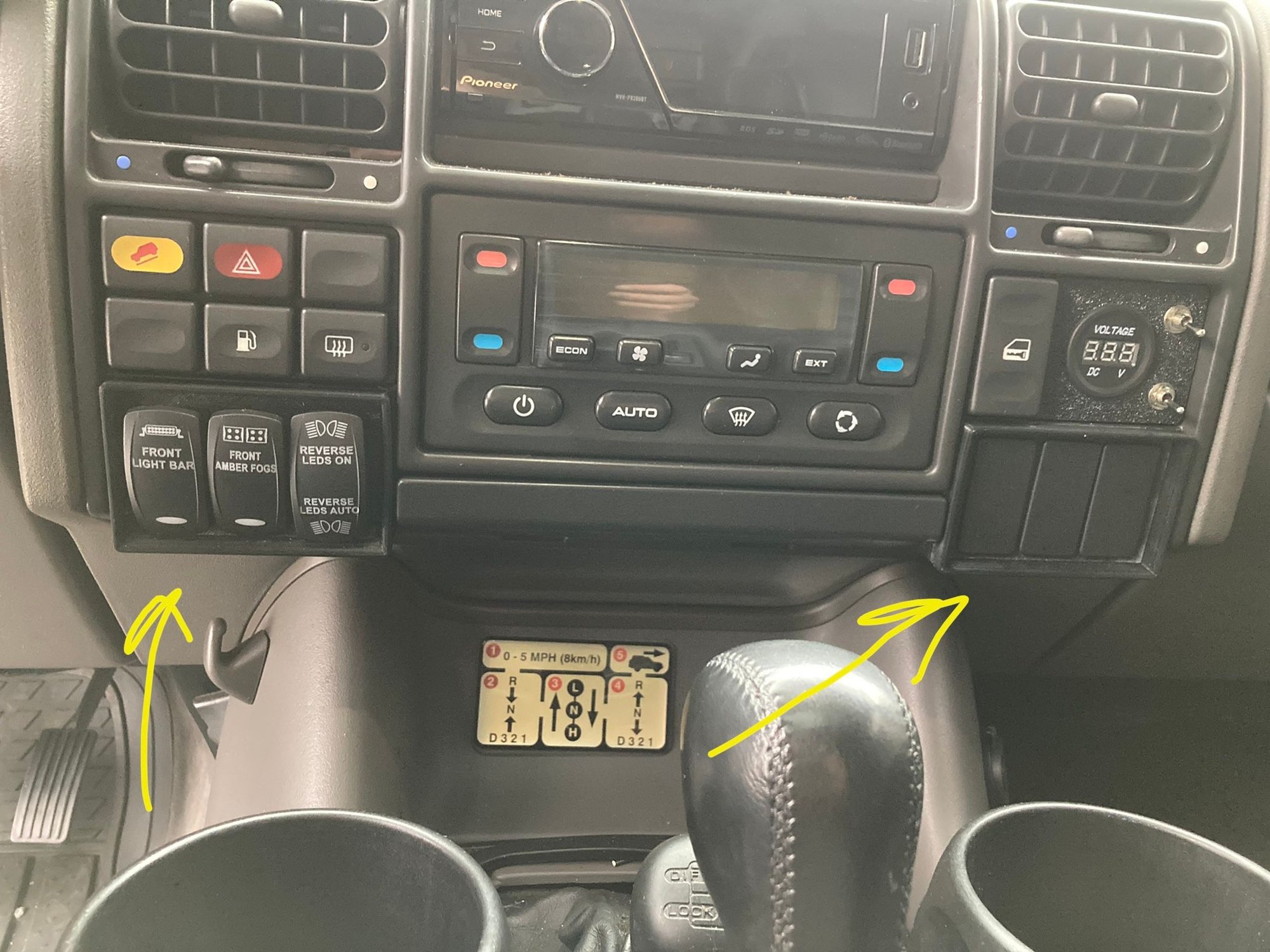

I probably overcomplicated the electronics, but that’s what engineers do. Entire rear section can be shut off with master cut off. 12v sockets are always powered when master is on, but USBs are only powered when ignition is on. There is an ignition override switch in the dash to allow USBs to be powered with ignition off. Battery monitor in the rear to, well, monitor consumption while parked at camp site and electronics are being used. Larger single battery for now, duals eventually. Circuit breakers and relay bank for addition exterior lighting housed in heavily modified battery box. All main grounds in engine bay upgraded. 4ga marine wire run to rear sub panel along frame inside of conduit.
Rear door speakers and cargo door subs relocated (subs were junk so we’re replaced). This being a Westminster edition it has the 12 speaker Harmon Kardon audio system. Previous owner installed the aftermarket head unit, but it’s still using the OEM amp.
Still working on the rear door so it’s not shown. It will have relocated handle, and fold down prep surface, etc. others on here have done.
Will post more pics as the project evolves. I did the fun stuff first and now working on fixing the mechanicals.
Let me know if you have any questions.
-Brad

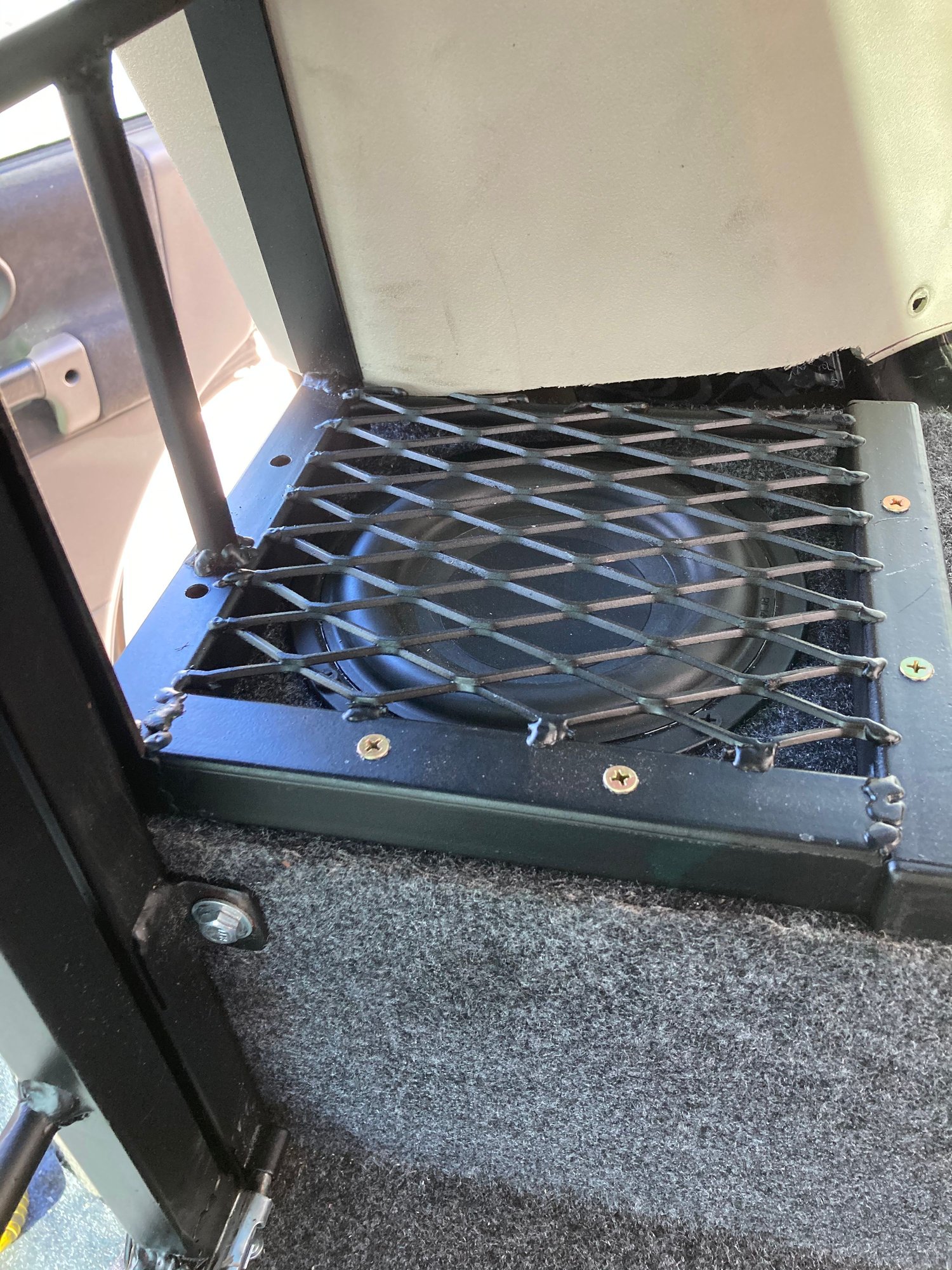

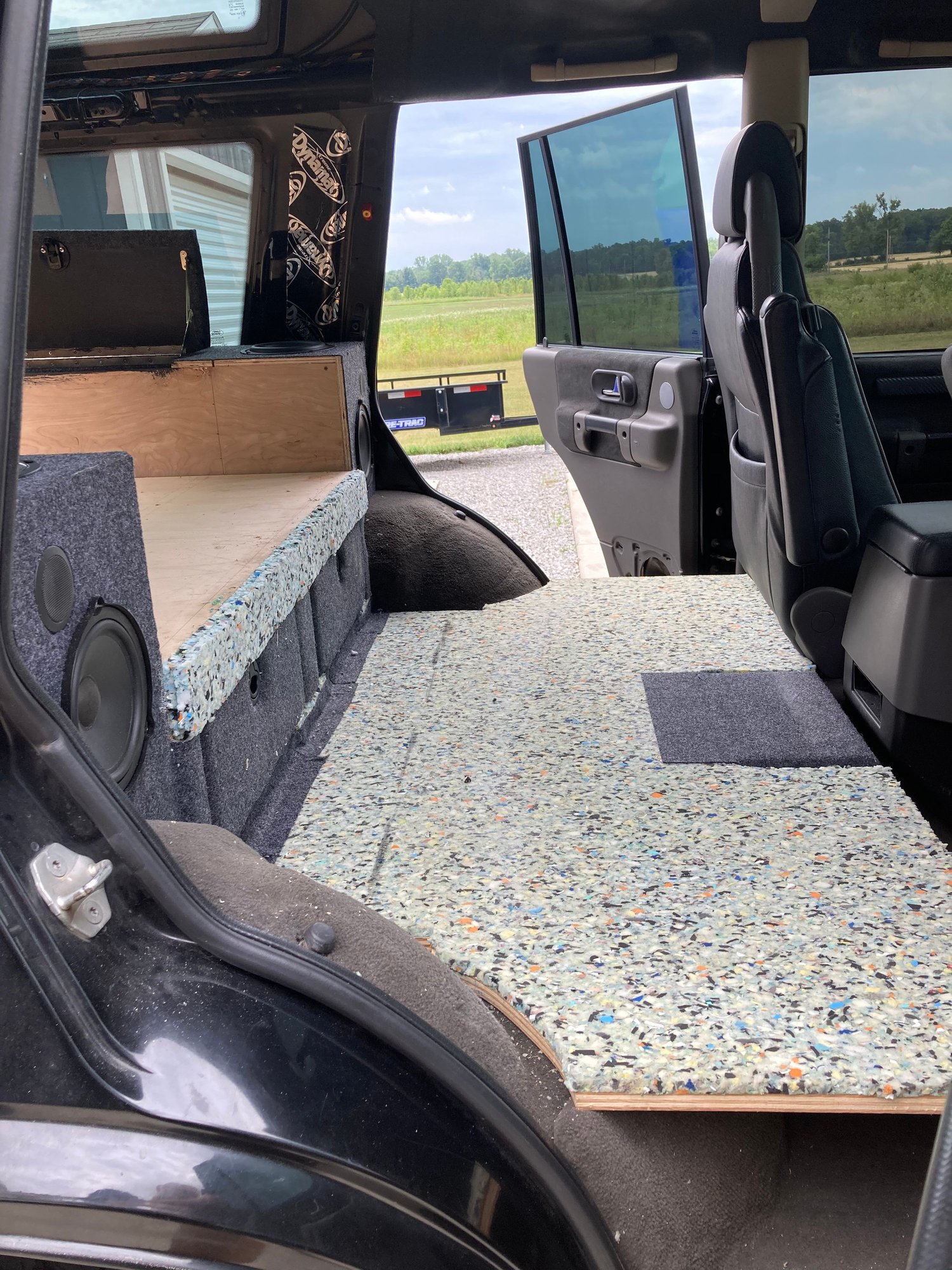

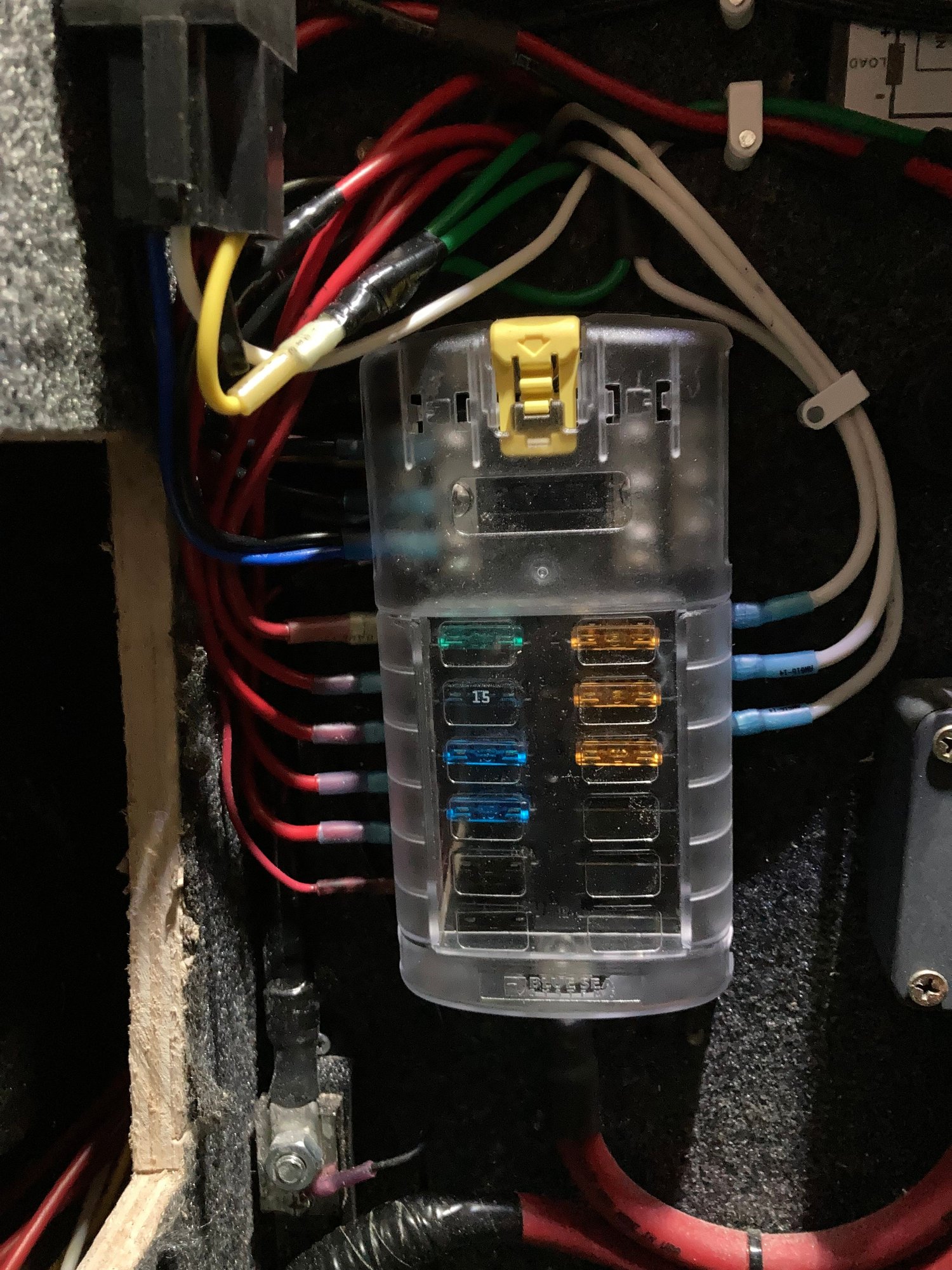

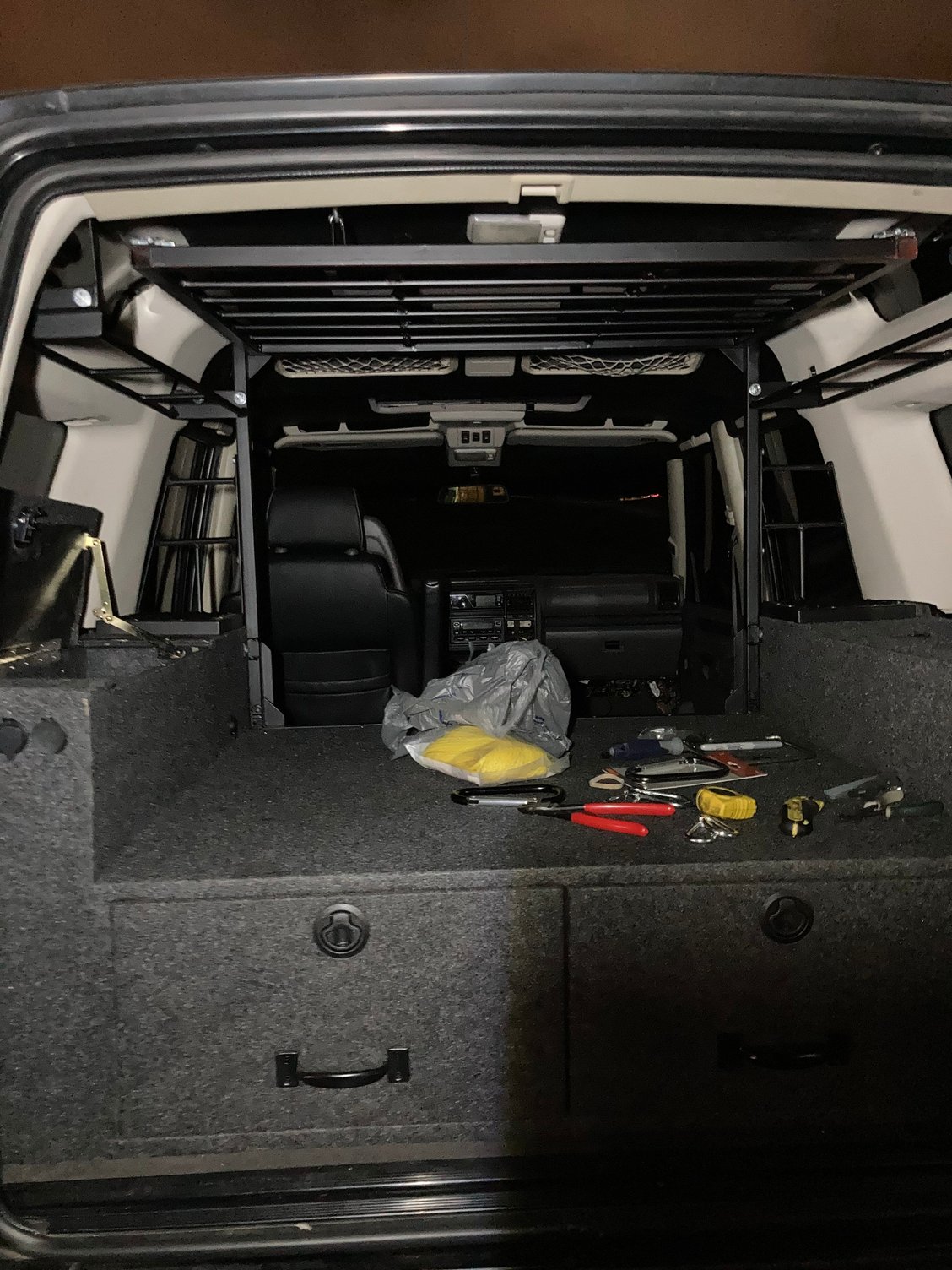

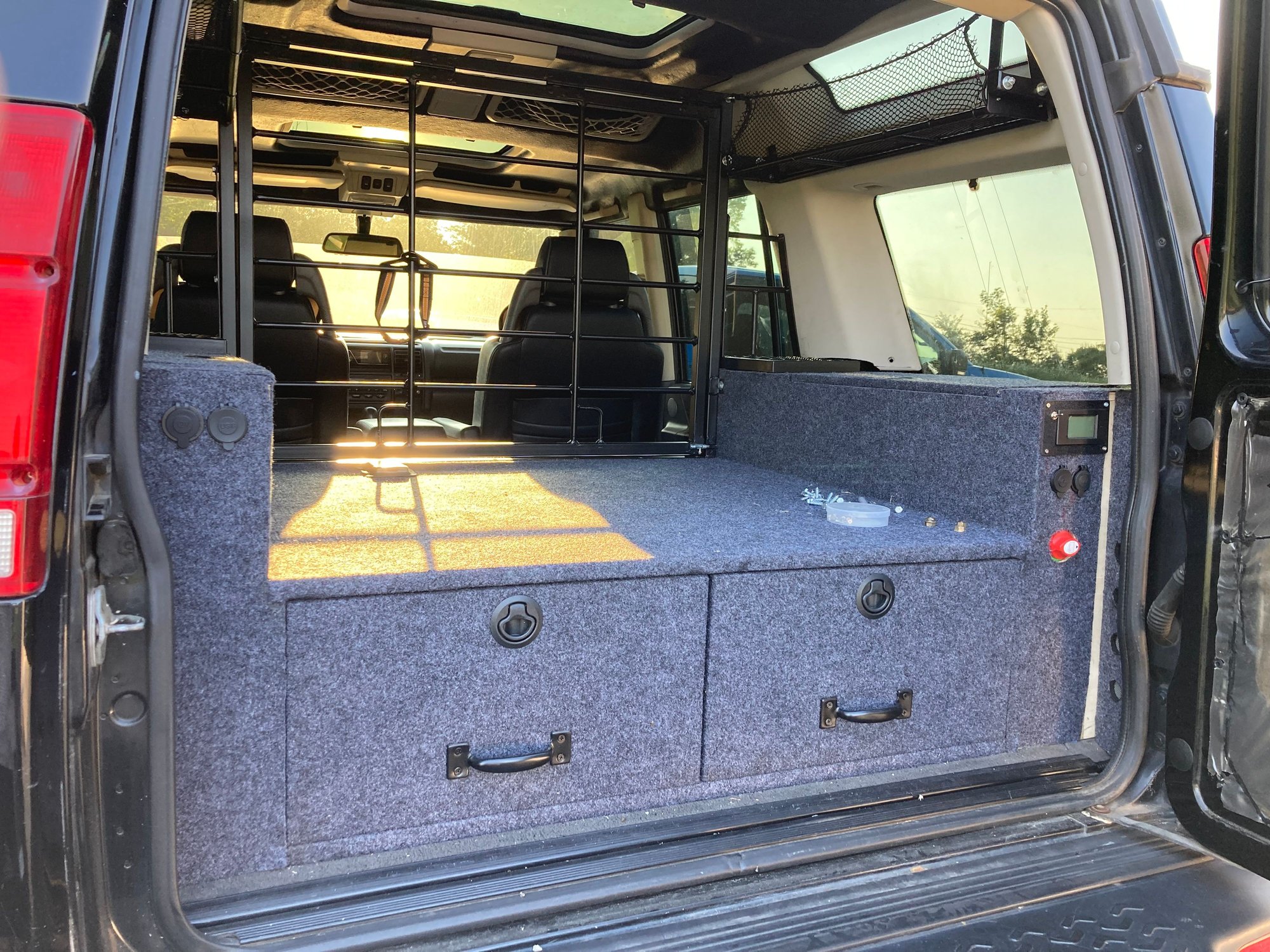

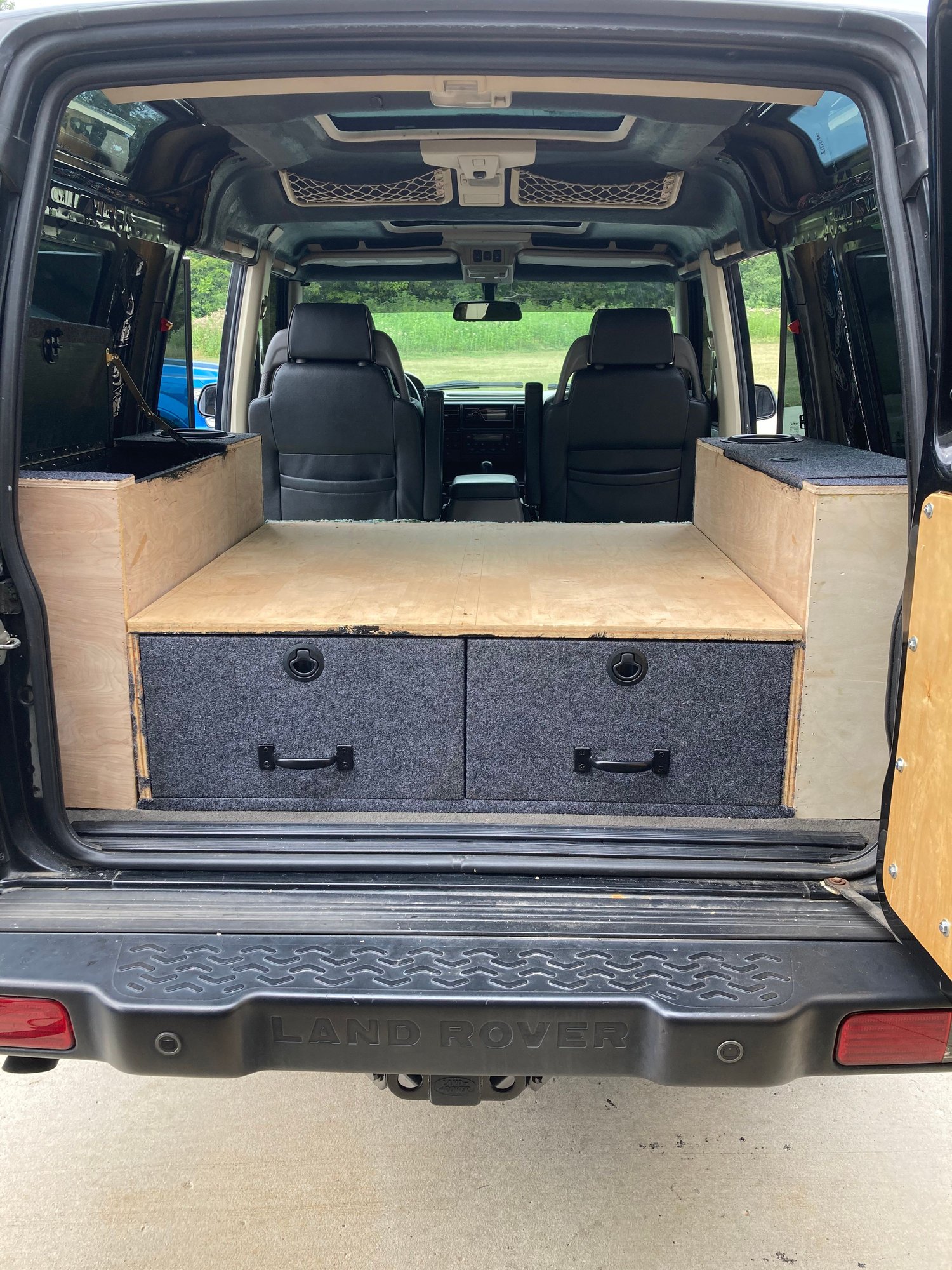

Rear seats removed and cargo area gutted. Drawer system base installed. Side bins and platform set in place. View of front cubbies. Rear drawers and side compartment lids in place Two layers of padding for the dog bed area. Platform is bolted to rear seat attachment points and supported in front with feet to the floor. Detailed pic of speaker layout. Relocated rear door speakers with new subs in top (OEM from rear cargo door were shot). Yes, speaker cambers are ported and tuned for the subs. Cage and alpine racks in place and interior panels back in. View of cage gate open and latched to aircraft cable strung across the alpine racks Cargo cage installed. Filler panel on the right has holes drilled for cabin vent to the outside. (Loose in this pic to access wire runs. Rear seat area now a padded dog area. Speaker grilles in place. Cubbies below cage are large enough to hold two gallons of water each plus some. Protective sub grille integrated into cage. Interior sub panel for 2x 12v, 1x 30A Anderson socket, 1x refrigerator, 3x USB charging ports, and room to spare. 4ga marine wire run along frame in conduit. Wired and fused. Interior master cut off, Battery monitor, 12v and USB sockets. 3D printed rocker switch panels. (L): light bar, amber fogs, and two function LED backup lights (ON/Auto ON in reverse). Volt meter in place of clock with power switch, and ign off override switch for power to USB charging sockets. Heavily modified battery box. 2x 100A breakers, relay bank for addition exterior lighting. Currently single Group 65 AGM battery.
Disco 2 Overland Interior Build (Lots of pics)
