I'm new to Land Rovers and also to the forum.

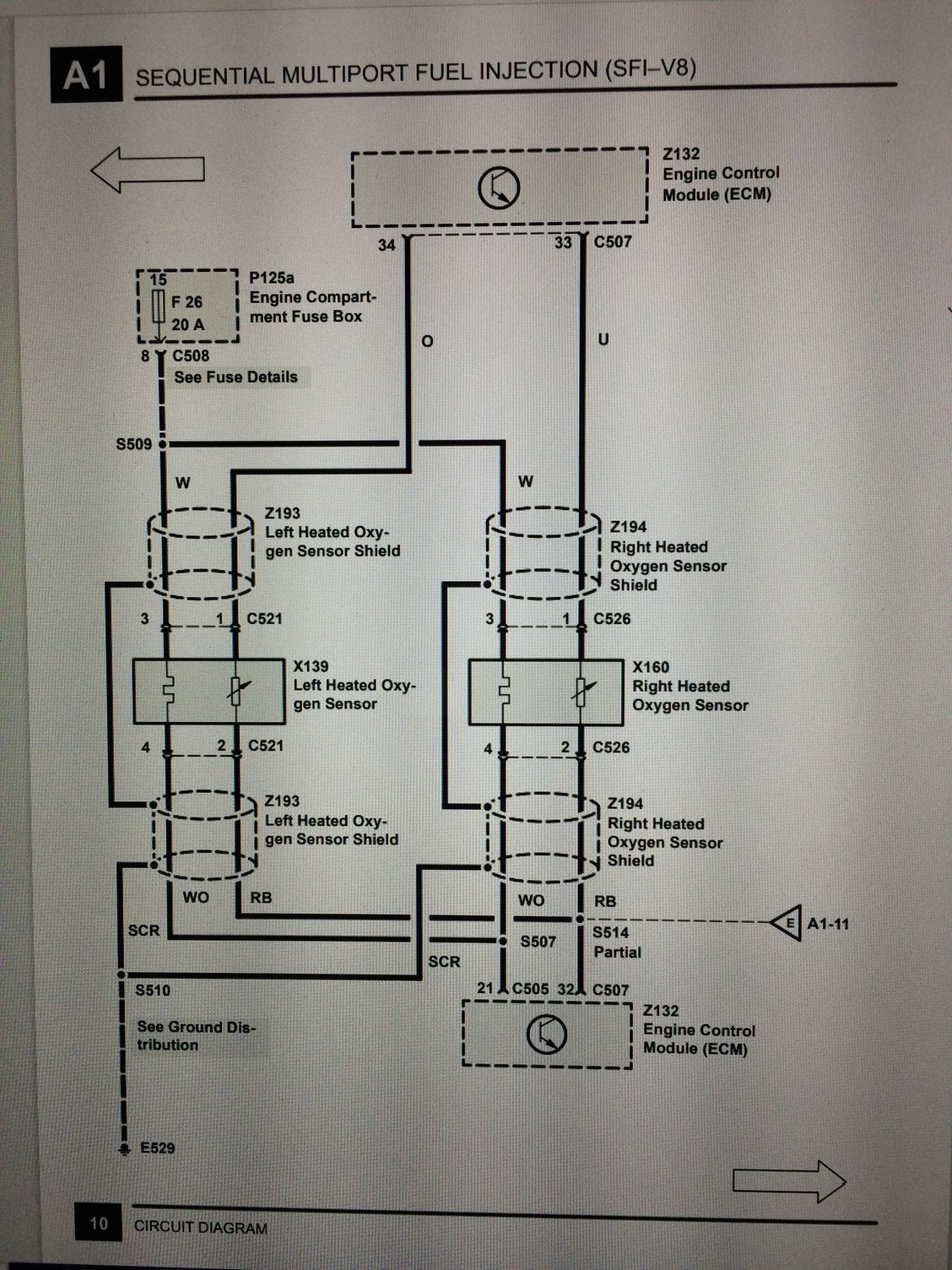

I'm having some trouble with my drivers side o2 sensor and I'm looking for a wiring schematic/ pinout for the o2 sensors and the ECU.
Here's what's going on so far:
I was getting a 02 heater fault on the bank 1 sensor 1, so I replaced the sensor with no change.
I checked voltage at the connector and referenced the passenger side to compare and It appears that im not getting voltage on pin 1 as your looking at the connector (see pic) its the yellow wire on sensor or brown/ blue wire on harness.
I also tested behind the harness plug.
So im guessing its in the harness or the ECU?
If anyone can steer me in a direction it would be appreciated, I've spent some time searching the forums with no luck.
Hello Big! According to my work on my 96 Disco 4.0, Red (+)/White (-) are the heater wires and Black (-)/Yellow (+) are the signal wires. With an OBD scanner we can see real time O2 signals and fuel trims. Do you have a scanner?
I spent a lot of time tracking down problems with O2 sensors. Turns out we get really poor gas mileage (~9 mpg) with O2 sensor problems. I get 14 - 16 mpg now that the problems are solved. The OBD scanner was the key to solving the problems, (and changing the bad sensor). Now I can check my long term, short term fuel trims, and O2 sensor signals from time to time and see that everything is A OK.
Does this help? There are files available for the Electrical Test Manual (ETM) with wiring diagrams, component locations, and test procedures, just make sure you look at the correct year/model. I am not sure where to find the files to download, but I'm sure someone in the forum will know.
Hi John,
Thanks so much for the reply! so it looks like I have an open on the yellow wire (signal +) so I just nee to figure out where that pins out on the ECU.
I have a Carsoft scanner and my Torque app on my phone.
I REALLY need a wiring diagram.
So as I was troubleshooting the sensors today my starter went out, I love my British Ford hahaha!
Hi John,
Thanks so much for the reply! so it looks like I have an open on the yellow wire (signal +) so I just nee to figure out where that pins out on the ECU.
I have a Carsoft scanner and my Torque app on my phone.
I REALLY need a wiring diagram.
So as I was troubleshooting the sensors today my starter went out, I love my British Ford hahaha!
All the manuals you will probably ever need can be downloaded from the google drive linked in my signature. Help yourself.
