Asking before I do the job, is this right?
no no no.. bloody hell. i meant your signature. i don't know how i missed you have a 95 D1 its big and red and in your signature.
if you need help with the ABS system check out page 101-106 in the 1995 Electronic Troubleshooting Manual in the RAVE. It shows you where every relay is
if you need help with the ABS system check out page 101-106 in the 1995 Electronic Troubleshooting Manual in the RAVE. It shows you where every relay is
Camel Trophy
Joined: Feb 2007
Posts: 4,959
Likes: 11
From: Tulsa, OK
There is a little confusion going on here, I think.
The Yellow check engine light will display codes under the passenger seat on the LED display.
The Red service engine light is an emissions reminder that can be reset by inserting a paper clip properly into the Tan Emissions reminder relay under the passenger side of the dash.
The Yellow ABS light can be read by the proper blink code procedure as found in the sticky. I would take a picture of the ABS relay you need to pull, but I don't have a 95 handy. RAVE will have it. Just look.
The Yellow check engine light will display codes under the passenger seat on the LED display.
The Red service engine light is an emissions reminder that can be reset by inserting a paper clip properly into the Tan Emissions reminder relay under the passenger side of the dash.
The Yellow ABS light can be read by the proper blink code procedure as found in the sticky. I would take a picture of the ABS relay you need to pull, but I don't have a 95 handy. RAVE will have it. Just look.
Last edited by okdiscoguy; Dec 9, 2010 at 01:21 PM.
I have the yellow Check Engine light and the yellow Anti Lock Brake. The LED box under my passenger seat does NOT work. The previous owner for some reason cut the wires. I need to pull the ABS relay to do the blink method using a paper clip. I'm looking in the RAVE manual now but I can't find it. I've tried searching "ABS" "Anti Lock Brake" "ABS relay" "Anti lock brake relay" ABS switch" "Anti Lock Brake Switch" etc..
All I found is the main relay, inertia switch, etc.. closest I found is the ABS fuse in the fuse box
All I found is the main relay, inertia switch, etc.. closest I found is the ABS fuse in the fuse box
Last edited by calebbo; Dec 9, 2010 at 12:58 PM.
RELAYS AND FUSES ABS
The location and identification of ABS electrical relays are given in the Electrical Troubleshooting Manual
For location and identification of ABS electrical fuses. See ELECTRICAL, Repair, Fuse Box - Interior or. See ELECTRICAL, Repair, Fuse Box - Engine Compartment
- RAVE
The location and identification of ABS electrical relays are given in the Electrical Troubleshooting Manual
For location and identification of ABS electrical fuses. See ELECTRICAL, Repair, Fuse Box - Interior or. See ELECTRICAL, Repair, Fuse Box - Engine Compartment
- RAVE
Camel Trophy
Joined: Feb 2007
Posts: 4,959
Likes: 11
From: Tulsa, OK

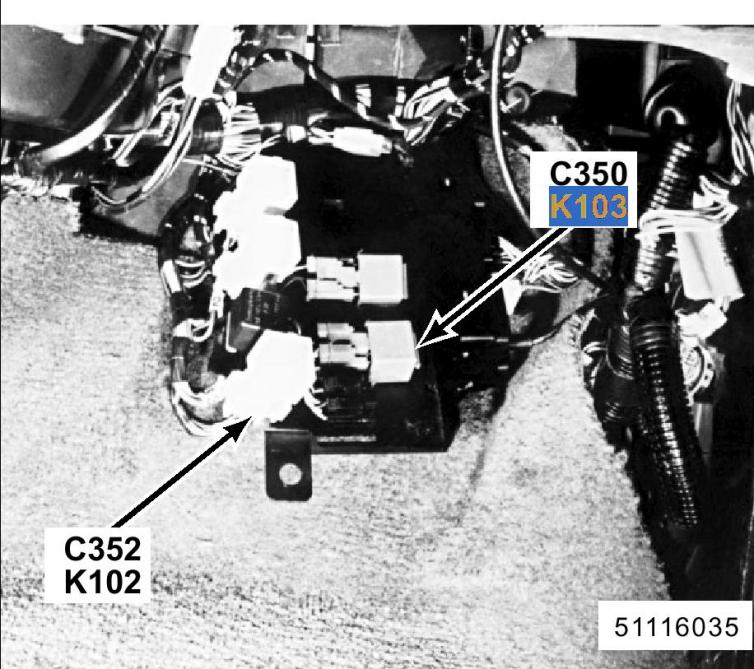

Yeah, you have to open the electrical first, not the workshop manual. Here is a pic of the lamp relay from Rave It is K103. This is behind the black cover on the passenger side. There is a group of relays on a bar. Loosen the nut on the front of the bar, and it will lay down and give you acces to the relays.
Yeah, you have to open the electrical first, not the workshop manual. Here is a pic of the lamp relay from Rave It is K103. This is behind the black cover on the passenger side. There is a group of relays on a bar. Loosen the nut on the front of the bar, and it will lay down and give you acces to the relays.
when you open the rave it bring up some sunset picture at the beach. click discovery, brings up a picture of a disco 1 climbing some rocks. in that menu on the left scroll down to Electrical Troubleshooting Manuals, the first one is for your truck specific to 95 D1's
