Installing Magnecors

Thread Tools

Search this Thread

Old Aug 19, 2009 | 12:46 PM
  #1
dynomite's Avatar
Thread Starter
|
Mudding
Joined: Apr 2008
Posts: 179
Likes: 1
From: Lakeland, FL
Default Installing Magnecors

I got my 8mm magnecors in. I'm changing them out after work today. Any tips? I've looked around the forum and found some stuff. I'm looking for some last minute, don't do this or remember to do that type stuff. Thanks

Reply
Old Aug 19, 2009 | 01:19 PM
  #2
jycsalas's Avatar
Super Moderator
Joined: Aug 2008
Posts: 1,174
Likes: 106
From: Middle of Caribbean
Default

Yeah, put them in the right order.

Reply
Old Aug 19, 2009 | 01:25 PM
  #3
Torancis_LR's Avatar
Rock Crawling
Joined: Apr 2009
Posts: 377
Likes: 4
From: Chicago, IL
Default

Follow the 'sticky' on the Disco page.

Reply
Old Aug 19, 2009 | 01:43 PM
  #4
JBEGIN's Avatar
Winching
Joined: Apr 2008
Posts: 509
Likes: 0
From: Latham, NY
Default

as you pull the existing wires, match each one up to the new one as close as you can,
work methodically, and double check when done that everything is correct.

Reply
Old Aug 19, 2009 | 01:53 PM
  #5
lipadj46's Avatar
TReK
Joined: Oct 2008
Posts: 3,106
Likes: 8
Default

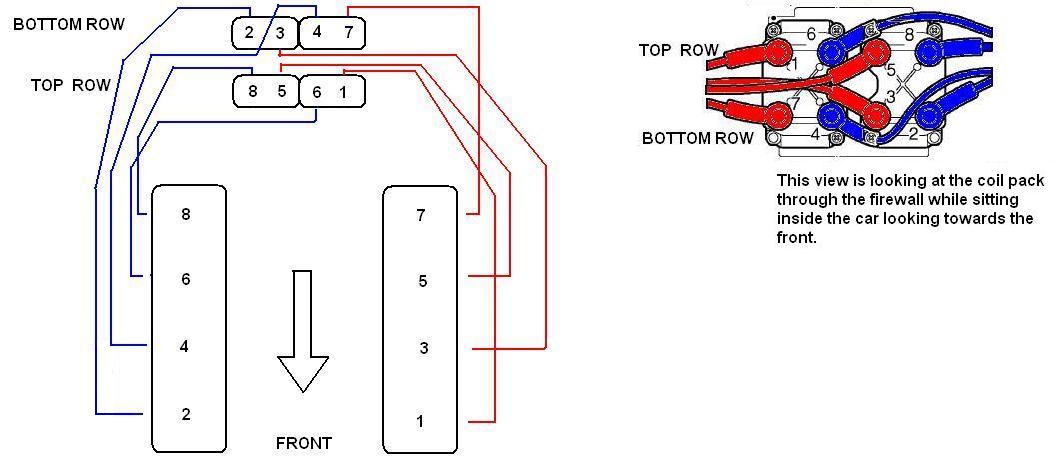

If you are mechanical remove the upper intake manifold, if not just take it slow and try not to get too frustrated or hurt by falling off your engine. In case you don't see jyscalas' attachment here is the firing order

Attached Thumbnails Installing Magnecors-dii-firing-order.jpg
Reply
Old Aug 19, 2009 | 01:54 PM
  #6
AnnelieseMae's Avatar
Mudding
Joined: Aug 2008
Posts: 230
Likes: 0
From: Traverse City, Michigan...currently in Jerome, AZ!
Default

Originally Posted by lipadj46
If you are mechanical remove the upper intake manifold, if not just take it slow and try not to get too frustrated or hurt by falling off your engine.
Or by hurting your fingers...those are some tight spaces!

Reply
Old Aug 19, 2009 | 02:00 PM
  #7
StevenDiscoII's Avatar
Mudding
Joined: Jan 2007
Posts: 160
Likes: 0
From: San Diego, CA
Default

A simple hint: Wires used on the left cylinder bank are to be little longer than the ones used on the right bank, meaning Cyl. 1 will be little longer than Cyl. 2, Cyl. 3 longer than Cyl. 4, etc. Reason: The left bank is offset forward from the right one.


Last edited by StevenDiscoII; Aug 19, 2009 at 07:05 PM.
Reply
Old Aug 19, 2009 | 02:02 PM
  #8
lipadj46's Avatar
TReK
Joined: Oct 2008
Posts: 3,106
Likes: 8
Default

For the price you think magnacor would not be so stingy with the length. IMO each wire needs to be about an inch longer.

Reply
Old Aug 19, 2009 | 02:12 PM
  #9
StevenDiscoII's Avatar
Mudding
Joined: Jan 2007
Posts: 160
Likes: 0
From: San Diego, CA
Default

Originally Posted by lipadj46
For the price you think magnacor would not be so stingy with the length. IMO each wire needs to be about an inch longer.
Actually, I just recently purchased a set and the wires were about an inch longer than set I got 2.5 years ago. It was really a trick to make them work. The last set was OK.

Reply
Old Aug 19, 2009 | 02:13 PM
  #10
JBEGIN's Avatar
Winching
Joined: Apr 2008
Posts: 509
Likes: 0
From: Latham, NY
Default

yes they dont give u much extra do they? LOL
i did mine and got to the last one and it was about four inches short, so then i got all frustrated and removed them ALL and started over...
