First time coming here to post, but ive found this a really useful resource for my old disco 2 back in Australia, and my 2012 LR4 here in california.

Ive just tried to install a new airplay box in my LR4, and everything looked really promising - the connectors were all correct, and things went together exactly where they should.

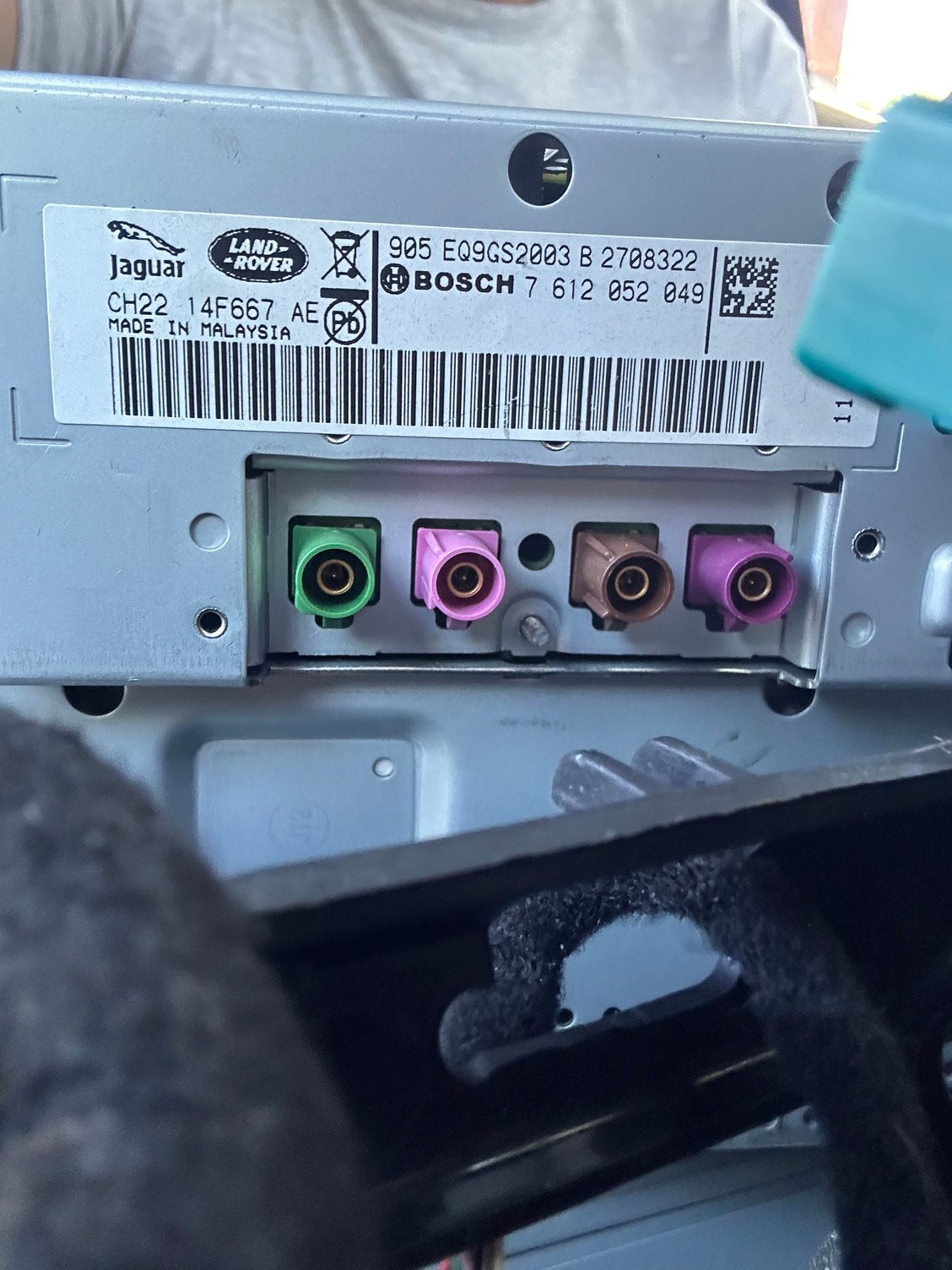

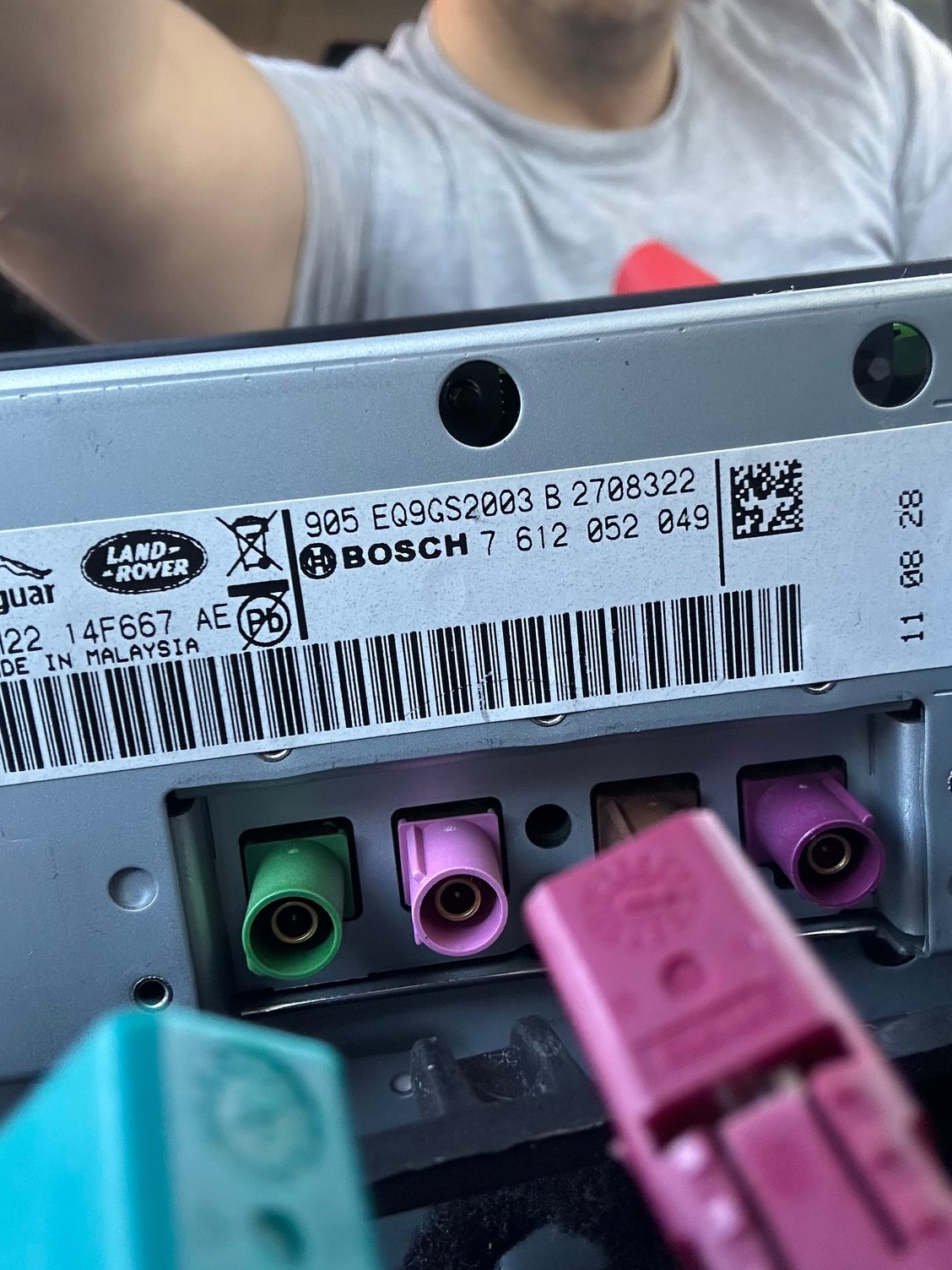

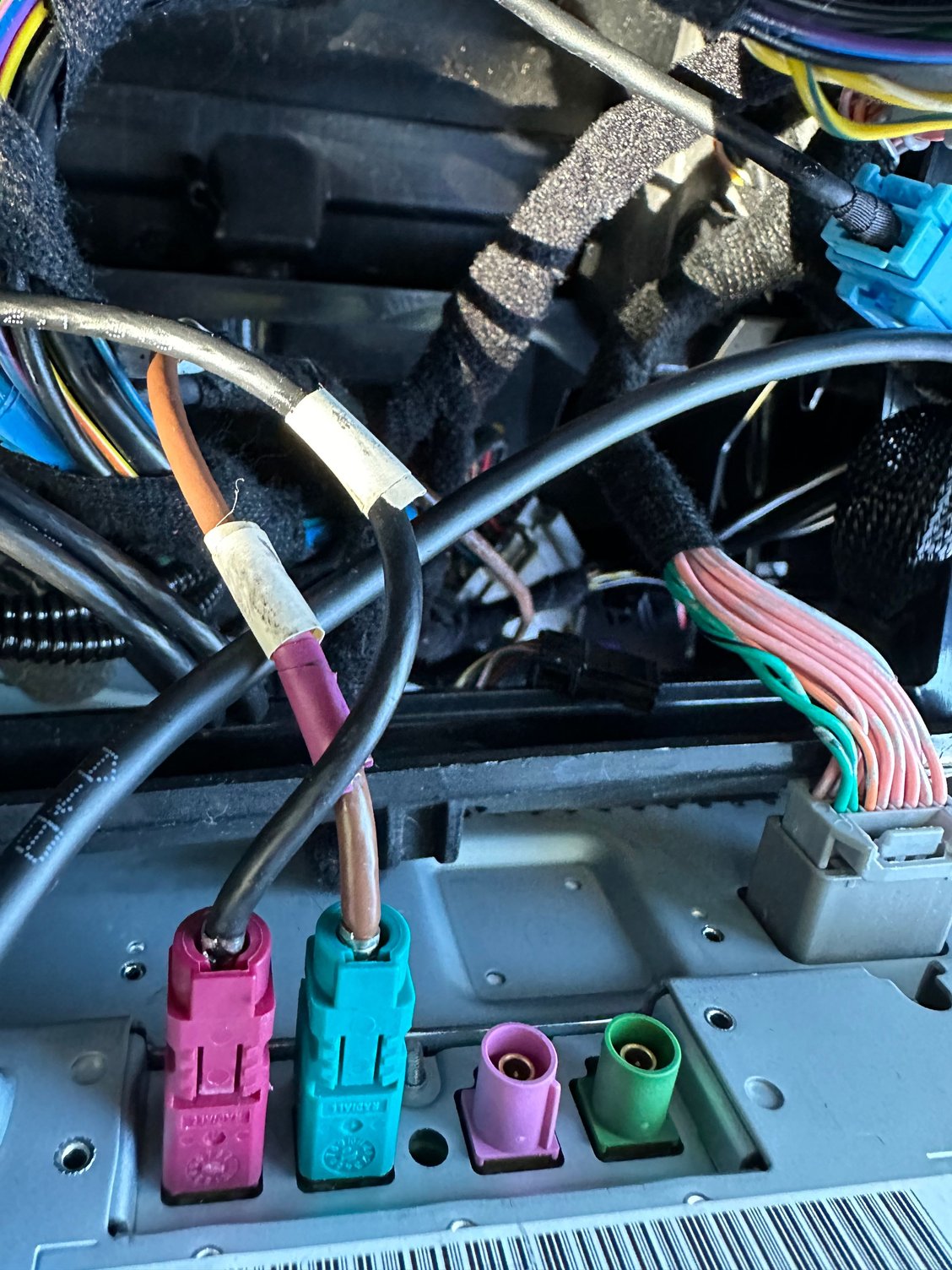

My only 2 issues - first, my partner took the cables out of the Bosch screen unit, so I didnt see what went where, and the plugs just dont match the colours of the head unit!! Attached is what I see, any chance anyone has a 2012 HSE and knows whats supposed to go where?? Or even what these coaxial connections go to?? Everthnig seems to work ok

And second, and I think unrelated is my AV controls (Home, Nav, Phone, Setup, volume up and down and power buttons - that whole unit have stiopped working. Ive taken the plate off again, reseated both the cables that go to it, and even tried wtihout the intercept that the airplay box uses, and still they dont seem to be recognised.

Any ideas what might be going on? Im leaning towards something wrong wiith the new carplay box, but its going to take me hours to get it all apart again and uninstall it all. Ive dont some continuity tests to where it looks like the cables from this control plate go to the screen, and the ones I can see there all show continuity just fine. Is there anytthing that goes wrong with these??

Thanks all!

~ Dan



Oops - video file didnt uppload. See attached.
