Default O2 Sensor Wiring Help

My catalytic converters were stolen and in the process they ripped my O2 Sensor connector plug. I have replaced the cats and O2 Sensors from Atlantic British and now I'm trying to figure out which wire color goes where so I can connect my O2 Sensor to the Main Wiring Harness.

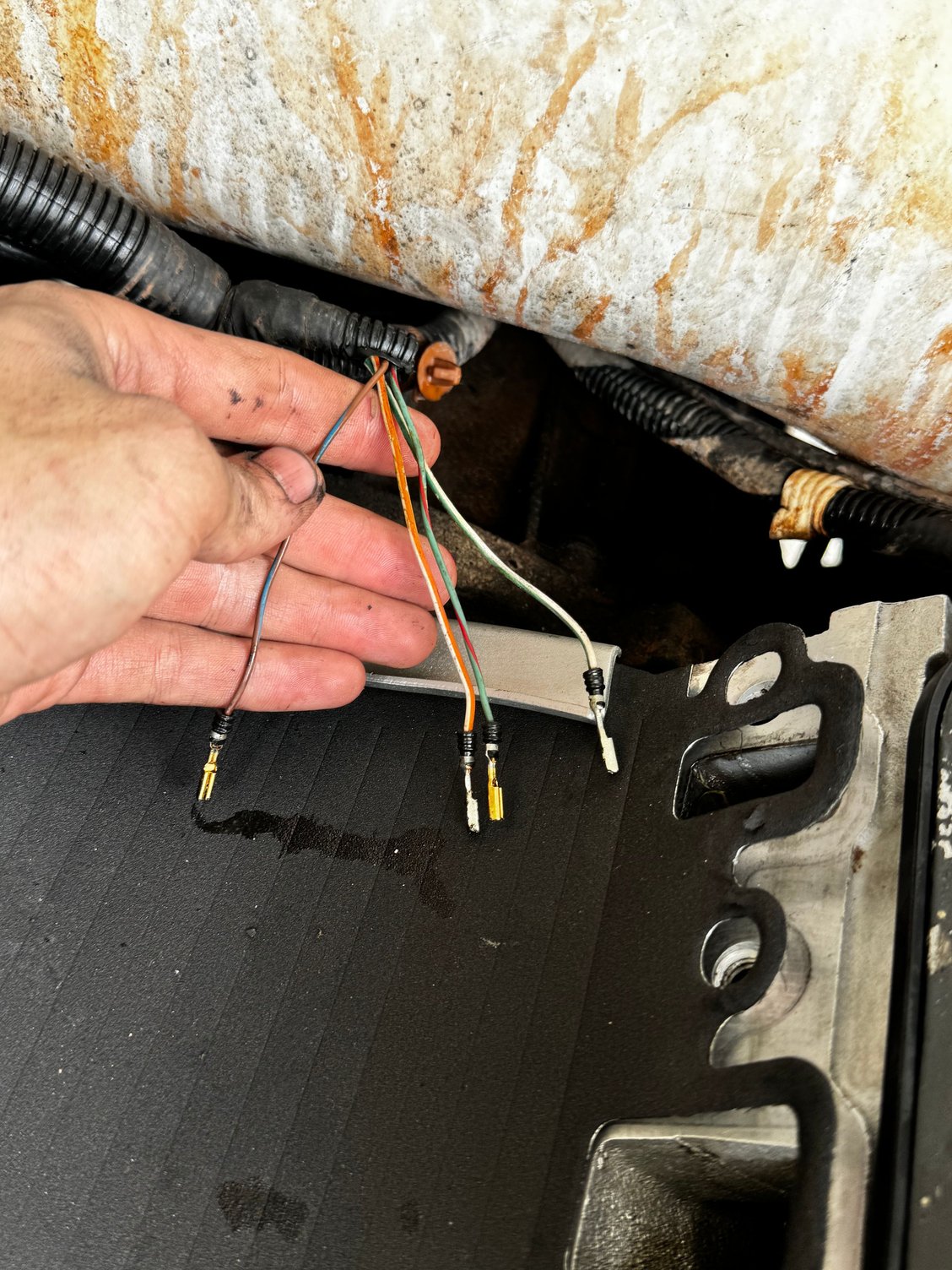

I am working on my front LH (Driverside) O2 Sensor. Vehicle is a 1999 Land Rover Discovery 1 SD. The colors of the wires on my new O2 Sensor Plug are RED, BLACK, BLUE, WHITE, I've attached a diagram I made. The colors on my vehicle's main wiring harness are GREEN/WHITE, GREEN/RED, ORANGE/WHITE, BLUE/BROWN. I've attached a photo showing the coloring. My question is, which colors match up? Thanks in advance!


Attached Files
File Type: pdf
O2 PLUG COLORS.pdf (15.5 KB, 39 views)
Reply
Old Nov 4, 2024 | 03:09 PM
  #2
WaltNYC's Avatar
TReK
Joined: Mar 2010
Posts: 2,782
Likes: 628
From: NYC
Default

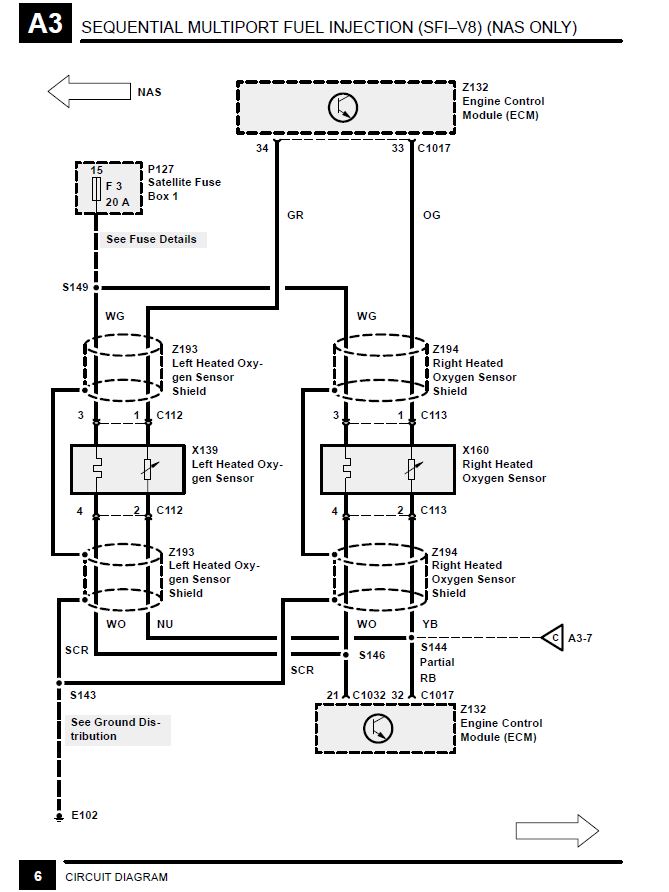

Pin numbers are gonna be the key here

GR - 1 green red
NU - 2 brown blue
WG - 3 white green
WO - 4 white orange


The manuals are available in the google drive linked in my signature. Download them as you like.

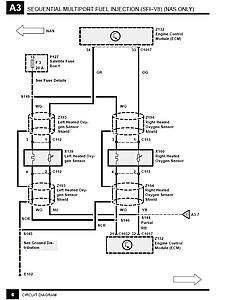

Attached Thumbnails O2 Sensor Wiring Help-o2-sensor.jpg
