My PC with the RAVE just crapped out, tried finding this in posts, but couldn't:

I pulled the wires and wrote down how they were on the coil:

Standing in front of car I have the following "coil configuration":

Top row, passenger side to driver's side: 8 5 6 1

Bottom row, passenger to driver's side: 2 3 4 7


Can someone lease confirm, just want to make sure as I did the first few BEFORE my first coffee....


Thanks!



Here you go.
DISCO II COIL LAYOUT

TOP

PASS. SIDE DRIVER SIDE
8 5 6 1
2 3 4 7






BOTTOM



Thanks Mike! Glad I did it right, cause I just finished the bottom row...

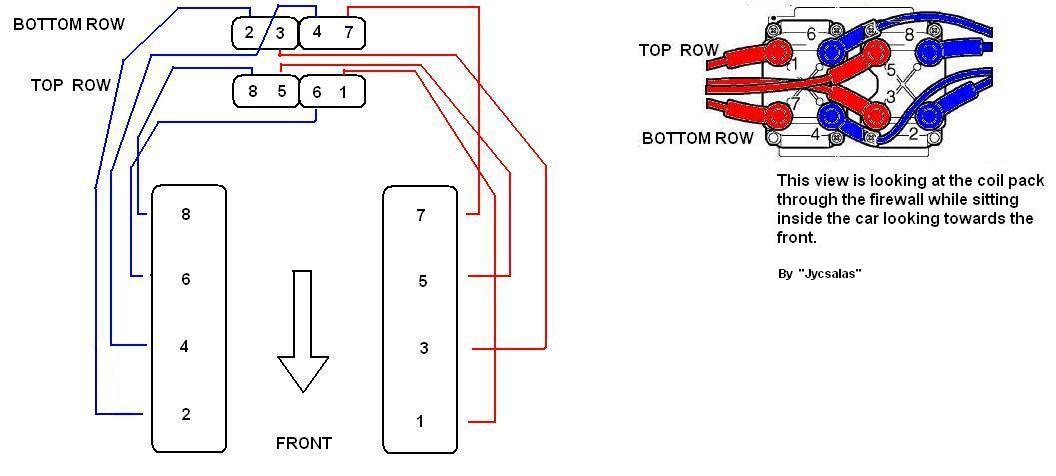

Here is a picture of it for next time... or anyone else..
