I'm hoping someone can shed some light on the location of the passenger side front impact sensor? It threw the code B0098 which is right side restraint impact sensor 3 my scanner says? I'm having trouble tracking down its location inside the Truck.
Thanks in advance for the help!
Thanks in advance for the help!
Rock Crawling
Joined: Apr 2015
Posts: 256
Likes: 51
From: Belfast, N. Ireland
Hope this helps,

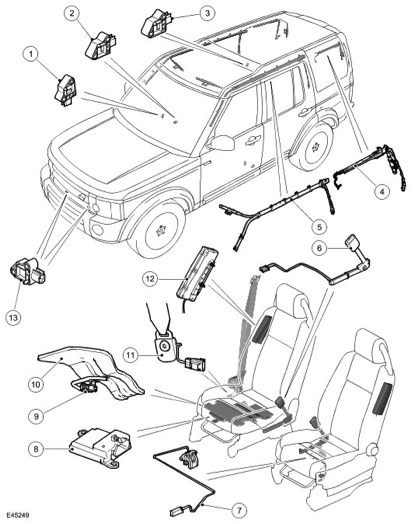

1 - Door side impact sensor
2 - B pillar side impact sensor
3 - Rear quarter side impact sensor
4 - Third row side air curtain
5 - First and second row side air curtain
6 - Safety belt pretensioner and buckle switch
7 - Seat position sensor
8 - Occupant classification module (NAS only)
9 - Seat cushion pressure sensor (NAS only)
10 - Seat cushion pressure pad (NAS only)
(Read in conjunction with Thumbnail 1)
IMPACT SENSORS
(Thumbnail 2)
Impact sensors are installed in the front and both sides of the vehicle. The use of multiple impact sensors provides shorter air bag trigger times, through faster detection of lateral and longitudinal acceleration, and improves detection accuracy. There are two front impact sensors attached to brackets on the body front support frame, just above each front longitudinal.
There are six side impact sensors located in the passenger compartment, as follows:
One attached to each front door.
One attached to the base of each B pillar.
One installed in each rear quarter, above the rear wheel arch.
Each impact sensor incorporates an accelerometer and a microcontroller powered by a feed from the RCM (restraints control module) . The power feed also provides the interface connection through which the impact sensor communicates with the RCM (restraints control module) using serial data messages. Acceleration is evaluated by the microcontroller and transmitted to the RCM (restraints control module) , which then makes the decision on whether or not to activate the air bags and pretensioners.
1 - Door side impact sensor
2 - B pillar side impact sensor
3 - Rear quarter side impact sensor
4 - Third row side air curtain
5 - First and second row side air curtain
6 - Safety belt pretensioner and buckle switch
7 - Seat position sensor
8 - Occupant classification module (NAS only)
9 - Seat cushion pressure sensor (NAS only)
10 - Seat cushion pressure pad (NAS only)
(Read in conjunction with Thumbnail 1)
IMPACT SENSORS
(Thumbnail 2)
Impact sensors are installed in the front and both sides of the vehicle. The use of multiple impact sensors provides shorter air bag trigger times, through faster detection of lateral and longitudinal acceleration, and improves detection accuracy. There are two front impact sensors attached to brackets on the body front support frame, just above each front longitudinal.
There are six side impact sensors located in the passenger compartment, as follows:
One attached to each front door.
One attached to the base of each B pillar.
One installed in each rear quarter, above the rear wheel arch.
Each impact sensor incorporates an accelerometer and a microcontroller powered by a feed from the RCM (restraints control module) . The power feed also provides the interface connection through which the impact sensor communicates with the RCM (restraints control module) using serial data messages. Acceleration is evaluated by the microcontroller and transmitted to the RCM (restraints control module) , which then makes the decision on whether or not to activate the air bags and pretensioners.
Rock Crawling
Joined: Apr 2015
Posts: 256
Likes: 51
From: Belfast, N. Ireland
Yes, as far as I can make out it's located behind the 'C' pillar lower trim. If you need to fit any new ones they have to be paired to the car by reading the new bar code.
