Harness corrosion, pass side footwell. How do I repair?
#11
#12
Reviving this old thread
ACAMATO- I am experiencing the same problems you were. Thank you for posting this thread, as I cut open the wrapping and discovered the same corrosion. My only problem is, and I am feeling like quite the dunce on this, is how do you open the connectors? They look pretty straightforward, but I have been wrestling with them forever, and can't seem to get them open.
#14
Have since gotten into two of the three. They're so heavily corroded that they basically have frozen together. I have been able to clean them out a bit but still not getting current and lost the cigarette lighter! Drats. It's looking like I might need to replace the connectors but theyre discontinued, correct? Guess I'll be praying Paul has them.
#15
This might just save me

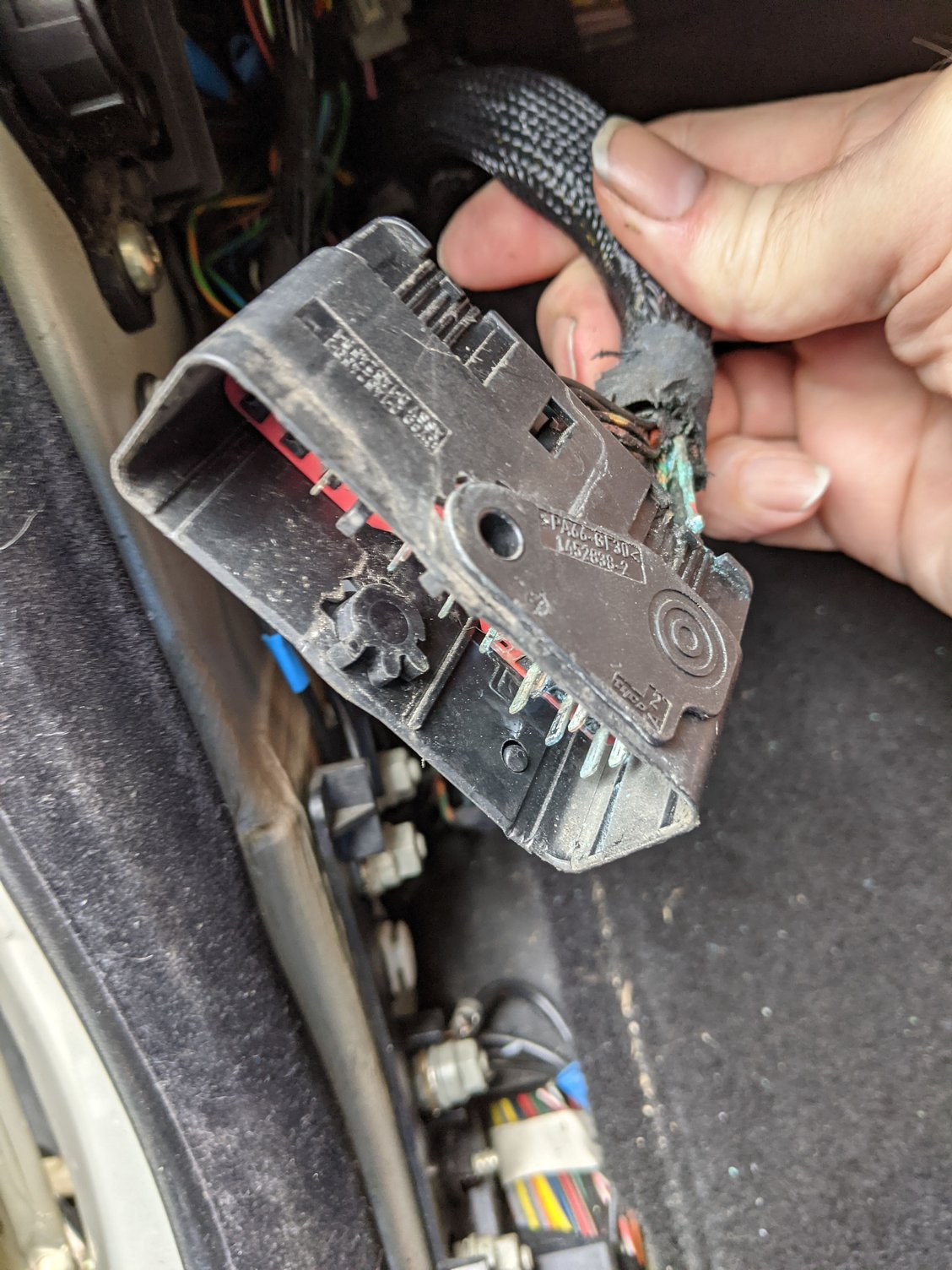

Hi ive been looking for someone that does LR connectors, as ive just become a Discovery 3 Owner and found a few electrical gremlins, the biggest is the Big Door connector as pictured below, it looks like it had water ingress and completely shorted it so its now melted and some of the wires are melted off so needs replacing. Then ive stumbled on this thread and thought someone could help me find one of these connectors so i can re-wire it, and get my door working again. The only other option i can find is to buy a complete wiring loom from ebay at cost of between £100-£200 but then all i need is that one connector, so not the best. If anyone can help me here i would be super appreciated.
You could contact Paul Grant for some used headers, or me for new ones
It's important that you replace them with the header of the same colour, as they are sub-divided differently -
BLACK
Attachment 34524
Sub-divided into five circuits -
Attachment 34525

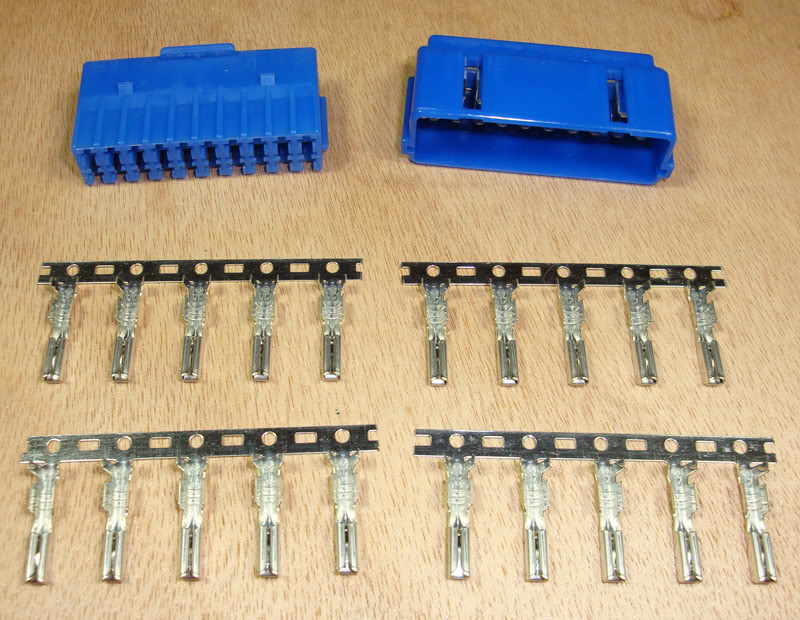

BLUE
Attachment 34526

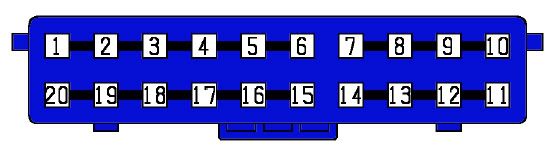

Sub-divided into four circuits -
Attachment 34527
GREEN
Attachment 34528

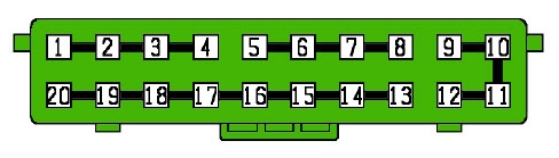

Sub-divided into four circuits -
Attachment 34529
GREY
Attachment 34530
Sub-divided into three circuits -
Attachment 34531

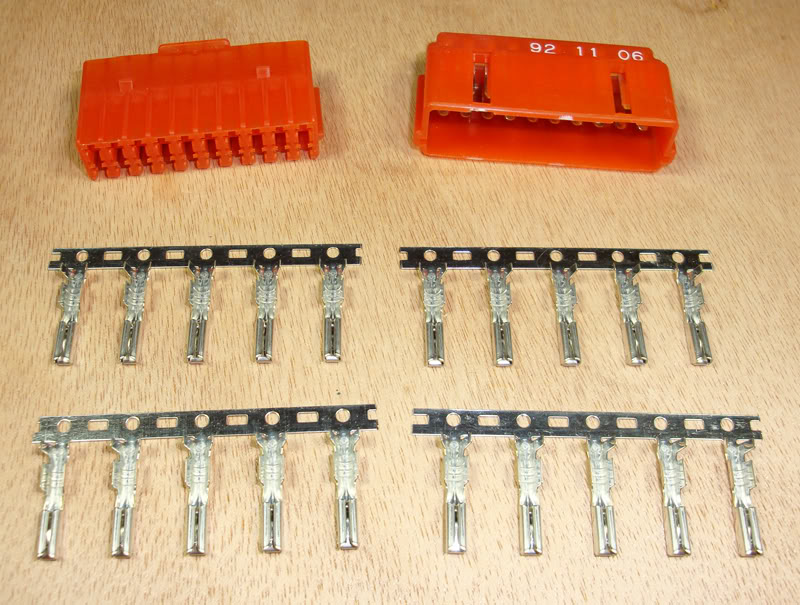

ORANGE
Attachment 34532

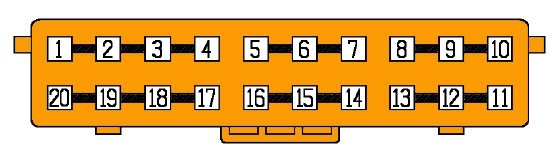

Sub-divided into six circuits -
Attachment 34533
YELLOW
Attachment 34534
Sub-divided into five circuits -
Attachment 34535
Supplied (as pictured above) with a 20-Way Splice Connector, Splice Cap and 20 x Sumitomo 090 Terminals.
They are £12.95 each + Postage from UK
Except for Grey and Blue, which are £19.95 each
.
It's important that you replace them with the header of the same colour, as they are sub-divided differently -
BLACK
Attachment 34524
Sub-divided into five circuits -
Attachment 34525
BLUE
Attachment 34526
Sub-divided into four circuits -
Attachment 34527
GREEN
Attachment 34528
Sub-divided into four circuits -
Attachment 34529
GREY
Attachment 34530
Sub-divided into three circuits -
Attachment 34531
ORANGE
Attachment 34532
Sub-divided into six circuits -
Attachment 34533
YELLOW
Attachment 34534
Sub-divided into five circuits -
Attachment 34535
Supplied (as pictured above) with a 20-Way Splice Connector, Splice Cap and 20 x Sumitomo 090 Terminals.
They are £12.95 each + Postage from UK
Except for Grey and Blue, which are £19.95 each
.
#16
Hi ive been looking for someone that does LR connectors, as ive just become a Discovery 3 Owner and found a few electrical gremlins, the biggest is the Big Door connector as pictured below, it looks like it had water ingress and completely shorted it so its now melted and some of the wires are melted off so needs replacing. Then ive stumbled on this thread and thought someone could help me find one of these connectors so i can re-wire it, and get my door working again. The only other option i can find is to buy a complete wiring loom from ebay at cost of between £100-£200 but then all i need is that one connector, so not the best. If anyone can help me here i would be super appreciated.
https://www.ebay.com/str/landroverconnectors
