GAP IID Tool Summary
Mudding
Joined: Jan 2025
Posts: 103
Likes: 36
Hi Guys ,
I have upgraded my headlights from the standard version to Matix . I had followed the instructions provided on GAP Q&A section :
Menu–Car Config–Complete List;
CCF Node Current Value Change To
MultiCAN-679 HeadlightsVariant Headlamp_Variant_Mid_C Variant_high_A/B/C (based on region)
MultiCAN-636 AdaptDrvBeam Disabled Enabled
MultiCAN-706 Dyn Bending Light Not fitted Fitted
MultiCAN-693 ADB Initialisation Not fitted Fitted
But the ADB option is not available in the Menu - Exterior Lights - Adaptive Driving Beam, but in my CCF report I can see
I have upgraded my headlights from the standard version to Matix . I had followed the instructions provided on GAP Q&A section :
Menu–Car Config–Complete List;
- MultiCAN-636 AdaptDrvBeam set to AdaptDrvBeam Enabled
- MultiCAN-679 HeadlightsVariant set to Headlamp_Variant_High_A ( in my case it is " _C " as it is NAS Defender , but it was tested with _A just n case)
- MultiCAN-674 AFS123 set to AFS123 Enabled
CCF Node Current Value Change To
MultiCAN-679 HeadlightsVariant Headlamp_Variant_Mid_C Variant_high_A/B/C (based on region)
MultiCAN-636 AdaptDrvBeam Disabled Enabled
MultiCAN-706 Dyn Bending Light Not fitted Fitted
MultiCAN-693 ADB Initialisation Not fitted Fitted
But the ADB option is not available in the Menu - Exterior Lights - Adaptive Driving Beam, but in my CCF report I can see
- EUCD-014 Headlights, Type
Matrix LED AFS123/IHB
what part number headlights did you go with? Where did you source them?
I’m very interested in doing this also, in the US.
4wd Low
Joined: Jul 2025
Posts: 12
Likes: 8
I am still playing with the GAP tool. The PIVI reset has been done number of times
, No luck yet. Check this out it might be helpful as I have seen your post where premium/ matrix was discussed.
https://docs.google.com/spreadsheets..._Gy8-J/pubhtml
These are mine LR144293 and LR144290. I got them from Allegro, Poland
I suspect that I have to upgrade my BCM in order to let the ADB appear or to
code the lights to the VIN.
, No luck yet. Check this out it might be helpful as I have seen your post where premium/ matrix was discussed.https://docs.google.com/spreadsheets..._Gy8-J/pubhtml
These are mine LR144293 and LR144290. I got them from Allegro, Poland
I suspect that I have to upgrade my BCM in order to let the ADB appear or to
code the lights to the VIN.
Mudding
Joined: Jan 2025
Posts: 103
Likes: 36
I did it finally. I will post the complete list that has to be modified soon. The Matrix lights are a must have upgrade. Special thanks for @Patrick and the GAP team.
3rd Gear
Joined: Aug 2025
Posts: 3
Likes: 0

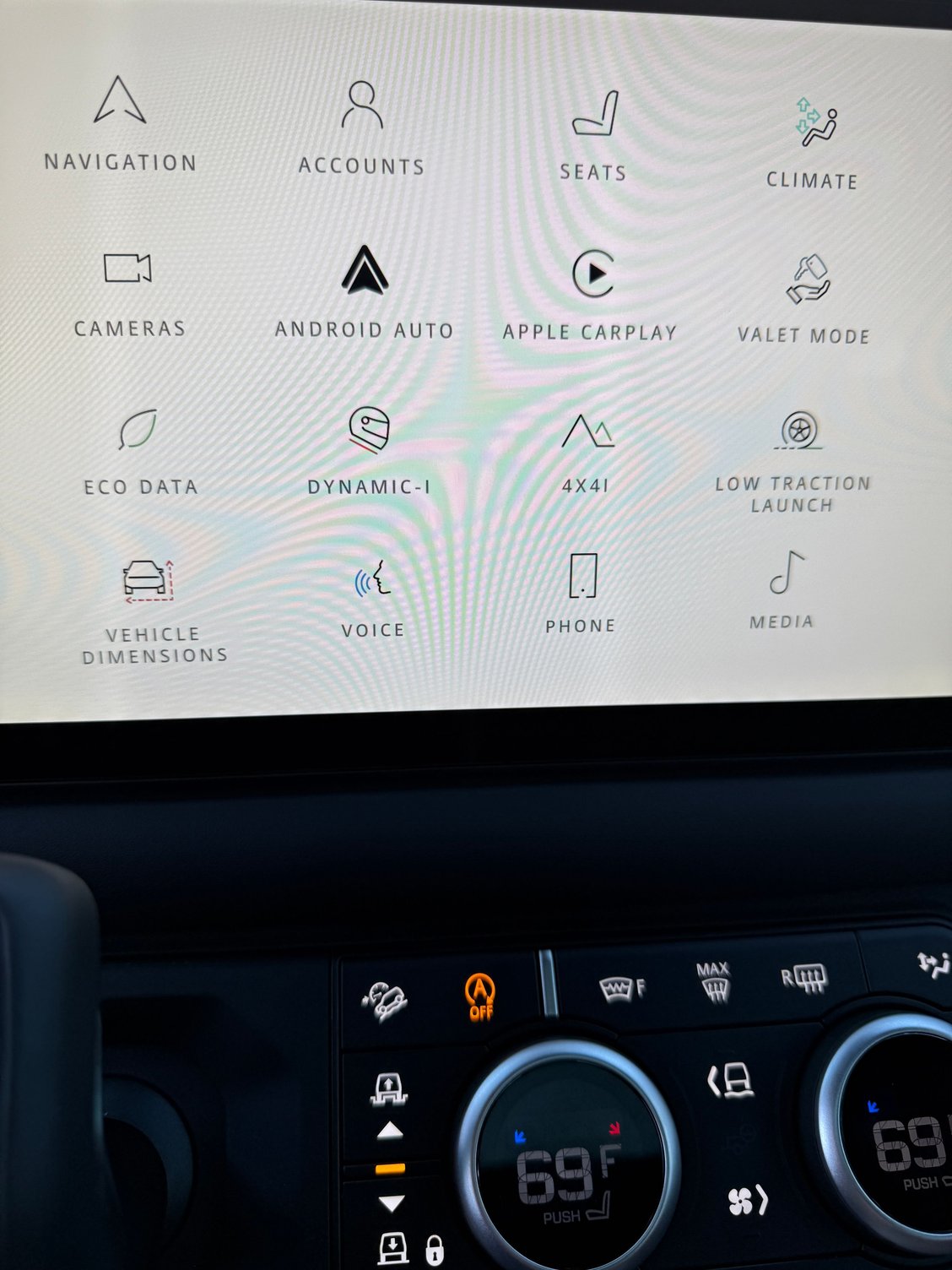

Doesn't work on my 2020 either. Everything else that I've tried has worked though...Dynamic, ACC, and FOB tailgate opening. I did get Park Assist to show up, but I get nothing once I'm in the screen/mode; just a steering wheel icon.
4wd Low
Joined: Jul 2025
Posts: 12
Likes: 8
Here is the list of changes that I had done to enable Matrix Headlights in my car. Everything is working as expected. In the menu - exterior lights - HD Adaptive Driving Beam toggle has appeared. Functioning as expected. I suspect not all of them are needed and I will update the list once it is verified.
- EUCD-014 Headlights, Type → Matrix LED AFS123/IHB
- EUCD-015 Headlights, Symmetry → Not supported
- EUCD-016 Dayrunning Light → Standard Dipped Light for Vehicles with Dedicated DRL
- EUCD-017 Dimmed Dipped Headlights → Not supported
- MultiCAN-459 MainBeamVoltCtrl → Disabled
- MultiCAN-459 DipBeamVoltCtrl → Disabled
- MultiCAN-459 FrntPosLmpVoltCtrl → Disabled
- MultiCAN-459 DRLVoltCtrl → Disabled
- MultiCAN-460 CornerLmpVoltCtrl →Disabled
- MultiCAN-460 FrntDirIndVoltCtrl → Disabled
- MultiCAN-460 FrntFogVoltCtrl → Disabled
- MultiCAN-460 AuxFrntLmpVoltCtrl → Disabled
- MultiCAN-468 FntDRLType → Incorporated DRL and Pos
- MultiCAN-471 MainBeamFdbkMech → BCM receives fault data via LIN
- MultiCAN-471 LowBeamFdbkMech → BCM receives fault data via LIN + Tell Tale
- MultiCAN-482 FntSdMkrDrvMech → Driven via BCM
- MultiCAN-485 HighBeamDrvMech → Driven via BCM
- MultiCAN-485 LowBeamDrvMech → Driven via BCM
- MultiCAN-636 AdaptDrvBeam → Enabled
- MultiCAN-636 Laser High Beam → Disabled
- MultiCAN-674 AFS123 → Enabled
- MultiCAN-679 HeadlightsVariant → Headlamp_Variant_High_A ( mine is NAS so A, other regions : B, C)
- MultiCAN-693 ADB Initialisation → Fitted
- MultiCAN-704 Adap Dry Beamseg → 4 Segments
- MultiCAN-706 Dyn Bending Light → Fitted
- MultiCAN-750 High Beam Lights → Not fitted
- MultiCAN-750 AHB System Status → AHBA Not fitted
- MultiCAN-814 Laser High Beam Menu → Independent Laser setting
- MultiCAN-834 HD Adapt Drive Beam → Not supported
