Crankshaft front pulley
That's the pulley attached to the water pump.
You would have been if you never noticed this! Good job catching it before it got worse. I noticed mine was pretty bad too when I was investigating a coolant leak. Turns out it was coming right out through the front of the water pump bearing. Not a very big deal to fix. Just buy a new pump online $150-250 and replace the water pump, it'll be good as new.
You would have been if you never noticed this! Good job catching it before it got worse. I noticed mine was pretty bad too when I was investigating a coolant leak. Turns out it was coming right out through the front of the water pump bearing. Not a very big deal to fix. Just buy a new pump online $150-250 and replace the water pump, it'll be good as new.
Thread Starter
|
Three Wheeling
Joined: Mar 2011
Posts: 54
Likes: 0
where can i find a diagram for all the pulleys and belts?
where can i find a diagram for all the pulleys and belts? So I can put them back correctly. Thanks!
That's the pulley attached to the water pump.
You would have been if you never noticed this! Good job catching it before it got worse. I noticed mine was pretty bad too when I was investigating a coolant leak. Turns out it was coming right out through the front of the water pump bearing. Not a very big deal to fix. Just buy a new pump online $150-250 and replace the water pump, it'll be good as new.
You would have been if you never noticed this! Good job catching it before it got worse. I noticed mine was pretty bad too when I was investigating a coolant leak. Turns out it was coming right out through the front of the water pump bearing. Not a very big deal to fix. Just buy a new pump online $150-250 and replace the water pump, it'll be good as new.
Go ahead and download this manual: http://www.landroverresource.com/doc...hop_Manual.pdf
It is an electronic version of the service manual the mechanics use on these cars. Very helpful.
As far as the belt routing, I just google image searched 'Discovery II belt routing diagram' on my iPhone while doing the repair and it went fine. Aside from what the book says, make sure to scrape off all of the old gasket (which took me nearly 2 hours, compared to ~30 minutes to do everything else). And slap a PVC pipe over your ratchet when getting the belt on or off. It will give you enough leverage to easily turn the tensioning pulley with one hand so you can slide the belt on with the other.
EDIT: do you happen to have a 928?
It is an electronic version of the service manual the mechanics use on these cars. Very helpful.
As far as the belt routing, I just google image searched 'Discovery II belt routing diagram' on my iPhone while doing the repair and it went fine. Aside from what the book says, make sure to scrape off all of the old gasket (which took me nearly 2 hours, compared to ~30 minutes to do everything else). And slap a PVC pipe over your ratchet when getting the belt on or off. It will give you enough leverage to easily turn the tensioning pulley with one hand so you can slide the belt on with the other.
EDIT: do you happen to have a 928?
Thread Starter
|
Three Wheeling
Joined: Mar 2011
Posts: 54
Likes: 0
thanks a lot! I sold my 928 long ago, I have a 944 and I modified it with air suspension!
Go ahead and download this manual: http://www.landroverresource.com/doc...hop_Manual.pdf
It is an electronic version of the service manual the mechanics use on these cars. Very helpful.
As far as the belt routing, I just google image searched 'Discovery II belt routing diagram' on my iPhone while doing the repair and it went fine. Aside from what the book says, make sure to scrape off all of the old gasket (which took me nearly 2 hours, compared to ~30 minutes to do everything else). And slap a PVC pipe over your ratchet when getting the belt on or off. It will give you enough leverage to easily turn the tensioning pulley with one hand so you can slide the belt on with the other.
EDIT: do you happen to have a 928?
It is an electronic version of the service manual the mechanics use on these cars. Very helpful.
As far as the belt routing, I just google image searched 'Discovery II belt routing diagram' on my iPhone while doing the repair and it went fine. Aside from what the book says, make sure to scrape off all of the old gasket (which took me nearly 2 hours, compared to ~30 minutes to do everything else). And slap a PVC pipe over your ratchet when getting the belt on or off. It will give you enough leverage to easily turn the tensioning pulley with one hand so you can slide the belt on with the other.
EDIT: do you happen to have a 928?
Super Moderator
Joined: Jan 2011
Posts: 16,322
Likes: 88
From: Savannah Georgia

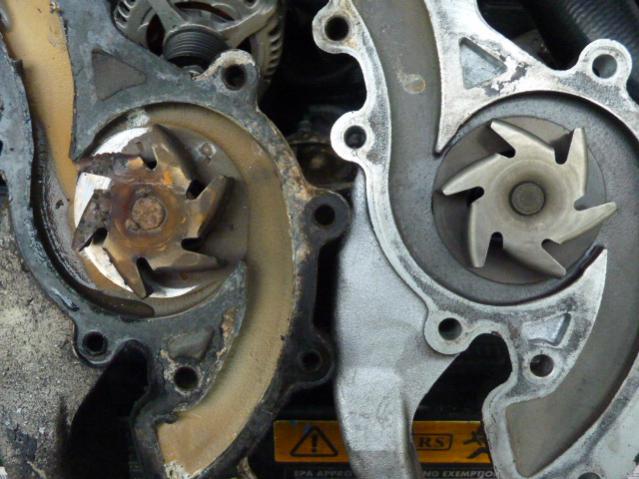

1. Pump will look like this inside. When it wobbles the small clearance makes it eat metal.
2. About an hour to do, plus time to remove fan clutch.
3. Be sure bolts go back in same holes, various lengths.
4. Belt route attached.
2. About an hour to do, plus time to remove fan clutch.
3. Be sure bolts go back in same holes, various lengths.
4. Belt route attached.
