2005 LR3 cylinder location

I need to know where cylinder 1 and 2 are located on my 2005 LR3 SE V8. I am changing the spark plugs and these cylinder coils need to be checked.

Mar 16, 2018 | 08:03 AM

abran

Baja

Joined: Aug 2013

Posts: 6,902

Likes: 791

From: Huntington Beach CA

#1 is first cylinder (front of vehicle) on passenger side.

#2 is the opposite.

Mar 16, 2018 | 09:30 AM

Chrys

Thread Starter

4th Gear

Joined: Mar 2018

Posts: 4

Likes: 0

Quote:

Originally Posted by abran

#1 is first cylinder (front of vehicle) on passenger side.

#2 is the opposite.

Thanks.

Apr 5, 2018 | 08:10 AM

SoCal Rob

Three Wheeling

Joined: Sep 2013

Posts: 87

Likes: 10

From: Laguna Niguel, California

I made this to identify cylinders when I was diagnosing a misfire issue.i keep it in my phone, just in case...

-Rob

May 30, 2022 | 11:42 PM

RobPit

5th Gear

Joined: Jan 2021

Posts: 5

Likes: 2

From: Midvale, Utah

Quote:

Originally Posted by abran

#1 is first cylinder (front of vehicle) on passenger side.

#2 is the opposite.

Right hand drive (UK) or left hand drive (USA) vehicle?

May 31, 2022 | 09:15 AM

SoCal Rob

Three Wheeling

Joined: Sep 2013

Posts: 87

Likes: 10

From: Laguna Niguel, California

Quote:

Originally Posted by RobPit

Right hand drive (UK) or left hand drive (USA) vehicle?

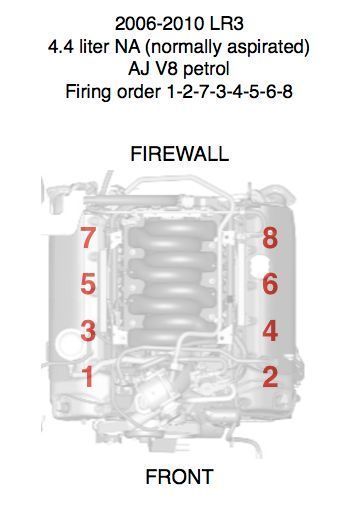

I included a graphic which shows the numbered cylinders in a top-down view with the bumper/front at the bottom of the graphic and the firewall/passenger compartment at the top. If you stand in front of the vehicle and look towards the engine then you can see which cylinder is which by holding the graphic in front of you with the words right-side-up.
